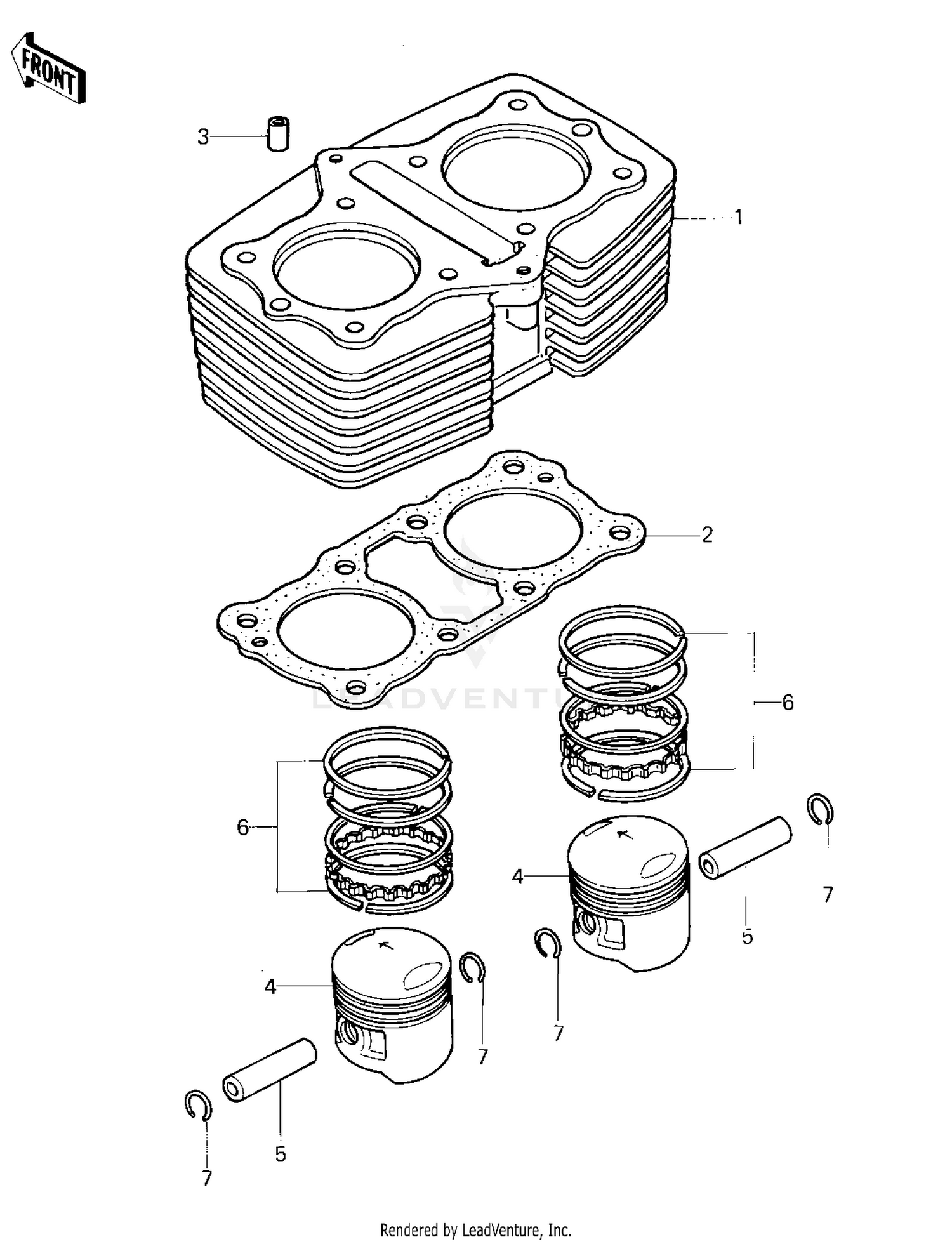

CYLINDER/PISTONS
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11005-1002 | CYLINDER Price: $639.43 |
| 2 | 11060-1519 | GASKET,CYLINDER BASE This part replaces 11009-1176. Price: $23.11 |
| 3 | 92043-1037 | PIN,DOWEL,10X14 Price: $0.74 |
| 4 | 13001-1001 | PISTON,STD Price: $109.63 |
| 4 | 13027-1008 | PISTON,0.040",O/S Price: $109.63 |
| 4 | 13029-1006 | PISTON,0.020",O/S Price: $95.83 |
| 5 | 13002-1001 | PIN-PISTON Price: $6.22 |
| 6 | 13008-5019 | RING SET,PISTON,STD Price: $93.21 |
| 6 | 13024-5010 | RING SET,0.040",O.S. Price: $93.21 |
| 6 | 13025-5010 | RING SET,0.020",O.S. Price: $81.94 |
