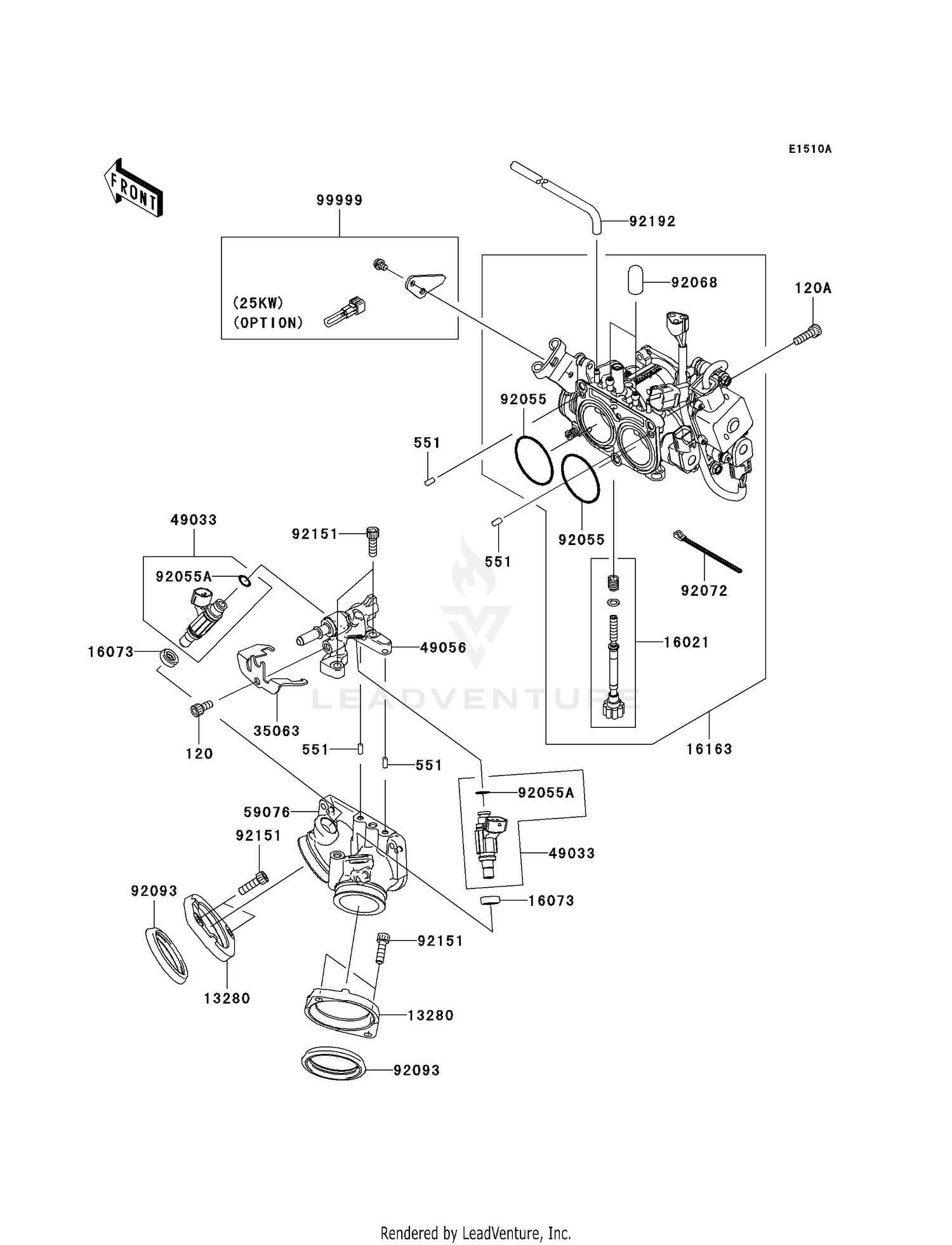

THROTTLE (C8F/C9FA)
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 120 | 120CA0612 | BOLT-SOCKET,6X12 Price: $1.71 |
| 120A | 120CA0620 | BOLT-SOCKET,6X20 Price: $1.77 |
| 551 | 551R0408 | PIN-DOWEL Price: $5.38 |
| 13280 | 13280-1154 | HOLDER Price: $23.79 |
| 16021 | 16021-0016 | SCREW-THROTTLE STOP Price: $111.90 |
| 16073 | 16073-3707 | INSULATOR Price: $6.18 |
| 16163 | 16163-0114 | THROTTLE-ASSY,TTK34 Price: $854.62 |
| 35063 | 35063-0240 | STAY Price: $7.54 |
| 49033 | 49033-0011 | NOZZLE-INJECTION Price: $92.32 |
| 49056 | 49056-0018 | PIPE-INJECTION Price: $120.63 |
| 59076 | 59076-0003 | MANIFOLD-INTAKE Price: $158.79 |
| 92055 | 92055-0118 | RING-O Price: $16.97 |
| 92055A | 92055-1622 | RING-O,INJECTION NOZZLE Price: $1.95 |
| 92068 | 92068-006 | PLUG,12X25 Price: $4.26 |
| 92072 | 92072-0012 | BAND,SUB-HARNESS Price: $5.00 |
| 92093 | 92093-0072 | SEAL Price: $20.51 |
| 92151 | 92151-3774 | BOLT,SOCKET,6X20 Price: $1.83 |
| 92192 | 92192-0308 | TUBE,SENSOR-THROBO Price: $7.60 |
