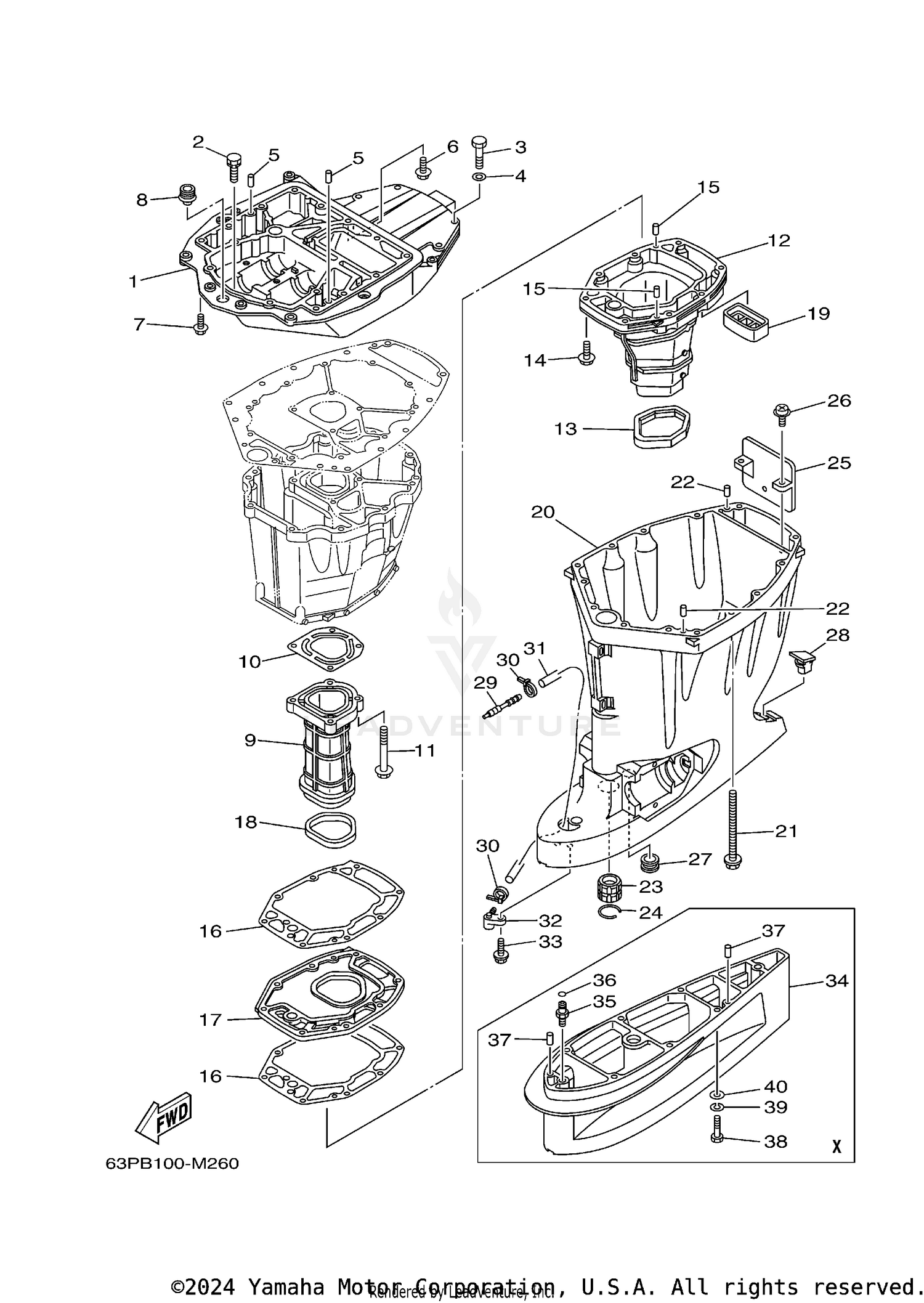

| Ref | Part Number | Description |
|---|
| 1 |
63P-41137-07-CA |
GUIDE, EXHAUST This part replaces 63P-41137-03-CA. Price: $672.65 |
| 2 |
90119-08182-00 |
BOLT, WITH WASHER This part replaces 90119-08102-00. Price: $5.00 |
| 3 |
97075-10045-00 |
BOLT Price: $27.05 |
| 4 |
92990-10600-00 |
WASHER, PLATE This part replaces 92995-10600-00. Price: $3.00 |
| 5 |
93608-16M16-00 |
PIN, DOWEL Price: $2.85 |
| 6 |
90119-08189-00 |
BOLT, WITH WASHER This part replaces 90119-08M58-00. Price: $5.50 |
| 7 |
97E75-10535-00 |
BOLT, HEXAGON W/W This part replaces 97575-10535-00. Price: $11.10 |
| 8 |
6E5-42724-01-00 |
GROMMET This part replaces 6E5-42724-00-00. Price: $14.65 |
| 9 |
63P-41131-02-00 |
MANIFOLD, EXT. 1 This part replaces 63P-41131-01-9S. Price: $277.90 |
| 10 |
63P-41133-A0-00 |
GASKET, EXHAUST MANIFOLD 1 Price: $12.15 |
| 11 |
97E75-08560-00 |
BOLT, HEXAGON W/W This part replaces 97575-08560-00. Price: $7.15 |
| 12 |
63P-14711-02-00 |
MUFFLER 1 This part replaces 63P-14711-01-9S. Price: $416.65 |
| 13 |
69J-45123-00-00 |
GASKET, MUFFLER Price: $4.40 |
| 14 |
97E75-08535-00 |
BOLT, HEXAGON W/W This part replaces 97575-08535-00. Price: $3.75 |
| 15 |
93606-19M23-00 |
PIN, DOWEL Price: $2.55 |
| 16 |
63P-41134-A1-00 |
GASKET, EXHAUST MANIFOLD Price: $21.65 |
| 17 |
63P-45181-02-00 |
PLATE This part replaces 63P-45181-01-9S. Price: $201.10 |
| 18 |
63P-41138-00-00 |
SEAL, EXT. 1 Price: $15.95 |
| 20 |
63P-45111-00-8D |
CASING, UPPER Price: $1,043.80 |
| 21 |
90119-10007-00 |
BOLT, WITH WASHER Price: $29.25 |
| 22 |
93608-16M16-00 |
PIN, DOWEL Price: $2.85 |
| 23 |
6E5-45318-00-00 |
BUSHING, DRIVE SHAFT Price: $78.60 |
| 24 |
93420-36M01-00 |
CIRCLIP Price: $11.10 |
| 25 |
69J-14624-01-00 |
COVER, EXHAUST Price: $17.10 |
| 26 |
97985-06216-00 |
SCREW, WITH WASHER This part replaces 97980-06216-00. Price: $3.20 |
| 28 |
6C5-45155-02-00 |
CAP This part replaces 6C5-45155-00-00. Price: $10.95 |
| 29 |
6E5-83558-00-00 |
END, NIPPLE Price: $11.40 |
| 30 |
90465-10098-00 |
CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 31 |
90445-072G8-00 |
HOSE This part replaces 90445-070F1-00. Price: $32.99 |
| 32 |
63P-45379-00-00 |
NIPPLE, HOSE Price: $7.40 |
| 33 |
90119-06M48-00 |
BOLT, WITH WASHER This part replaces 90119-06M18-00. Price: $6.40 |
