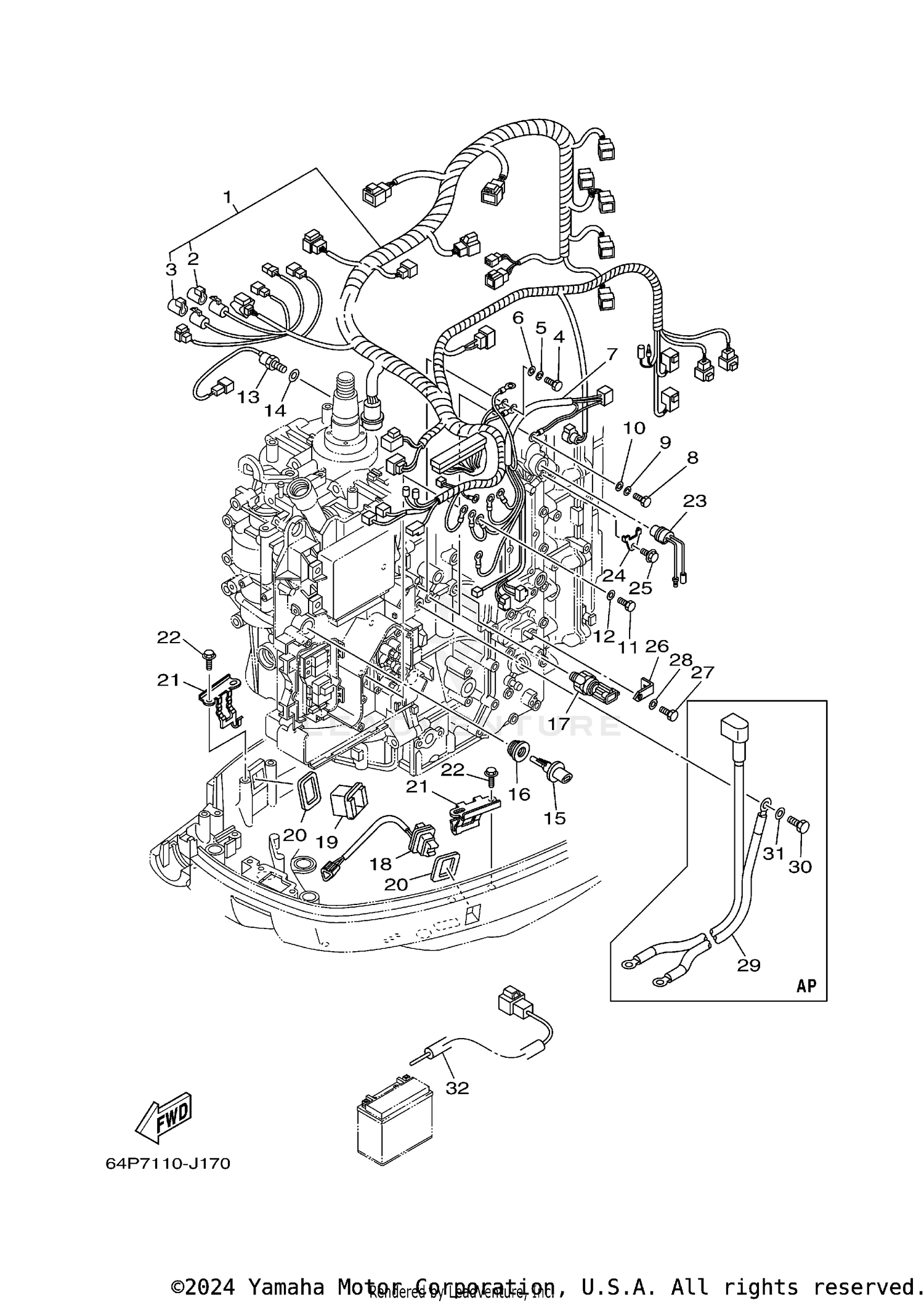

| Ref | Part Number | Description |
|---|
| 1 |
63P-82590-31-00 |
WIRE HARNESS ASSY This part replaces 63P-82590-30-00. Price: $1,067.30 |
| 2 |
6P2-82582-00-00 |
CAP 1 (FEMALE) Price: $6.15 |
| 3 |
6P2-82582-10-00 |
CAP 1 (MALE) Price: $7.40 |
| 4 |
97080-06020-00 |
BOLT This part replaces 97095-06020-00. Price: $4.50 |
| 5 |
92995-06100-00 |
WASHER, SPRING Price: $3.45 |
| 6 |
92990-06600-00 |
WASHER, PLATE This part replaces 92995-06600-00. Price: $2.85 |
| 7 |
63P-8259M-00-00 |
WIRE HARNESS ASSY 2 Price: $227.20 |
| 8 |
97080-06020-00 |
BOLT This part replaces 97095-06020-00. Price: $4.50 |
| 9 |
92995-06100-00 |
WASHER, SPRING Price: $3.45 |
| 10 |
92990-06600-00 |
WASHER, PLATE This part replaces 92995-06600-00. Price: $2.85 |
| 11 |
97080-06012-00 |
BOLT This part replaces 97095-06012-00. Price: $2.99 |
| 12 |
92990-06600-00 |
WASHER, PLATE This part replaces 92995-06600-00. Price: $2.85 |
| 13 |
61A-85790-01-00 |
THERMOSENSOR ASSY This part replaces 61A-85790-00-00. Price: $144.10 |
| 14 |
92990-10600-00 |
WASHER, PLATE Price: $3.00 |
| 15 |
63P-85886-00-00 |
SENSOR, AIR TEMPERATURE Price: $45.95 |
| 16 |
63P-14435-00-00 |
GROMMET Price: $7.40 |
| 17 |
6AW-83651-01-00 |
SENDER, OIL PRESSURE This part replaces 6AW-83651-00-00. Price: $363.10 |
| 18 |
69J-82563-01-00 |
TRIM & TILT SWITCH ASSY This part replaces 69J-82563-00-00. Price: $63.90 |
| 19 |
69J-42723-01-00 |
COVER, BOTTOM This part replaces 69J-42723-00-8D. Price: $34.15 |
| 20 |
69J-82587-01-00 |
GASKET This part replaces 69J-82587-00-00. Price: $5.55 |
| 21 |
63P-83614-01-00 |
BRACKET Price: $22.80 |
| 22 |
90109-06M86-00 |
BOLT Price: $1.81 |
| 23 |
6P2-82560-01-00 |
THERMO SWITCH ASSY Price: $58.00 |
| 24 |
6E9-82588-00-00 |
PLATE Price: $15.80 |
| 25 |
90109-06M80-00 |
BOLT Price: $2.95 |
| 26 |
63P-8366P-01-00 |
BRACKET 4 Price: $8.10 |
| 27 |
97080-06012-00 |
BOLT This part replaces 97095-06012-00. Price: $2.99 |
| 28 |
92990-06600-00 |
WASHER, PLATE This part replaces 92995-06600-00. Price: $2.85 |
