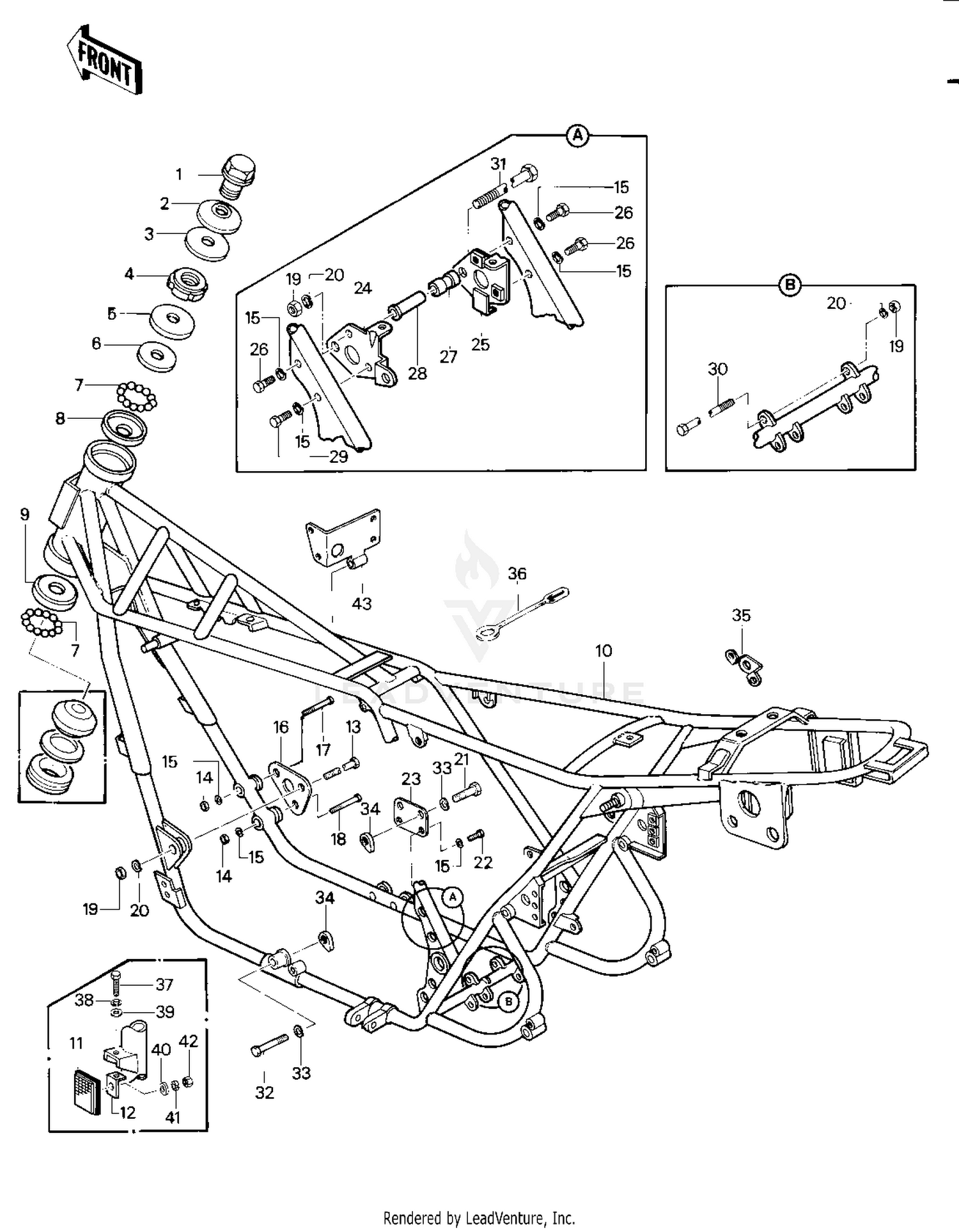

| Ref | Part Number | Description |
|---|
| 1 |
92007-031 |
BOLT,STEERG STEM HEAD Price: $29.84 |
| 2 |
92200-1273 |
WASHER,16X41X4.5 This part replaces 92022-230. Price: $11.93 |
| 3 |
46100-003 |
WASHER,WAVE Price: $11.39 |
| 4 |
92090-007 |
NUT,30MM Price: $11.71 |
| 5 |
46098-016 |
CAP,STEERING STEM Price: $6.51 |
| 6 |
92048-0032 |
RACE,STEERING STEM BEARING This part replaces 92047-011. Price: $14.60 |
| 7 |
600A0800 |
BALL-STEEL,1/4 Price: $0.62 |
| 8 |
92048-0036 |
RACE,STEERING STEM BEARING This part replaces 92048-006. Price: $11.61 |
| 9 |
92048-0037 |
RACE,STEERING STEM BEARING This part replaces 92048-008. Price: $16.02 |
| 10 |
32002-4002 |
FRAME Price: $1,013.99 |
| 10 |
32002-4003 |
FRAME Price: $1,035.58 |
| 10 |
32002-4007 |
FRAME Price: $947.69 |
| 11 |
28012-1003 |
REFLECTOR-REFLEX Price: $22.09 |
| 12 |
11034-1540 |
BRACKET,REFLEX REFLET Price: $11.84 |
| 13 |
92091-022 |
BOLT,ENGINE MOUNTING Price: $36.07 |
| 14 |
317AA0800 |
NUT-HEX-SMALL,8MM This part replaces 311B0800. Price: $0.68 |
| 15 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 16 |
32030-025 |
PLATE,ENG MOUNT FRONT Price: $21.66 |
| 17 |
92001-1397 |
BOLT-8X63 Price: $5.43 |
| 18 |
110G0859 |
BOLT,HEX HEAD,8X59 Price: $1.61 |
| 18 |
92001-1581 |
BOLT,FLANGED,8X60 Price: $5.14 |
| 19 |
92015-1429 |
NUT,LOCK,10MM Price: $6.88 |
| 19 |
92210-1184 |
NUT,LOCK,10MM This part replaces 92019-021. Price: $6.11 |
| 20 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 21 |
92001-1265 |
BOLT,HEX HEAD,12X70 Price: $9.81 |
| 22 |
115BA0818 |
BOLT-SMALL-UPSET,8X18 This part replaces 115G0818. Price: $5.61 |
| 23 |
32029-1014 |
PLATE,FT ENG MNT LWR Price: $15.47 |
| 24 |
32029-1023 |
BRACKET,REAR ENGINE Price: $14.65 |
| 25 |
32029-1024 |
BRACKET,REAR ENGINE Price: $15.73 |
| 26 |
92002-1838 |
BOLT,FLANGED,8X40 This part replaces 92001-1578. Price: $8.19 |
| 27 |
92027-160 |
COLLAR,ENG MOUNTING Price: $13.33 |
| 28 |
92027-159 |
COLLAR,ENG MOUNTING Price: $29.02 |
| 29 |
92001-1577 |
BOLT,FLANGED,8X35 Price: $5.00 |
| 30 |
92003-099 |
BOLT,ENGINE MOUNTING Price: $34.88 |
| 32 |
92001-1262 |
BOLT,HEX HEAD,12X55 Price: $11.66 |
| 33 |
461DA1200 |
WASHER-SPRING,12MM This part replaces 461F1200. Price: $1.03 |
| 34 |
92016-045 |
NUT,12MM Price: $25.59 |
| 35 |
32049-101 |
BRACKET,SIDE COV,R.H Price: $5.32 |
| 36 |
92037-134 |
CLAMP,OVER FLOW PIPE Price: $11.50 |
| 37 |
112AA0614 |
BOLT-UPSET This part replaces 112B0614. Price: $0.49 |
| 38 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 39 |
411AA0600 |
WASHER-PLAIN,6MM This part replaces 411B0600. Price: $2.92 |
| 40 |
410AA0500 |
WASHER-PLAIN-SMALL This part replaces 411B0500. Price: $0.47 |
| 41 |
461DA0500 |
WASHER-SPRING,5MM This part replaces 461F0500. Price: $0.71 |
| 42 |
311AA0500 |
NUT-HEX,5MM This part replaces 311B0500. Price: $0.47 |
