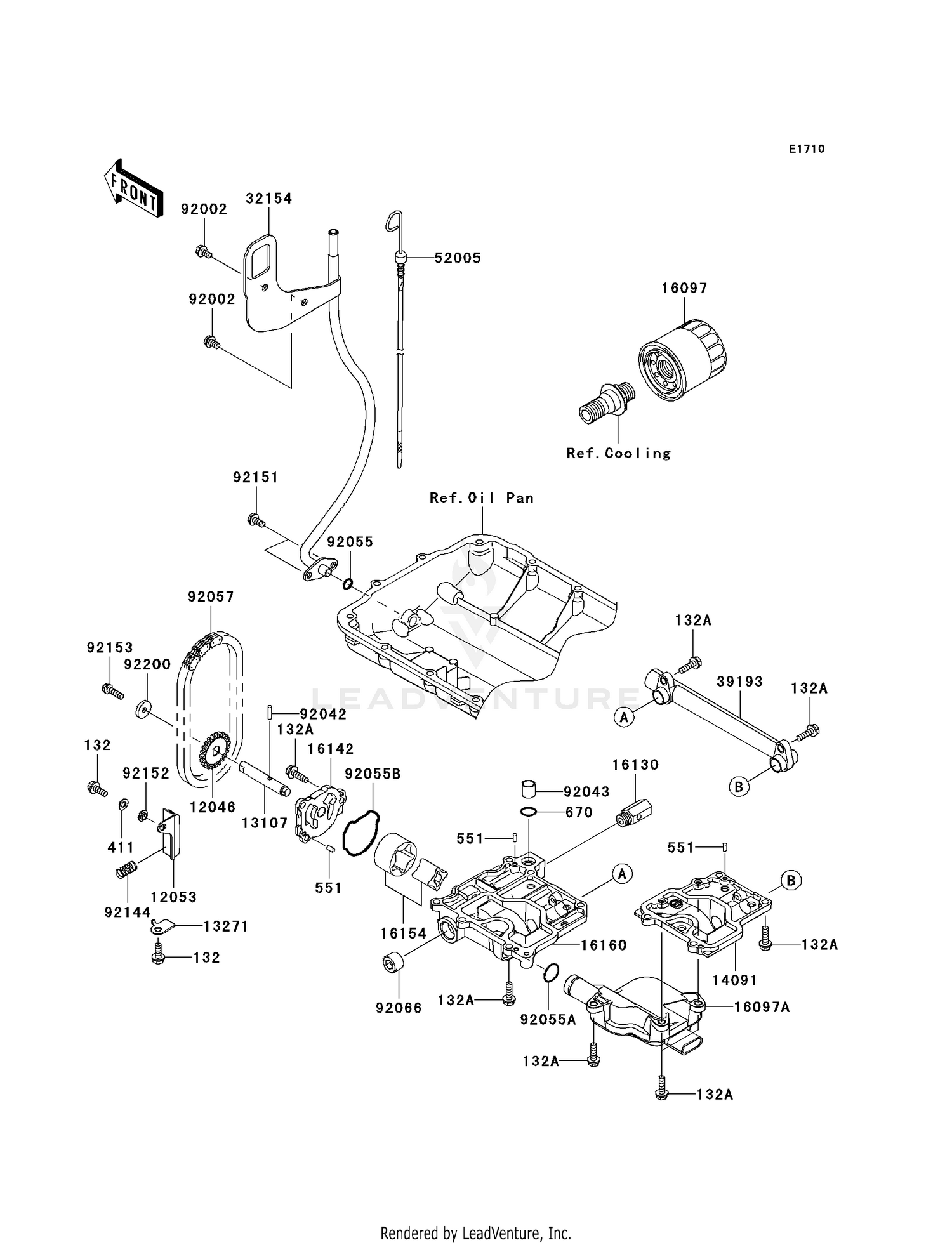

| Ref | Part Number | Description |
|---|
| 132 |
132BD0616 |
BOLT-FLANGED-SMALL,6X16 Price: $4.12 |
| 132A |
132BD0620 |
BOLT-FLANGED-SMALL,6X20 Price: $4.12 |
| 411 |
411S0600 |
WASHER-PLAIN,6MM Price: $2.06 |
| 551 |
551R0408 |
PIN-DOWEL Price: $5.38 |
| 670 |
670D2014 |
O RING,14MM Price: $5.52 |
| 12046 |
12046-3703 |
SPROCKET,23T Price: $14.37 |
| 12053 |
12053-3704 |
GUIDE-CHAIN Price: $17.48 |
| 13107 |
13107-3801 |
SHAFT Price: $29.35 |
| 13271 |
13271-3850 |
PLATE Price: $4.45 |
| 14091 |
14091-3767 |
COVER Price: $77.11 |
| 16097 |
16097-0007 |
FILTER-ASSY-OIL This part replaces 16097-0003. Price: $15.48 |
| 16097A |
16097-3702 |
FILTER-ASSY-OIL Price: $51.51 |
| 16130 |
16130-3701 |
VALVE-ASSY-RELIEF Price: $46.98 |
| 16142 |
16142-3703 |
COVER-PUMP Price: $37.56 |
| 16154 |
16154-1124 |
ROTOR-PUMP Price: $70.09 |
| 16160 |
16160-0705 |
BODY,OIL PUMP This part replaces 16160-3748. Price: $129.40 |
| 32154 |
32154-3721 |
PIPE,OIL LEVEL Price: $181.98 |
| 39193 |
39193-3702 |
PIPE-OIL Price: $43.12 |
| 52005 |
52005-3710 |
GAUGE,OIL LEVEL Price: $66.67 |
| 92002 |
92002-3763 |
BOLT,6X12 Price: $4.69 |
| 92042 |
92042-014 |
PIN,DOWEL,4X15.8 Price: $0.43 |
| 92043 |
92043-1279 |
PIN,11.5X14X14 Price: $5.00 |
| 92055 |
92055-1150 |
RING-O,9.8X2.4 Price: $8.10 |
| 92055A |
92055-1332 |
RING-O,19.8X1.9 Price: $4.69 |
| 92055B |
92055-3764 |
RING-O Price: $6.57 |
| 92057 |
92057-3713 |
CHAIN,OIL PUMP,98XRH2010-52L Price: $28.19 |
| 92066 |
92066-0002 |
PLUG,PT1/2X12.5 Price: $8.98 |
| 92144 |
92144-1551 |
SPRING Price: $4.09 |
| 92151 |
92151-3788 |
BOLT,6X14 Price: $2.34 |
| 92152 |
92152-3737 |
COLLAR,GUIDE Price: $8.98 |
| 92153 |
92153-3734 |
BOLT,FLANGED-SMALL,6X Price: $4.13 |
