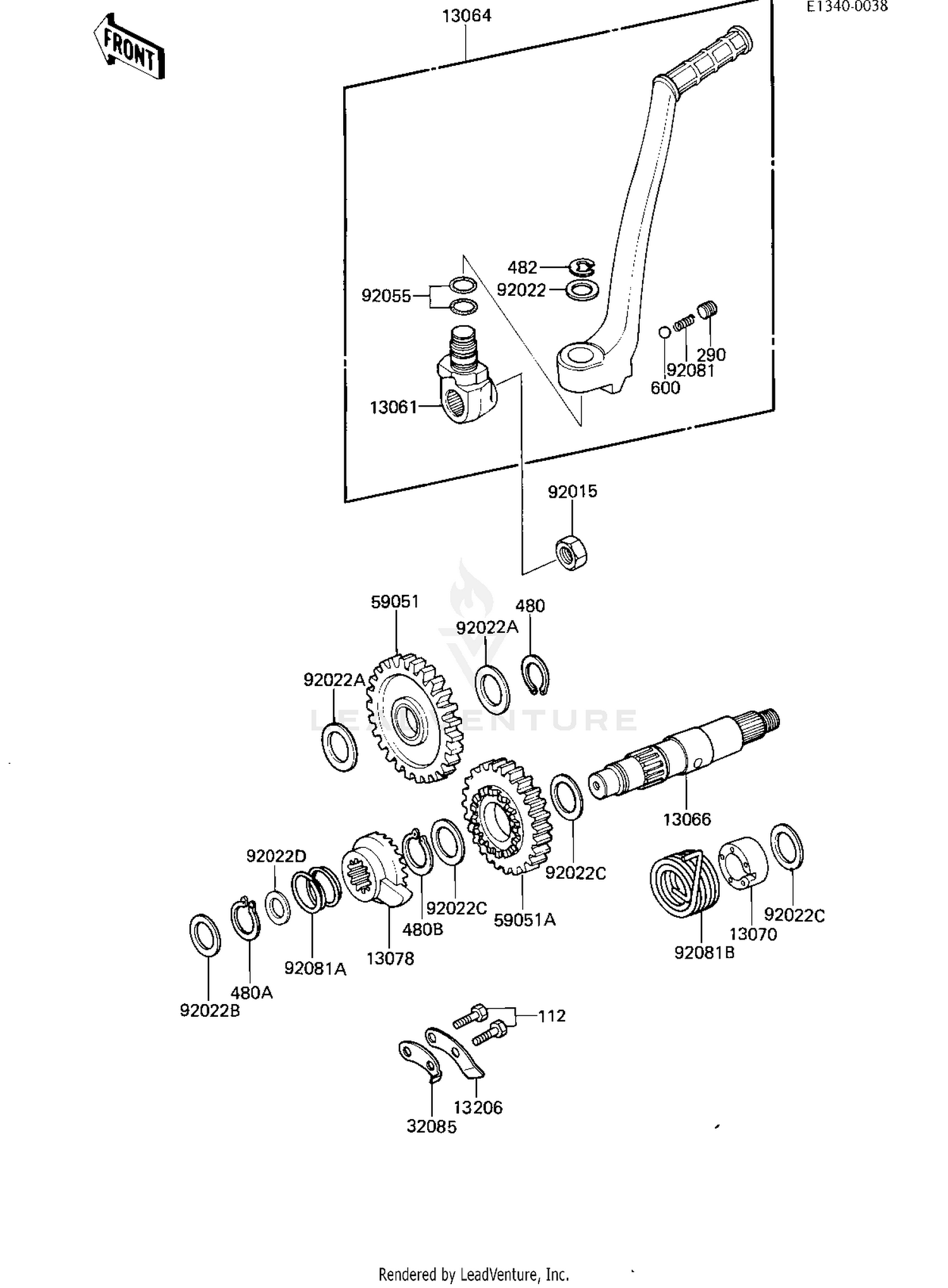

| Ref | Part Number | Description |
|---|
| 112 |
112BA0618 |
BOLT-UPSET This part replaces 112G0618. Price: $1.03 |
| 290 |
290Q0808 |
SCREW,8X8 Price: $4.78 |
| 480 |
480J1500 |
CIRCLIP-TYPE-C,15MM Price: $2.31 |
| 480A |
480J1600 |
CIRCLIP-TYPE-C,16MM Price: $4.31 |
| 480B |
480J1800 |
CIRCLIP-TYPE-C,18MM Price: $1.28 |
| 482 |
482K0100 |
CIR CLIP Price: $0.70 |
| 13061 |
13061-1067 |
BOSS,KICK PEDAL Price: $52.32 |
| 13064 |
13064-1128 |
LEVER-ASSY-KICK,PEDAL Price: $159.95 |
| 13066 |
13066-1026 |
SHAFT-KICK Price: $119.63 |
| 13070 |
13070-1063 |
GUIDE,KICK SPRING Price: $21.09 |
| 13078 |
13078-1061 |
RATCHET Price: $82.60 |
| 13206 |
13206-1061 |
GUIDE-KICK This part replaces 13206-1059. Price: $11.80 |
| 32085 |
32085-1016 |
STOPPER,KICKSTARTER Price: $9.58 |
| 59051 |
59051-1309 |
GEAR-SPUR,KICK,30T This part replaces 59051-1041. Price: $97.19 |
| 59051A |
59051-1050 |
GEAR-SPUR,KICKSTARTER Price: $142.67 |
| 92015 |
92015-1001 |
NUT,12MM Price: $6.34 |
| 92022 |
92022-1019 |
WASHER,PLAIN Price: $5.23 |
| 92022A |
92022-1045 |
WASHER,PLAIN Price: $5.59 |
| 92022B |
92022-269 |
WASHER,PLAIN Price: $1.25 |
| 92022C |
92022-271 |
WASHER,18.3X22X0.5 Price: $5.52 |
| 92022D |
92022-315 |
WASHER,16.8X22X0.5 Price: $6.22 |
| 92055 |
92055-061 |
O RING Price: $4.78 |
| 92081 |
92081-020 |
SPRING,KICK PEDAL Price: $4.26 |
| 92081A |
92081-122 |
SPRING,RATCHET Price: $8.79 |
| 92081B |
92081-1515 |
SPRING,KICKSTARTER Price: $21.90 |
