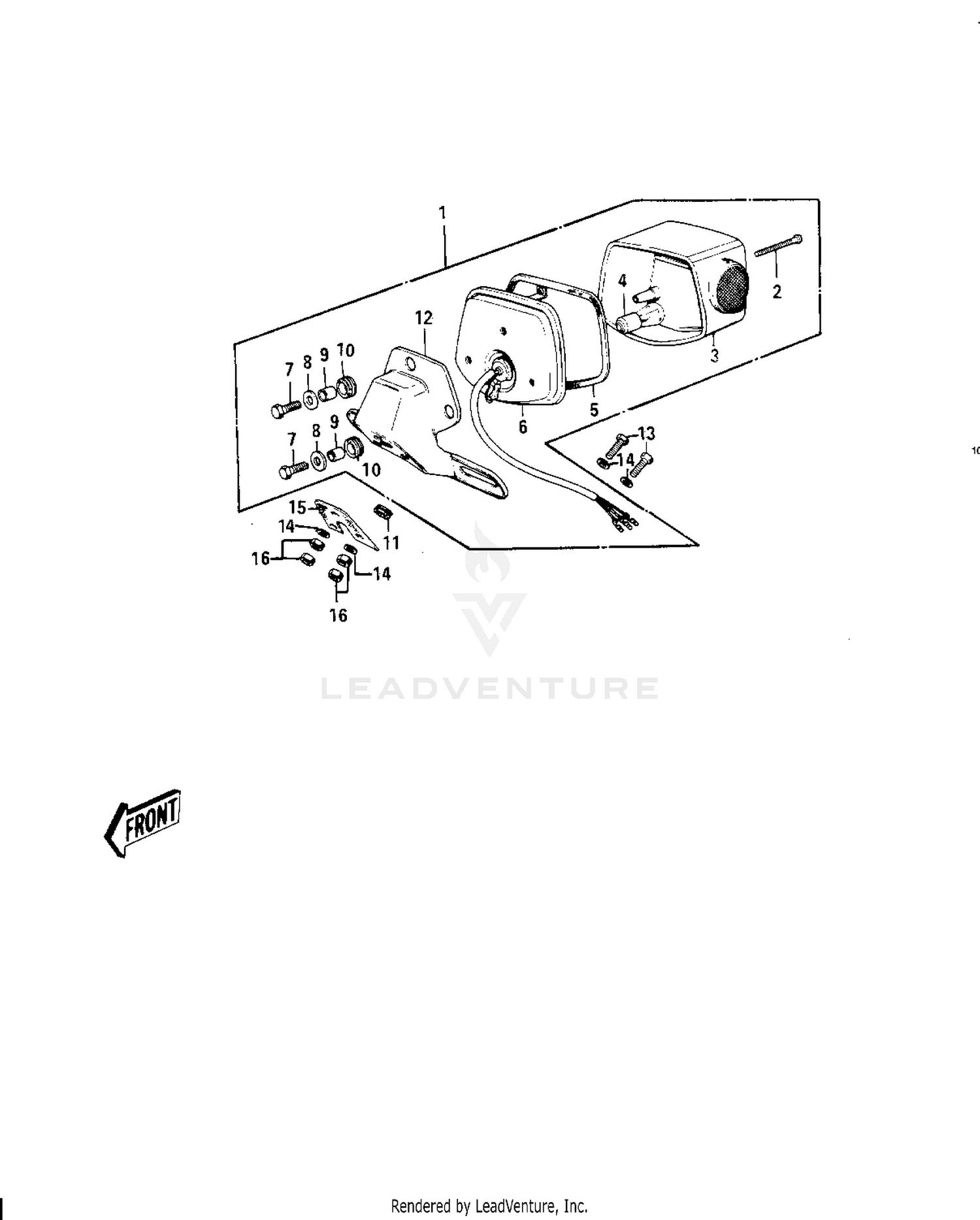

| Ref | Part Number | Description |
|---|
| 1 |
23024-044 |
LAMP ASSY,TAIL Price: $129.98 |
| 2 |
220R0455 |
SCREW Price: $5.03 |
| 3 |
23026-028 |
LENS,TAIL LAMP Price: $56.62 |
| 4 |
92069-074 |
BULB,60-32/3CP Price: $5.75 |
| 5 |
23028-019 |
GASKET,TAIL LAMP LENS Price: $9.80 |
| 6 |
23027-1018 |
BODY COMP TAIL LAMP Price: $71.88 |
| 7 |
112BA0620 |
BOLT-UPSET This part replaces 112G0620. Price: $2.28 |
| 8 |
92022-193 |
WASHER,6.5X20X1.6,WHITE Price: $5.33 |
| 9 |
92027-129 |
COLLAR,6.8X10X8.5 Price: $5.00 |
| 10 |
92075-076 |
DAMPER RUBBER Price: $4.78 |
| 11 |
92071-019 |
GROMMET HARNESS 10MM Price: $3.89 |
| 12 |
23036-035 |
BRACKET,TAIL LAMP Price: $90.14 |
| 13 |
112BA0630 |
BOLT-UPSET This part replaces 112G0630. Price: $1.38 |
| 14 |
92200-0283 |
WASHER,6.5X20X1.6 This part replaces 92022-125. Price: $1.40 |
| 15 |
35039-005 |
DAMPER-TAIL LAMP SHCK Price: $10.53 |
