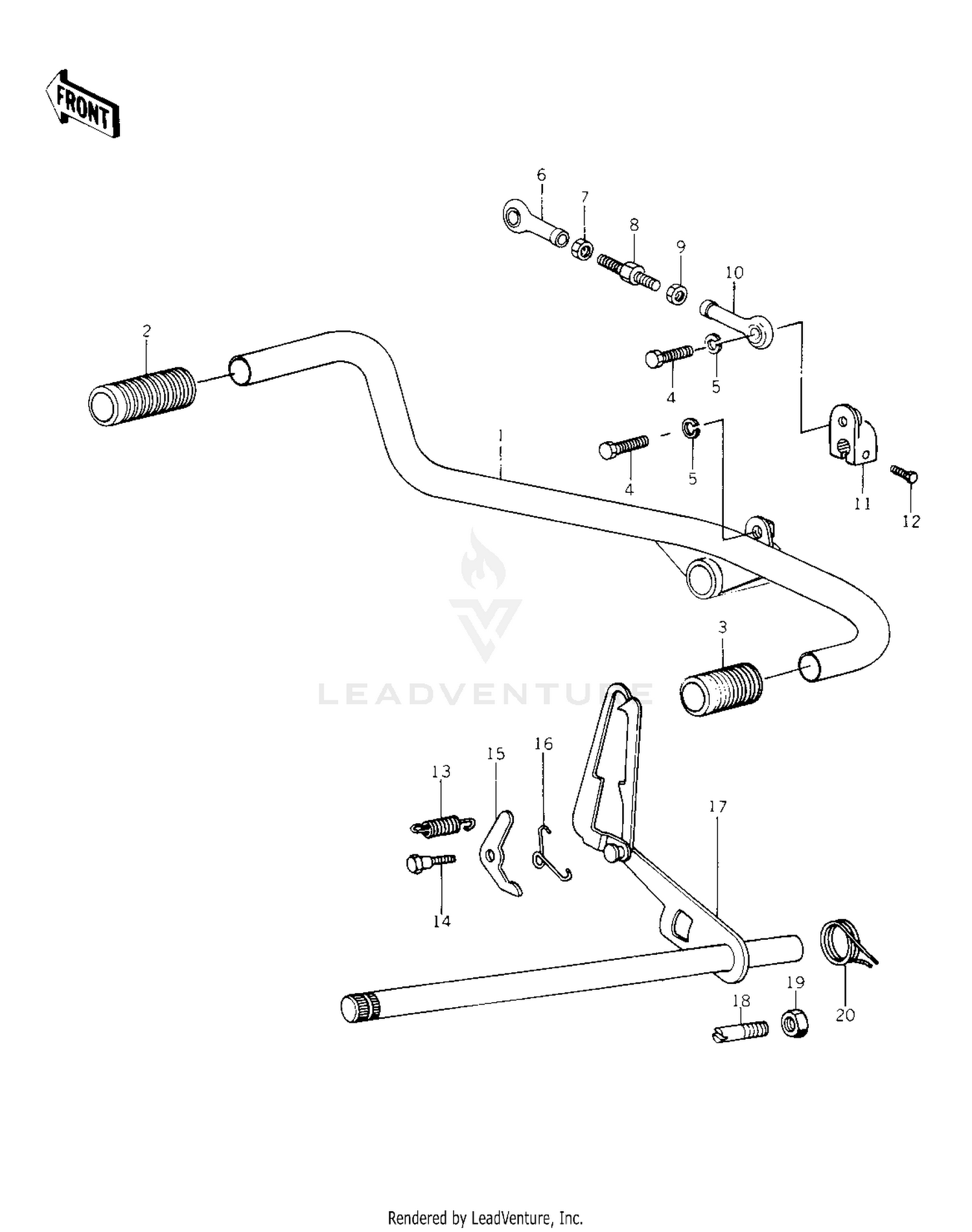

| Ref | Part Number | Description |
|---|
| 1 |
13242-4001 |
PEDAL,GEAR CHANGE This part replaces 13242-1004. Price: $100.92 |
| 2 |
92161-2388 |
DAMPER,KICK PEDAL This part replaces 13063-004. Price: $10.94 |
| 3 |
92075-1021 |
DAMPER RUBB,GEAR CHNG Price: $13.89 |
| 4 |
115BA0825 |
BOLT-SMALL-UPSET,8X25 This part replaces 115G0825. Price: $5.42 |
| 5 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 6 |
39112-1004 |
ROD END,TIE LH FEMALE Price: $25.22 |
| 7 |
92015-1006 |
NUT,LH THREAD Price: $1.30 |
| 8 |
92001-1038 |
BOLT,GEAR CHG LINKAGE Price: $13.68 |
| 9 |
92015-1005 |
NUT,RH THREAD Price: $1.03 |
| 10 |
39112-1003 |
ROD END,TIE RH FEMALE Price: $25.22 |
| 11 |
13156-1007 |
LEVER,CHANGE Price: $43.02 |
| 12 |
112BA0620 |
BOLT-UPSET This part replaces 112G0620. Price: $2.28 |
| 13 |
92081-051 |
SPRING CHNG DRUM LEV Price: $5.29 |
| 15 |
13168-024 |
LEVER,GEAR CHNG DRUM Price: $7.84 |
| 16 |
92083-018 |
SPRING,KICK PAWL Price: $9.80 |
| 17 |
13161-029 |
LEVER ASSY GEAR CHNG Price: $146.54 |
| 18 |
92043-057 |
PIN CHANGE PEDAL SPRG Price: $8.72 |
| 19 |
318AA0800 |
NUT-HEX-SMALL,8MM This part replaces 312B0800. Price: $0.59 |
