| Ref | Part Number | Description |
|---|
| 11009 |
11009-3729 |
GASKET,CHOKE VALVE Price: $11.40 |
| 11009A |
11009-3730 |
GASKET,DIAPHRAGM Price: $15.34 |
| 13183 |
13183-3707 |
PLATE Price: $13.07 |
| 14024 |
14024-3720 |
COVER,CARBURETOR Price: $43.70 |
| 15001 |
15001-3720 |

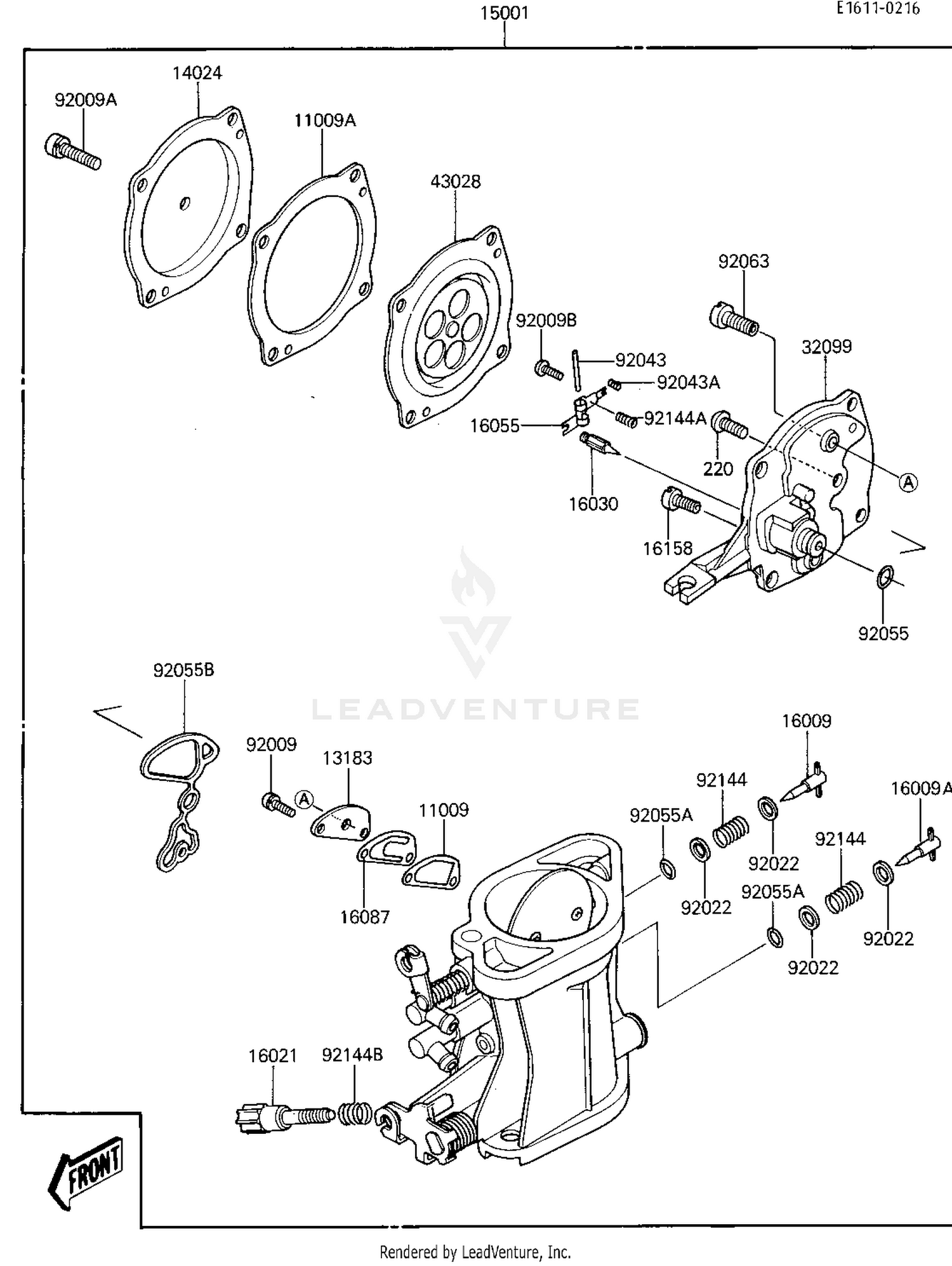

CARBURETOR-ASSY Price: $643.65 |
| 16009 |
16009-3701 |
NEEDLE-JET,HIGH SPEED Price: $24.56 |
| 16009A |
16009-3702 |
NEEDLE-JET,LOW SPEED Price: $37.17 |
| 16021 |
16021-3702 |
SCREW-THROTTLE STOP Price: $47.91 |
| 16030 |
16030-3701 |
VALVE-FLOAT Price: $50.52 |
| 16055 |
16055-3701 |
ARM-FLOAT Price: $47.66 |
| 16087 |
16087-3702 |
VALVE-CHECK Price: $10.67 |
| 16158 |
16158-3701 |
JET-SLOW,#48 Price: $14.06 |
| 32099 |
32099-3712 |
CASE,CARBURETOR Price: $111.88 |
| 43028 |
43028-3704 |
DIAPHRAGM,CARBURETOR Price: $95.55 |
| 92009 |
92009-2080 |
SCREW This part replaces 223B0306. Price: $1.96 |
| 92009A |
92009-3711 |
SCREW,4X16 Price: $7.24 |
| 92009B |
92009-3712 |
SCREW,3X6 Price: $2.38 |
| 92022 |
92022-3734 |
WASHER,ADJUST SCREW Price: $4.30 |
| 92043 |
92043-1209 |
PIN,FLOAT Price: $6.16 |
| 92043A |
92043-3712 |
PIN,THROTTLE STOP SCR Price: $4.85 |
| 92055 |
92055-1223 |
RING-O Price: $5.52 |
| 92055A |
92055-3713 |
RING-O,ADJUST SCREW Price: $5.23 |
| 92055B |
92055-3720 |
RING-O This part replaces 92055-3714. Price: $14.18 |
| 92063 |
92063-1069 |
JET-MAIN,2ND,#125 Price: $14.79 |
| 92144 |
92144-3704 |
SPRING,ADJUST SCREW Price: $6.89 |
| 92144A |
92144-3705 |
SPRING,FLOAT VALVE Price: $7.26 |
| 92144B |
92144-3706 |
SPRING,THROTTLE STOP Price: $7.51 |
