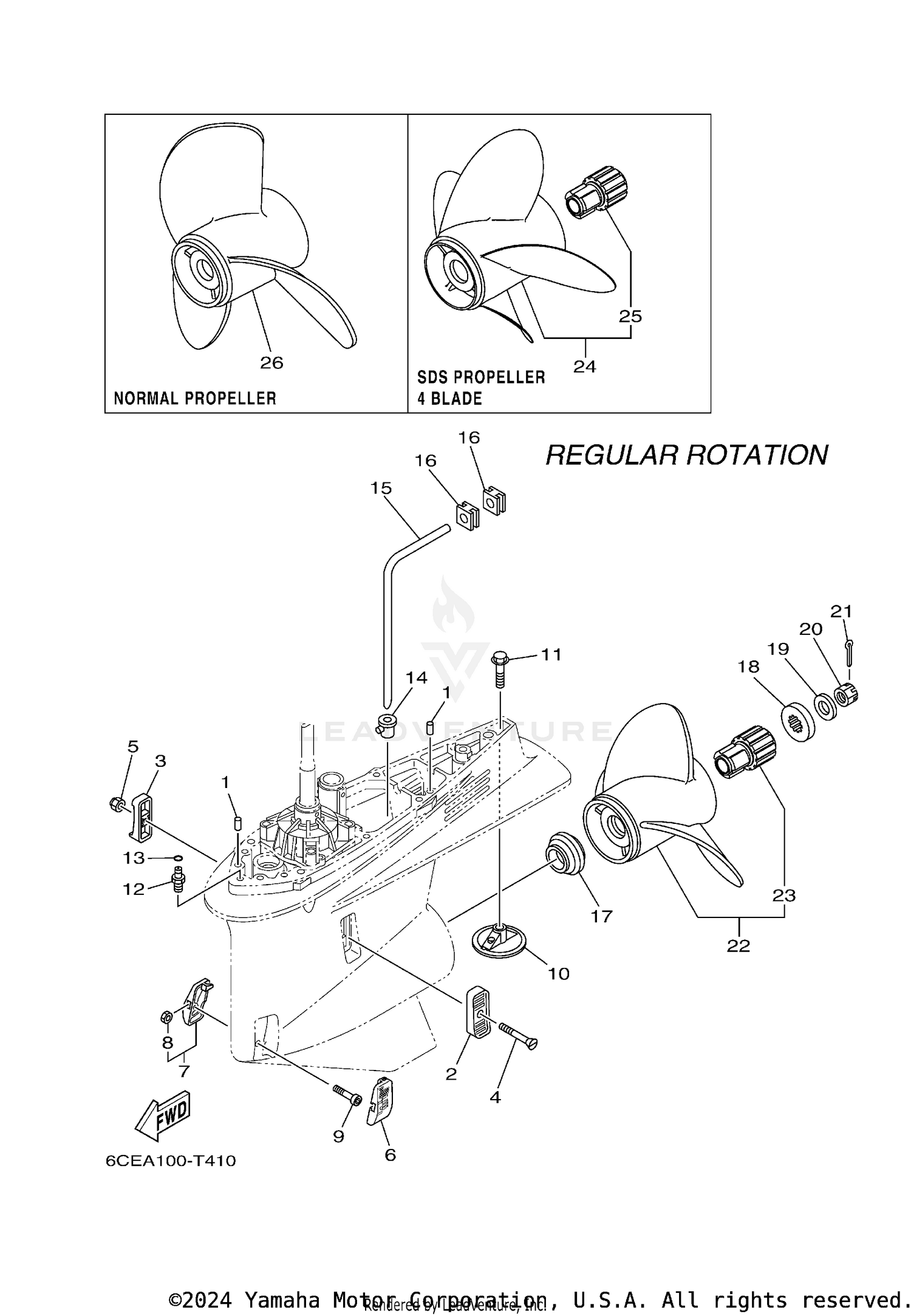

| Ref | Part Number | Description |
|---|
| 1 |
93608-16M16-00 |
PIN, DOWEL Price: $2.85 |
| 2 |
6P2-45214-00-00 |
COVER, WATER INLET 1 Price: $10.70 |
| 3 |
6P2-45215-00-00 |
COVER, WATER INLET 2 Price: $10.70 |
| 4 |
90152-05M08-00 |
SCREW, COUNTERSUNK Price: $4.75 |
| 5 |
90185-05904-00 |
NUT, SELF-LOCKING This part replaces 90185-05002-00. Price: $2.25 |
| 6 |
6CE-45224-00-00 |
COVER, WATER INLET 3 Price: $16.75 |
| 7 |
6CE-45225-00-00 |
COVER, WATER INLET 4 Price: $16.75 |
| 8 |
90185-05904-00 |
NUT, SELF-LOCKING This part replaces 90185-05002-00. Price: $2.25 |
| 9 |
90110-05039-00 |
BOLT, HEXAGON SOCKET HEAD Price: $3.55 |
| 10 |
6CE-45373-00-00 |
ANODE Price: $42.35 |
| 11 |
90105-10M00-00 |
BOLT, WASHER BASED Price: $5.20 |
| 12 |
63P-45378-00-00 |
NIPPLE, HOSE Price: $6.75 |
| 13 |
93210-07540-00 |
O-RING This part replaces 93210-07003-00. Price: $7.49 |
| 14 |
6D0-44367-00-00 |
DAMPER, WATER SEAL 3 Price: $24.20 |
| 15 |
6D0-44362-01-00 |
TUBE, WATER 2 Price: $27.05 |
| 16 |
6D0-44366-01-00 |
DAMPER, WATER SEAL 2 This part replaces 6D0-44366-00-00. Price: $5.65 |
| 17 |
69J-45987-00-00 |
SPACER 1 Price: $160.95 |
| 18 |
688-45997-01-00 |
SPACER 2 Price: $47.75 |
| 19 |
92990-18200-00 |
WASHER 1 Price: $2.55 |
| 20 |
90171-18M04-00 |
NUT, CASTLE Price: $20.20 |
| 21 |
91490-40030-00 |
PIN. COTTER Price: $4.50 |
| 23 |
6CE-45C81-10-00 |
DAMPER RUBBER, PROPELLER 1 Price: $94.00 |
| 25 |
6CE-45C81-10-00 |
DAMPER RUBBER, PROPELLER 1 Price: $94.00 |
