| Ref | Part Number | Description |
|---|
| 5000a |
415093807 |
O-Ring Price: $36.99 |
| 5000b |
415093806 |
Piston Ring Price: $17.49 |
| 5000c |
505070398 |
Air Valve Price: $21.99 |
| 5000d |
505070399 |
Screw Price: $4.19 |
| 5000e |
505070400 |
O-Ring Price: $4.69 |
| 5000f |
715900076 |
Circlip - Call your local BRP dealership Price: $4.19 |
| 5000g |
415093804 |
O-Ring Price: $4.69 |
| 5010 |
503195390 |
Spring Price: $69.99 |
| 5060 |
503190271 |
Spring Stopper Price: $22.49 |
| 5065 |
503192743 |
Spring Spacer Price: $16.99 |
| 5080 |
503189117 |
Urethane Bushing Price: $8.19 |
| 5090 |
503189282 |
Bushing Price: $4.34 |
| 5100 |
503189271 |
Bushing Price: $13.99 |
| 5150 |
207005044 |
Hex. Screw M10 X 1.5 X 50 Price: $3.89 |
| 5160 |
233601466 |
Elastic Locking Nut M10 Price: $2.19 |
| 5500a |
415093806 |
Piston Ring Price: $17.49 |
| 5500b |
505070398 |
Air Valve Price: $21.99 |
| 5500c |
505070399 |
Screw Price: $4.19 |
| 5500d |
505070400 |
O-Ring Price: $4.69 |
| 5500e |
715900076 |
Circlip - Call your local BRP dealership Price: $4.19 |
| 5500f |
415093804 |
O-Ring Price: $4.69 |
| 5570 |
503196509 |
Axle Shock Absorber This part replaces 503192606. Price: $12.58 |
| 5580 |
505072663 |
Leg Cushion Price: $9.23 |
| 5590 |
207684044 |
Hex. Flange Screw M8 X 40 Price: $1.49 |
| 5600 |
233281466 |
Elastic Flange Nut M8 Price: $1.09 |
| 5620 |
503190526 |
Spacer Price: $10.99 |
| 5630 |
503192494 |
Washer Price: $3.29 |
| 5640 |
207085556 |
Hex. Screw M8 X 55 Price: $1.69 |

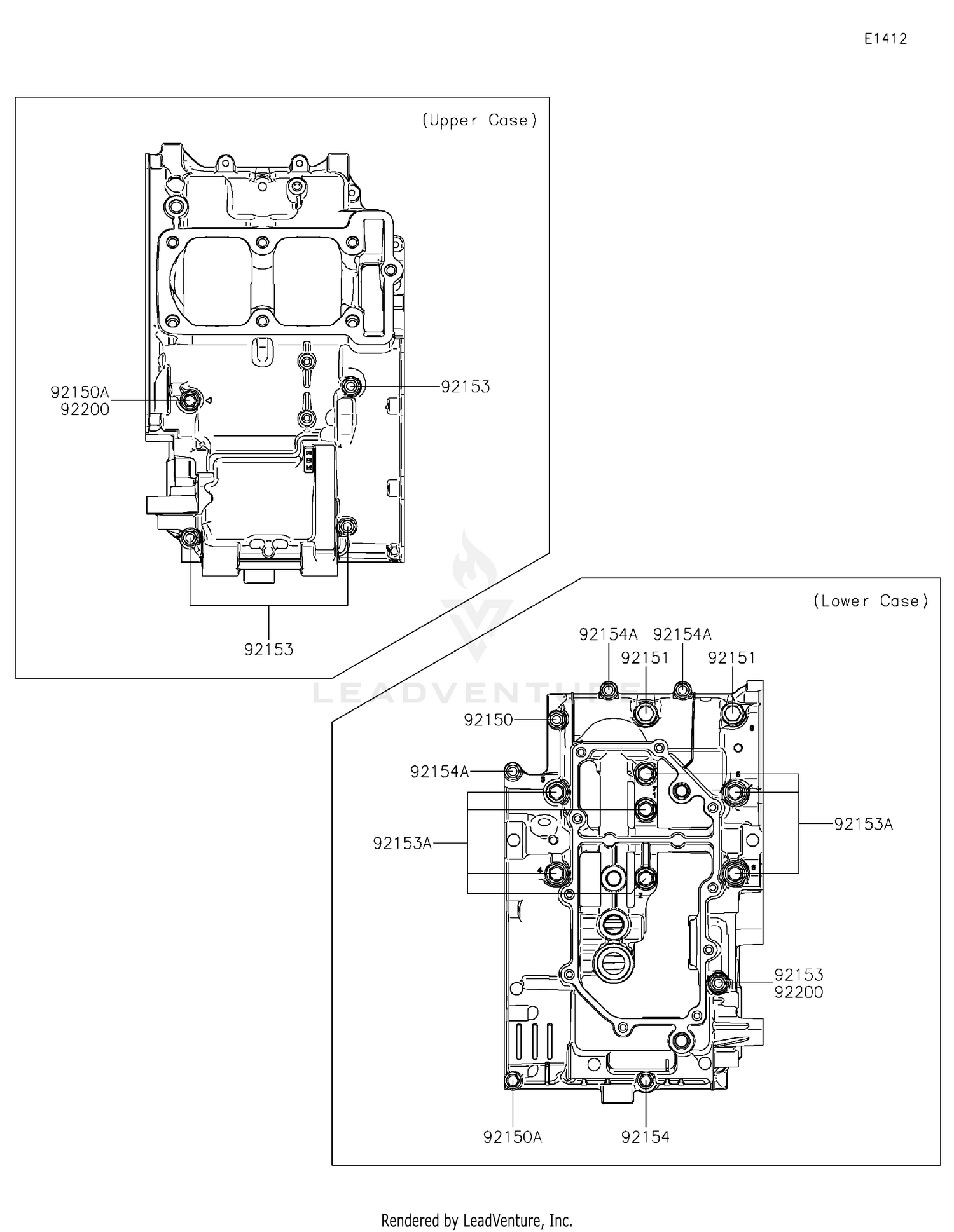

| 92150 |
92150-1301 |
BOLT,6X38 Price: $4.31 |
| 92150A |
92150-1548 |
BOLT,6X60 Price: $4.87 |
| 92151 |
92151-1462 |
BOLT,8X73 Price: $5.61 |
| 92153 |
92153-0927 |
BOLT,6X85,WHITE Price: $6.38 |
| 92153A |
92153-1632 |
BOLT,FLANGED,8X90 Price: $8.05 |
| 92154 |
92154-1189 |
BOLT,FLANGED,6X135 Price: $14.90 |
| 92154A |
92154-2832 |
BOLT,6X22 Price: $3.04 |
