| Ref | Part Number | Description |
|---|
| 1 |
6LH-14180-00-00 |

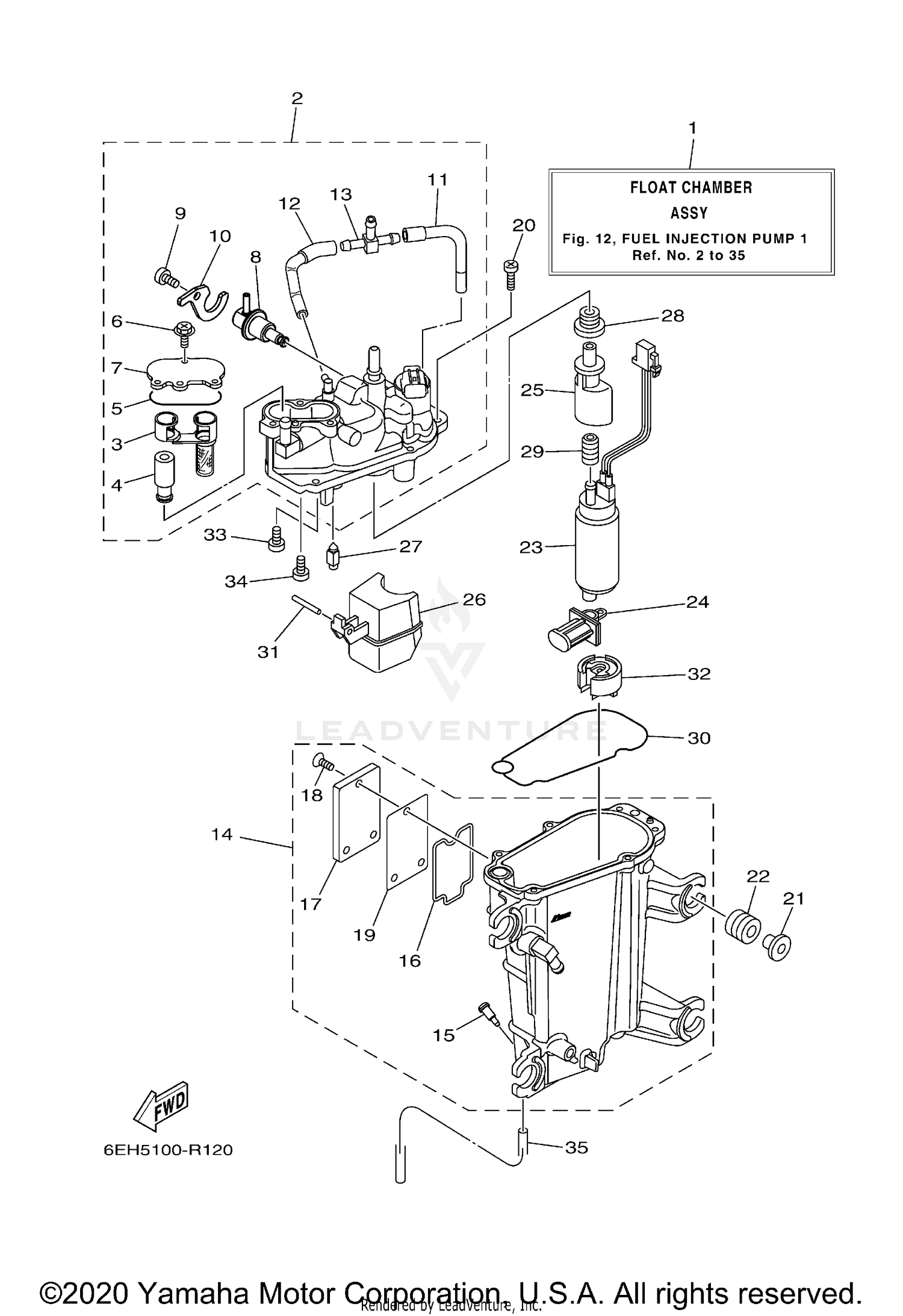

FLOAT CHAMBER ASSY This part replaces 6DA-14180-01-00. Price: $4,686.10 |
| 2 |
6DA-14182-00-00 |
COVER, FLOAT CHAMBER Price: $548.85 |
| 3 |
6CB-24501-01-00 |
FILTER, FUEL Price: $56.80 |
| 4 |
6CB-24460-00-00 |
RELIEF VALVE ASSY Price: $152.65 |
| 5 |
6CB-13016-00-00 |
O-RING Price: $30.70 |
| 6 |
6CB-14216-00-00 |
SCREW Price: $7.40 |
| 7 |
6CB-24217-00-00 |
COVER Price: $19.75 |
| 8 |
6CB-13906-01-00 |
REGULATOR, PRESSURE Price: $329.35 |
| 9 |
6CB-14564-00-00 |
SCREW Price: $4.90 |
| 10 |
6DA-14146-00-00 |
PLATE Price: $12.75 |
| 11 |
6DA-13892-00-00 |
HOSE, AIR 2 Price: $16.25 |
| 12 |
6DA-13893-00-00 |
HOSE, AIR 3 Price: $11.55 |
| 13 |
69J-24379-00-00 |
PIPE, JOINT 4 Price: $15.95 |
| 14 |
6DA-14181-00-00 |
BODY, FLOAT CHAMBER 1 Price: $516.25 |
| 15 |
6P2-14191-00-00 |
PLUG, DRAIN Price: $9.05 |
| 16 |
6CB-14239-00-00 |
SEAL Price: $30.70 |
| 17 |
6CB-24452-10-00 |
COVER Price: $59.65 |
| 18 |
6CB-14429-00-00 |
SCREW This part replaces 6CB-14429-01-00. Price: $6.15 |
| 19 |
6CB-24482-00-00 |
GASKET 1 Price: $52.05 |
| 20 |
63P-14567-09-00 |
SCREW This part replaces 63P-14567-00-00. Price: $4.20 |
| 21 |
63P-13716-00-00 |
COLLAR Price: $8.30 |
| 22 |
6CB-13593-00-00 |
DAMPER Price: $32.40 |
| 23 |
6P2-13907-22-00 |
FUEL PUMP COMP. This part replaces 6P2-13907-20-00. Price: $471.60 |
| 24 |
63P-13915-00-00 |
FILTER Price: $58.45 |
| 25 |
6AW-13132-00-00 |
JOINT Price: $41.30 |
| 26 |
6CB-14985-00-00 |
FLOAT Price: $134.90 |
| 27 |
6CB-14546-00-00 |
VALVE, NEEDLE Price: $120.40 |
| 28 |
99999-04572-00 |
BUSH AND JOINT SET This part replaces 6CB-1447B-00-00. Price: $99.00 |
| 29 |
6AW-13781-00-00 |
DAMPER, PUMP Price: $45.35 |
| 30 |
6CB-14984-00-00 |
GASKET, FLOAT CHAMBER Price: $73.75 |
| 31 |
127-14186-00-00 |
PIN,FLOAT This part replaces 6P2-14386-00-00. Price: $6.75 |
| 32 |
6AW-13784-00-00 |
COVER, PUMP Price: $535.75 |
| 33 |
4SV-24453-00-00 |
SCREW Price: $8.49 |
| 34 |
98507-04008-00 |
SCREW, PAN HEAD Price: $2.14 |
