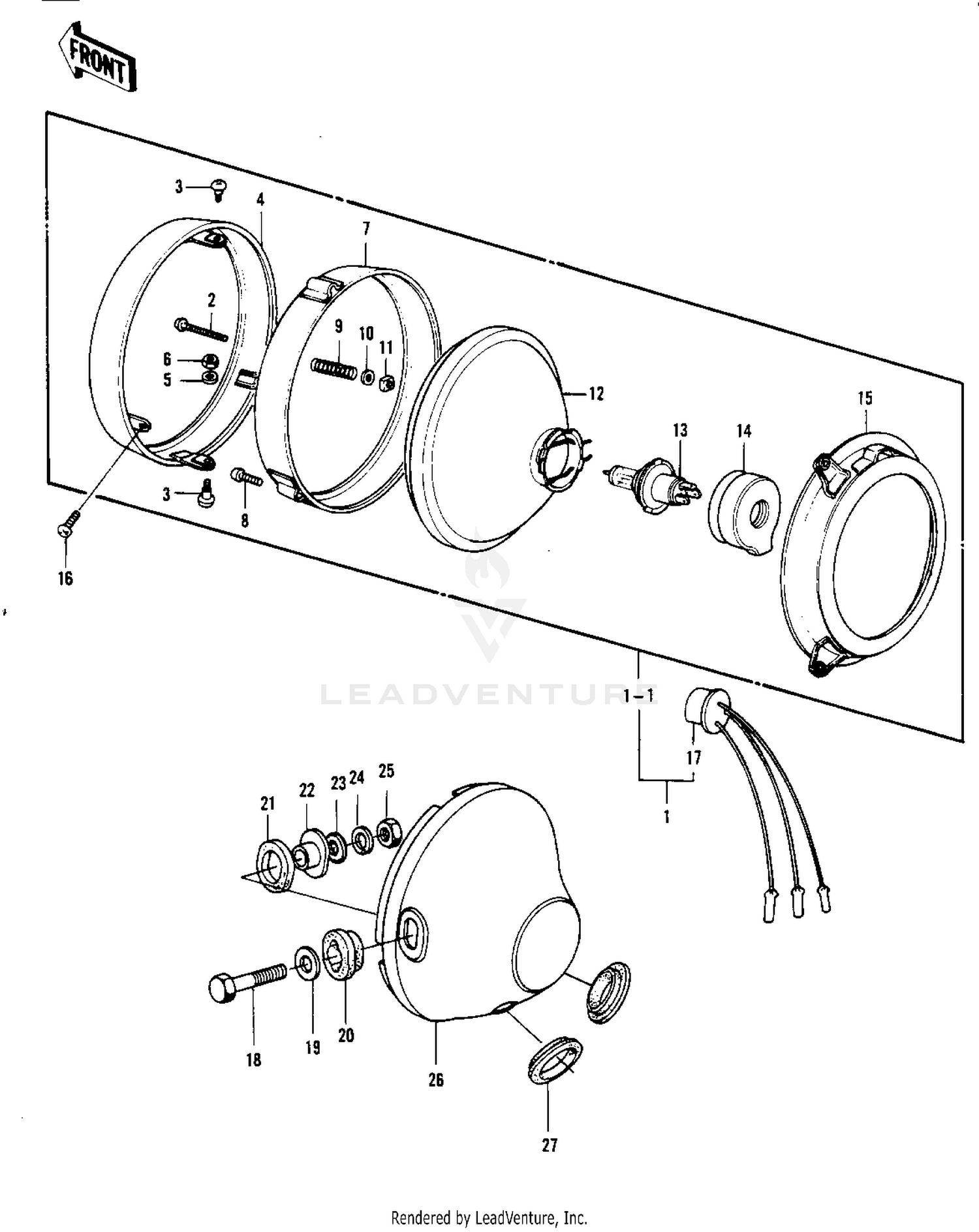

| Ref | Part Number | Description |
|---|
| 2 |
23019-021 |
SCREW FORCUS ADJUST Price: $4.69 |
| 3 |
23019-023 |
SCREW-PAN HEAD,5X12 Price: $5.43 |
| 4 |
23006-038 |
RIM,HEAD LAMP Price: $119.57 |
| 5 |
23021-012 |
WASHER-PLAIN,5MM Price: $5.43 |
| 6 |
23020-023 |
NUT,HEAD LAMP RIM FIT Price: $5.45 |
| 7 |
23072-001 |
RING,HEAD LAMP MOUNT Price: $44.17 |
| 8 |
220B0312 |
SCREW PAN HEAD 3X12 Price: $2.25 |
| 9 |
23014-005 |
SPRING FOCUS ADJUST Price: $3.62 |
| 10 |
23021-004 |
WASHER Price: $2.91 |
| 11 |
23020-018 |
NUT,4MM,FOCUS ADJUST Price: $4.65 |
| 12 |
23007-1009 |
LENS UNIT,HEAD LAMP Price: $160.22 |
| 14 |
49016-1016 |
DUST COVER Price: $18.58 |
| 15 |
23074-001 |
RING,HEAD LAMP MOUNT Price: $64.65 |
| 16 |
92172-0145 |
SCREW,5X14 This part replaces 23019-022. Price: $2.12 |
| 17 |
23008-037 |
SOCKET ASSY,HEAD LAMP Price: $21.60 |
| 18 |
92007-024 |
BOLT,10MM Price: $8.06 |
| 19 |
92200-1313 |
WASHER This part replaces 411D1000. Price: $4.78 |
| 20 |
23066-022 |
DAMPER RUBBER Price: $11.38 |
| 21 |
23066-021 |
DAMPER RUBBER Price: $12.72 |
| 22 |
23052-010 |
COLLAR Price: $12.82 |
| 23 |
410AA1000 |
WASHER-PLAIN-SMALL,10MM This part replaces 410B1000. Price: $0.59 |
| 24 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 25 |
315AA1000 |
NUT-HEX-FINE,10MM This part replaces 315B1000. Price: $0.59 |
