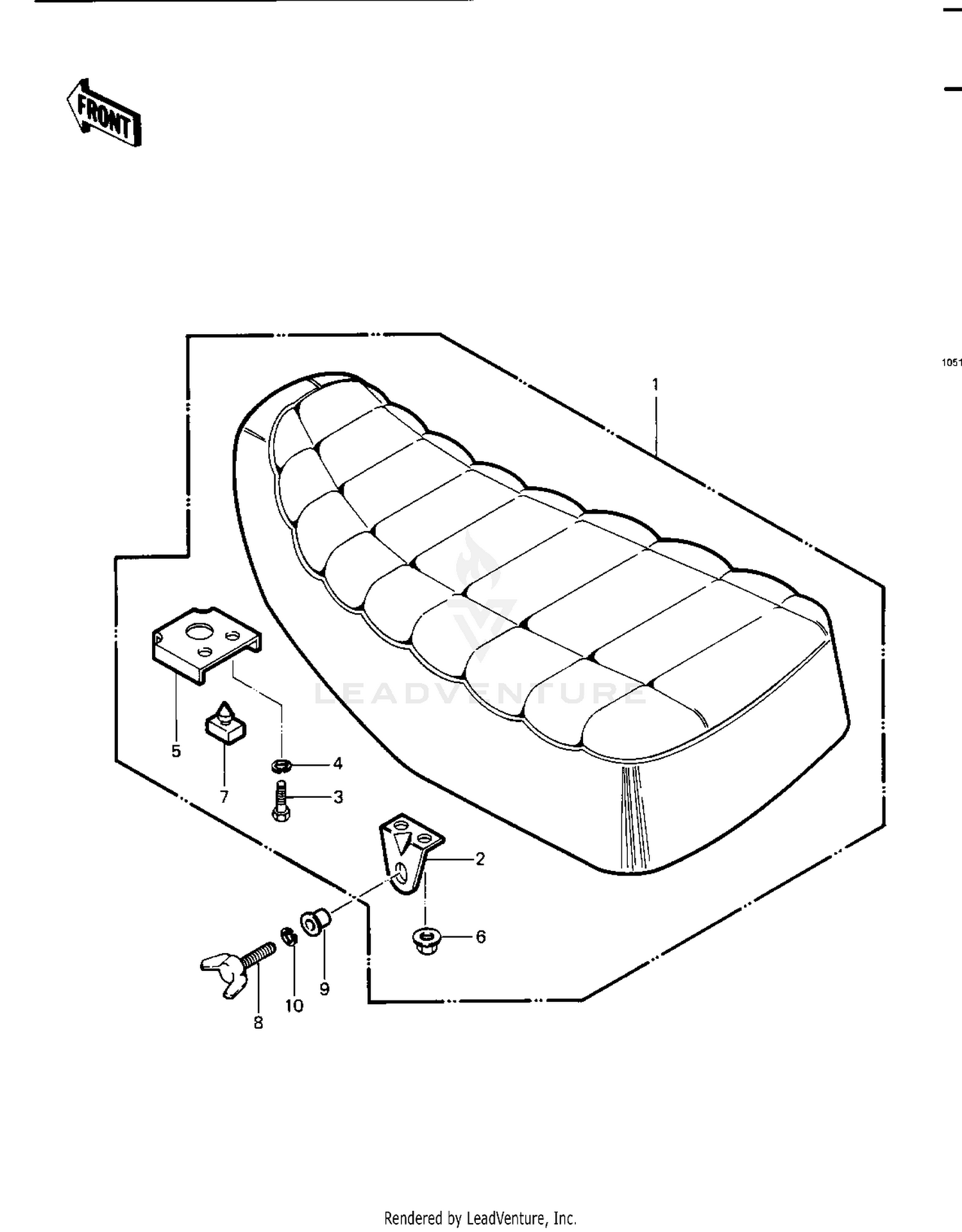

SEAT
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 53001-4009 | SEAT-ASSY,WHITE LOGO Price: $164.14 |
| 2 | 11034-1617 | BRACKET Price: $3.44 |
| 3 | 112BA0616 | BOLT-UPSET,6X16 This part replaces 112G0616. Price: $1.17 |
| 4 | 461DA0600 | WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 5 | 27012-4008 | HOOK,SEAT Price: $8.28 |
| 6 | 92210-0630 | NUT,FLANGED,6MM This part replaces 92015-1078. Price: $2.00 |
| 7 | 92075-099 | DAMPER Price: $5.52 |
| 8 | 92003-199 | BOLT,CLNR ELEMENT Price: $9.17 |
| 9 | 92027-4020 | COLLAR Price: $4.65 |
