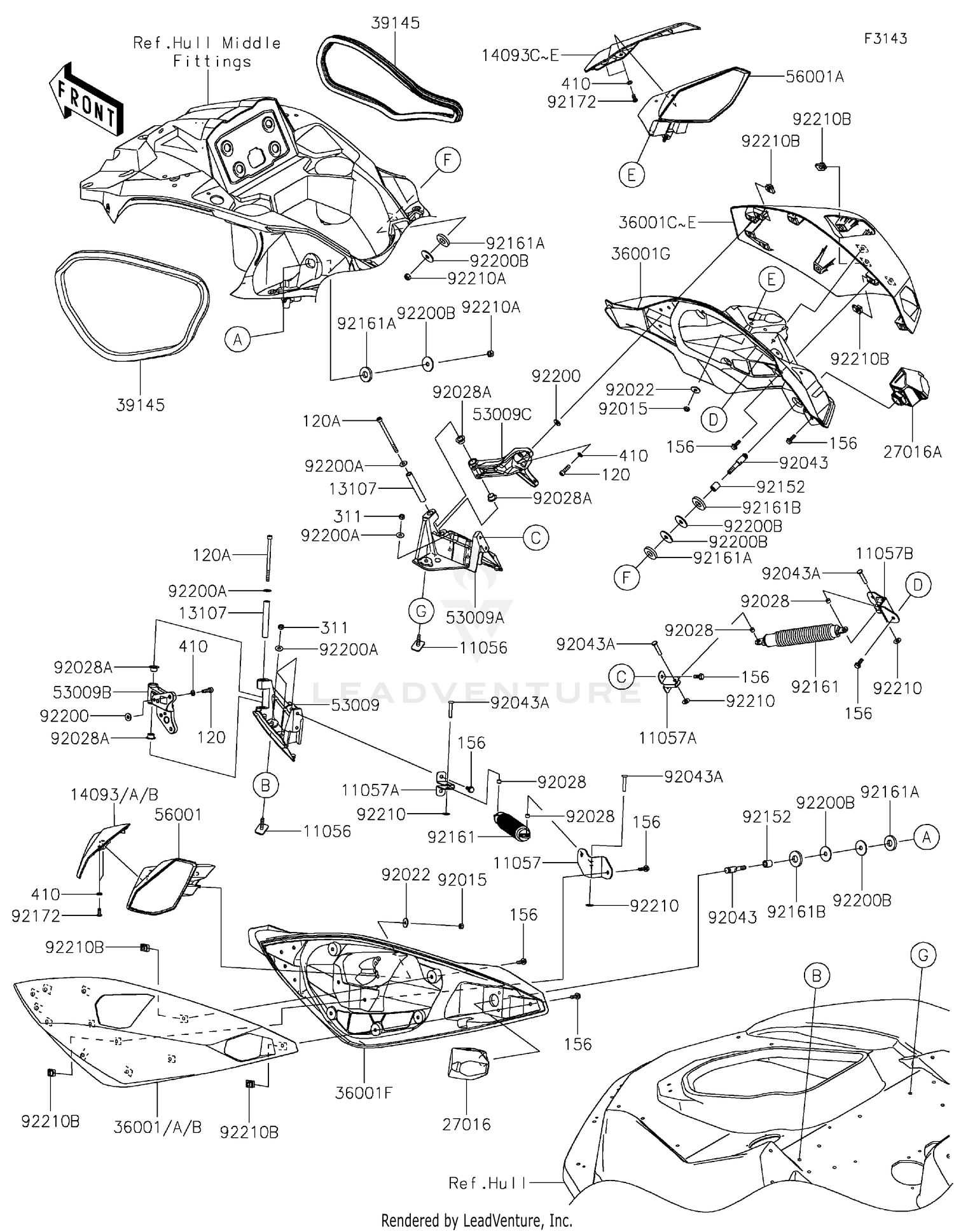

| Ref | Part Number | Description |
|---|
| 11056 |
11056-3724 |
BRACKET Price: $5.05 |
| 11057 |
11057-7467 |
BRACKET,HATCH SIDE Price: $32.77 |
| 11057A |
11057-7469 |
BRACKET,DECK SIDE Price: $11.10 |
| 11057B |
11057-7470 |
BRACKET,HATCH SIDE Price: $32.77 |
| 13107 |
13107-0944 |
SHAFT,FRONT HINGE Price: $15.39 |
| 14093 |
14093-1146-31Y |
COVER,MIRROR,LH,M.S.WHITE Price: $44.78 |
| 14093A |
14093-1146-66U |
COVER,MIRROR,LH,M.S.GOLD Price: $44.78 |
| 14093B |
14093-1146-72Q |
COVER,MIRROR,LH,M.G.S.D.GREEN Price: $44.78 |
| 14093C |
14093-1147-31Y |
COVER,MIRROR,RH,M.S.WHITE Price: $44.78 |
| 14093D |
14093-1147-66U |
COVER,MIRROR,RH,M.S.GOLD Price: $44.78 |
| 14093E |
14093-1147-72Q |
COVER,MIRROR,RH,M.G.S.D.GREEN Price: $44.78 |
| 27016 |
27016-0103 |
LOCK-ASSY,SIDE COVER,LH Price: $74.59 |
| 27016A |
27016-0104 |
LOCK-ASSY,SIDE COVER,RH Price: $74.59 |
| 36001 |
36001-0710-31Y |
COVER-SIDE,LH,M.S.WHITE Price: $82.71 |
| 36001A |
36001-0710-66U |
COVER-SIDE,LH,M.S.GOLD Price: $84.68 |
| 36001B |
36001-0710-72Q |
COVER-SIDE,LH,M.G.S.D.GREEN Price: $84.68 |
| 36001C |
36001-0711-31Y |
COVER-SIDE,RH,M.S.WHITE Price: $82.71 |
| 36001D |
36001-0711-66U |
COVER-SIDE,RH,M.S.GOLD Price: $84.68 |
| 36001E |
36001-0711-72Q |
COVER-SIDE,RH,M.G.S.D.GREEN Price: $84.68 |
| 36001F |
36001-0712 |
COVER-SIDE,LH,INNER Price: $32.76 |
| 36001G |
36001-0713 |
COVER-SIDE,RH,INNER Price: $32.76 |
| 39145 |
39145-0779 |
TRIM-SEAL Price: $13.20 |
| 53009 |
53009-0308 |
HINGE,DECK SIDE Price: $70.77 |
| 53009A |
53009-0309 |
HINGE,DECK SIDE Price: $70.77 |
| 53009B |
53009-0310 |
HINGE,HATCH SIDE Price: $89.13 |
| 53009C |
53009-0311 |
HINGE,HATCH SIDE Price: $89.13 |
| 56001 |
56001-0440 |
MIRROR-ASSY,LH Price: $104.72 |
| 56001A |
56001-0441 |
MIRROR-ASSY,RH Price: $104.72 |
| 92015 |
92015-3766 |
NUT,LOCK,6MM Price: $5.91 |
| 92022 |
92022-3710 |
WASHER,6.5X20X1.5 Price: $3.65 |
| 92028 |
92028-3765 |
BUSHING Price: $3.29 |
| 92028A |
92028-3770 |
BUSHING Price: $2.71 |
| 92043 |
92043-0754 |
PIN Price: $20.32 |
| 92043A |
92043-3748 |
PIN,6X33 Price: $11.20 |
| 92152 |
92152-0979 |
COLLAR,8.2X14X16.2 Price: $13.49 |
| 92161 |
92161-1581 |
DAMPER,HATCH Price: $189.92 |
| 92161A |
92161-3739 |
DAMPER Price: $6.18 |
| 92161B |
92161-3747 |
DAMPER Price: $5.12 |
| 92172 |
92172-1428 |
SCREW,TAPPING,6X14 Price: $1.72 |
