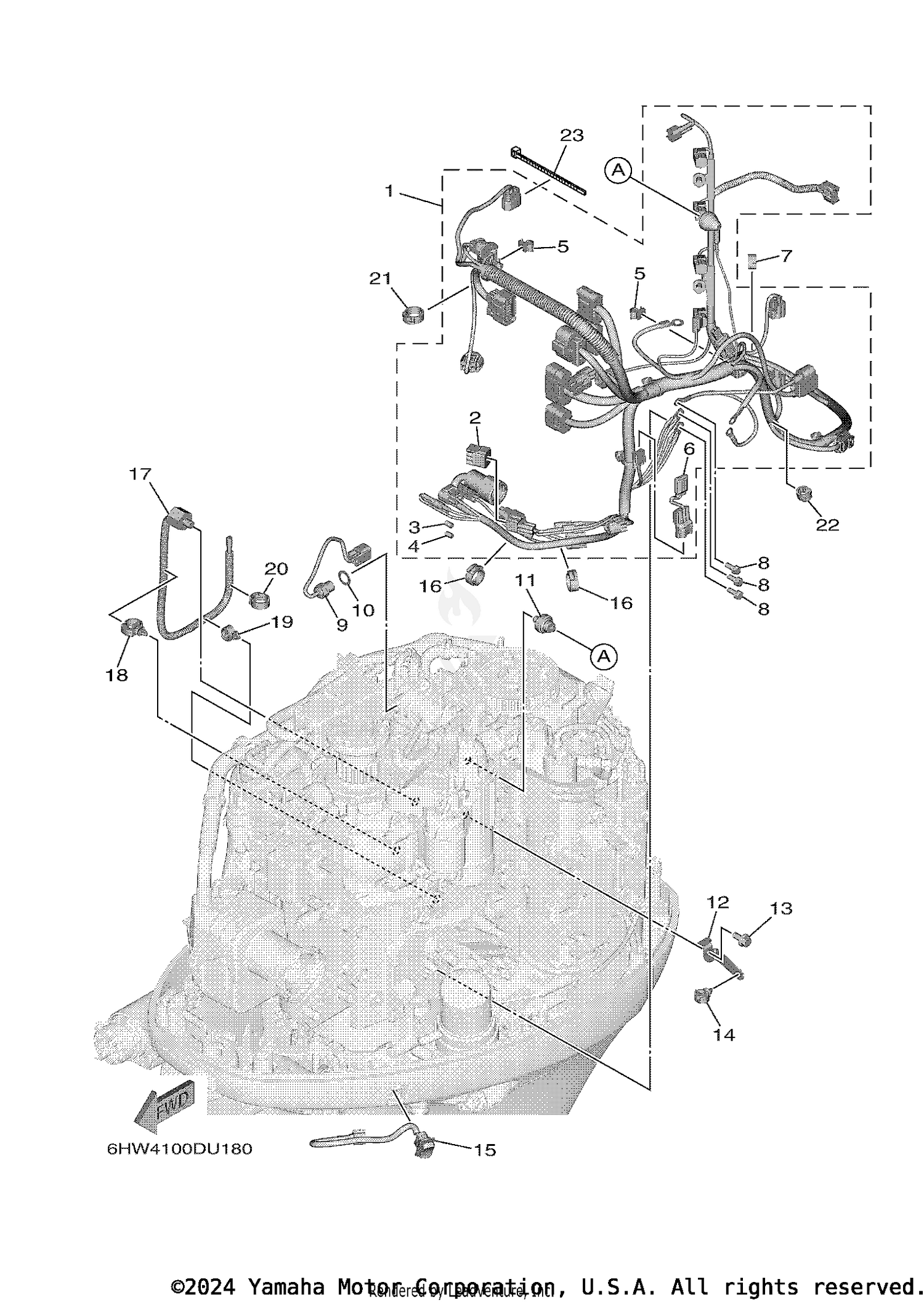

ELECTRICAL 5
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6FP-82590-12-00 | WIRE HARNESS ASSY Price: $609.80 |
| 2 | 6Y8-82582-11-00 | CAP 1 (4 PIN) Price: $7.00 |
| 3 | 6DA-82582-00-00 | CAP 1 (FEMALE) Price: $4.05 |
| 4 | 6DA-82582-10-00 | CAP 1 (MALE) Price: $5.55 |
| 5 | 90464-09M47-00 | CLAMP Price: $4.30 |
| 7 | 90464-13227-00 | CLAMP Price: $8.49 |
| 8 | 97E95-06516-00 | BOLT, HEXAGON W/W Price: $4.20 |
| 9 | 6CJ-85790-00-00 | THERMOSENSOR ASSY Price: $72.60 |
| 10 | 90430-14115-00 | GASKET Price: $3.00 |
| 11 | 68V-82504-00-00 | OIL PRESSURE SWITCH ASSY Price: $84.90 |
| 12 | 6JX-85548-00-00 | HOLDER Price: $8.60 |
| 13 | 95D95-06016-00 | BOLT, FLANGE DEEP Price: $0.95 |
| 14 | 90464-13249-00 | CLAMP Price: $3.55 |
| 15 | 6FM-82563-01-00 | TRIM & TILT SWITCH ASSY Price: $86.10 |
| 16 | 90464-16001-00 | CLAMP Price: $2.39 |
| 17 | 6CJ-85780-02-00 | SENSOR, KNOCK This part replaces 6CJ-85780-01-00. Price: $355.85 |
| 18 | 90464-20181-00 | CLAMP Price: $4.72 |
| 19 | 90464-13249-00 | CLAMP Price: $3.55 |
| 20 | 90464-16001-00 | CLAMP Price: $2.39 |
| 21 | 90464-16001-00 | CLAMP Price: $2.39 |
| 22 | 90464-13227-00 | CLAMP Price: $8.49 |
