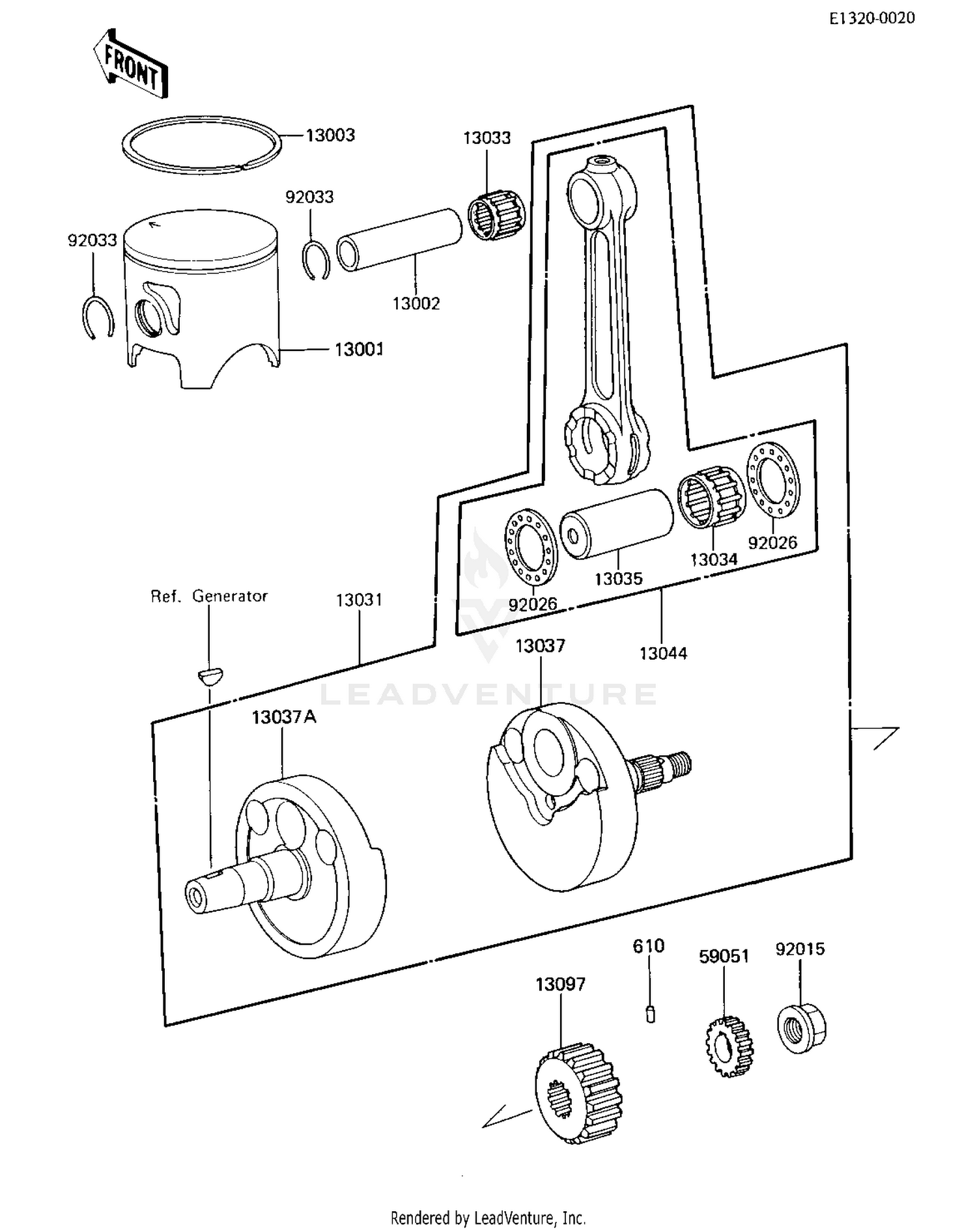

CRANKSHAFT/PISTON
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 13001 | 13001-1231 | PISTON-ENGINE Price: $139.52 |
| 13002 | 13002-1003 | PIN-PISTON Price: $22.21 |
| 13003 | 13003-1315 | RING-PISTON TOP Price: $27.52 |
| 13031 | 13031-1180 | CRANKSHAFT-COMP Price: $295.84 |
| 13033 | 13033-1051 | BEARING-SMALL END,KBK Price: $23.42 |
| 13034 | 13034-1079 | BEARING-BIG END Price: $66.15 |
| 13035 | 13035-1010-01 | PIN Price: $47.92 |
| 13037 | 13037-1243 | CRANKSHAFT,RH Price: $168.39 |
| 13037A | 13037-1251 | CRANKSHAFT,LH Price: $112.51 |
| 13044 | 13044-5065 | SET-CONNECTING ROD Price: $212.90 |
| 13097 | 13097-1127 | GEAR-PRIMARY SPUR,18T Price: $86.52 |
| 59051 | 59051-1035 | GEAR-SPUR,WATER PUMP, Price: $23.69 |
| 92015 | 92015-1161 | NUT,10MM Price: $7.65 |
| 92026 | 92026-1136 | SPACER,22.2X37X1.0 Price: $8.58 |
| 92033 | 92036-004 | CIRCLIP PISTON PIN Price: $0.65 |
