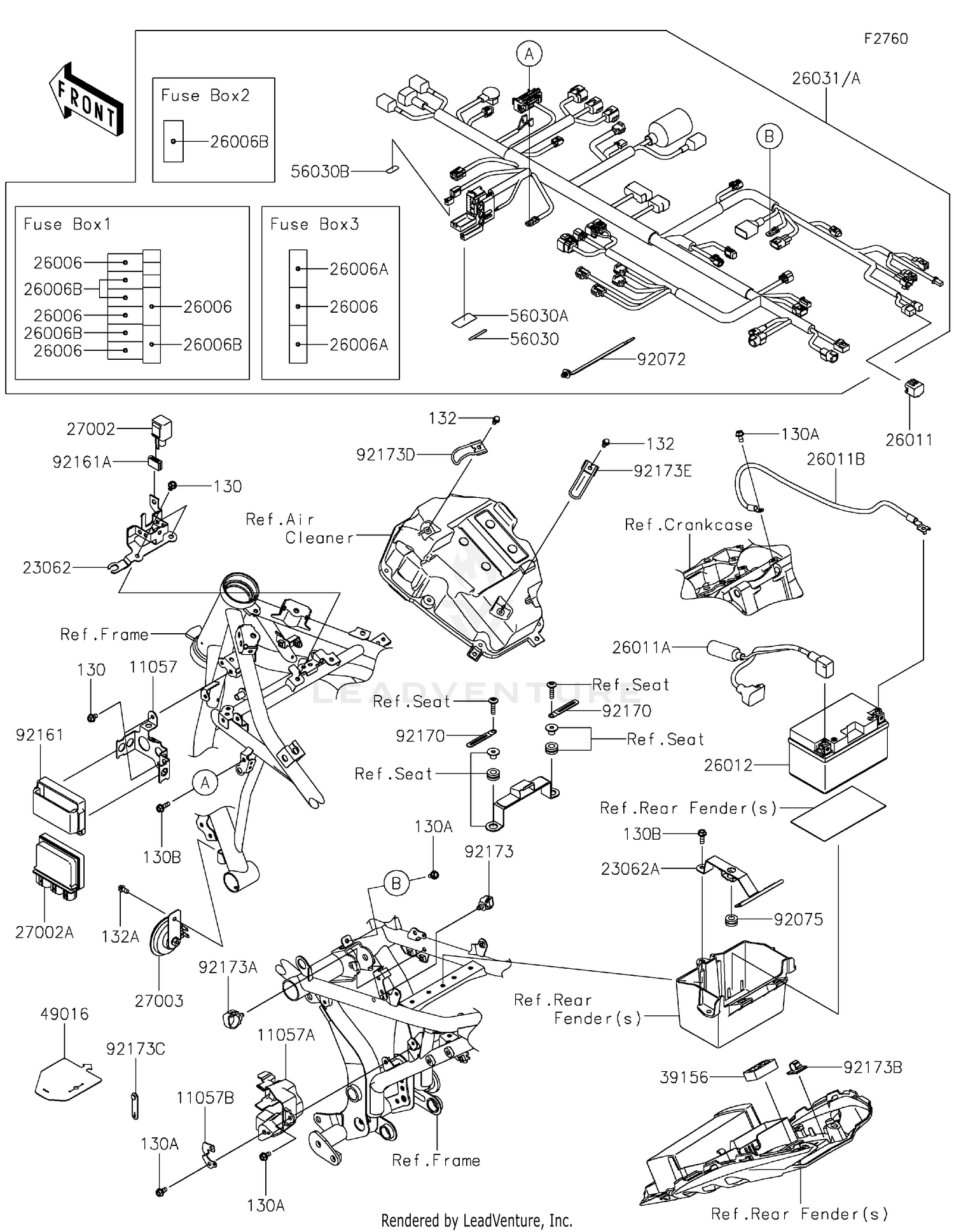

| Ref | Part Number | Description |
|---|
| 1 |
207552044 |
Hex. Flange Screw M5 X 20, Scotch Grip Price: $5.29 |
| 2 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip Price: $1.99 |
| 3 |
207562534 |
Hex. Flange Screw M6 X 25, Scotch Grip Price: $2.19 |
| 5 |
207586044 |
Hex. Flange Screw M8 X 60, Scotch Grip Price: $2.19 |
| 6 |
230582544 |
Hex. Flange Screw M8 X 125, Scotch Grip Price: $13.49 |
| 7 |
232581414 |
Hex. Elastic Stop Nut M8 Price: $0.58 |
| 8 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. Price: $4.29 |
| 9 |
250000257 |
Cone Screw, M8 X 30 Price: $1.89 |
| 10 |
250000263 |
Torx Screw #8-18 Price: $1.09 |
| 11 |
250000528 |
Torx Screw M5 X 20 Price: $2.19 |
| 12 |
250000623 |
Torx Screw M2.9 x 9.5 Price: $3.29 |
| 13 |
250000632 |
Torx Screw M5 X 14 Price: $7.69 |
| 14 |
250000671 |
Torx Screw Price: $1.09 |
| 15 |
250200008 |
Flat Washer With Teflon 8 mm Price: $3.89 |
| 16 |
250200146 |
Conical Spring Washer M8 Price: $1.09 |
| 17 |
250200157 |
Conical Spring Washer M8 Price: $2.19 |
| 18 |
Not |
Available As Spare Part - Shaft Seal |
| 19 |
293650025 |
Oetiker Gear Clamp Price: $3.19 |
| 20 |
293750002 |
Tie Wrap 142 mm Price: $1.25 |
| 21 |
293750008 |
Tie Wrap 368 mm Price: $1.04 |
| 22 |
414115200 |
Tie-Rap 180 mm Price: $0.11 |
| 24 |
503183200 |
Yellow, Washer Price: $3.29 |
| 25 |
512060285 |
Spacer Price: $19.99 |
| 26 |
512060505 |
Shim Price: $44.99 |
| 27 |
512061203 |
Stopper This part replaces 512060647. Price: $14.49 |
| 28 |
512061139 |
Rear Support PTO This part replaces 512060660. Price: $25.99 |
| 29 |
512061140 |
Front Support PTO This part replaces 512060661. Price: $21.99 |
| 30 |
512060663 |
Front Support, MAG Price: $19.99 |
| 31 |
512060729 |
Rubber Mount Price: $67.99 |
| 32 |
512061453 |
Switch Support This part replaces 512060844. Price: $9.09 |
| 33 |
512060862 |
Cap Price: $13.99 |
| 34 |
512061142 |
Rear Support MAG This part replaces 512060894. Price: $29.99 |
| 35 |
512060987 |
Front Housing Price: $8.79 |
| 36 |
512060994 |
Module Support Price: $16.99 |
| 37 |
512061067 |
Protector Tube Price: $24.49 |
| 38 |
515177362 |
Emergency Stop Switch Price: $88.99 |
| 39 |
512061607 |
Housing Ass'y This part replaces 512061113. Price: $349.99 |
| 39a |
415130047 |
Handle Ass'y kit Price: $109.99 |
| 40 |
515177716 |
Protector Tube Price: $4.69 |
| 41 |
515177716 |
Protector Tube Price: $4.69 |
| 42 |
516007500 |
Decal Checking Engine Oil Price: $11.99 |
| 130 |
130BA0610 |
BOLT-FLANGED,6X10 Price: $1.20 |
| 130A |
130BA0612 |
BOLT-FLANGED,6X12 Price: $1.72 |
| 130B |
130BA0618 |
BOLT-FLANGED,6X18 Price: $1.54 |
| 11057 |
11057-0077 |
BRACKET,RELAY BOX Price: $11.71 |
| 11057A |
11057-0137 |
BRACKET,MAGNETIC SW. Price: $7.93 |
| 11057B |
11057-0138 |
BRACKET,COUPLER Price: $2.70 |
| 23062 |
23062-0875 |
BRACKET-COMP,VD SENSOR Price: $19.79 |
| 23062A |
23062-0899 |
BRACKET-COMP,BATTERY Price: $10.90 |
| 26006 |
26006-0001 |
FUSE,MINI BLADE,15A,BLUE Price: $6.12 |
| 26006A |
26006-0020 |
FUSE,MINI BLADE,25A,NATURAL Price: $6.57 |
| 26006B |
26006-1078 |
FUSE,MINI BLADE,10A,RED Price: $4.87 |
| 26011 |
26011-0275 |
WIRE-LEAD,CONNECTOR COVER Price: $14.13 |
| 26011A |
26011-0980 |
WIRE-LEAD,BATTERY(+) Price: $45.50 |
| 26011B |
26011-0981 |
WIRE-LEAD,BATTERY(-) Price: $30.38 |
| 26012 |
26012-1504 |
BATTERY,YTZ10S,12V 8.6AH This part replaces 26012-0564. Price: $205.86 |
| 27002 |
27002-0006 |
RELAY-ASSY,SIGNAL LAMP Price: $54.81 |
| 27002A |
27002-0050 |
RELAY-ASSY This part replaces 27002-0025. Price: $143.14 |
| 27003 |
27003-0056 |
HORN Price: $68.20 |
| 39156 |
39156-2136 |
PAD,CONNECTOR Price: $4.41 |
| 49016 |
49016-0645 |
COVER-SEAL Price: $6.48 |
| 56030 |
56030-0400 |
LABEL,FUSE BOX3 Price: $4.37 |
| 56030A |
56030-0705 |
LABEL,FUSE BOX1 Price: $4.37 |
| 56030B |
56030-0706 |
LABEL,FUSE BOX2 Price: $4.37 |
| 92072 |
92072-1414 |
BAND,OS170-FT7(BLACK) Price: $3.74 |
| 92075 |
92075-1880 |
DAMPER Price: $1.63 |
| 92161 |
92161-0203 |
DAMPER,RELAY BOX Price: $10.37 |
| 92161A |
92161-1443 |
DAMPER,15X25X8.5 Price: $1.94 |
| 92170 |
92170-1514 |
CLAMP Price: $4.31 |
| 92173 |
92173-0736 |
CLAMP,12MM DIA. Price: $5.05 |
| 92173A |
92173-0861 |
CLAMP Price: $3.02 |
| 92173B |
92173-1055 |
CLAMP,DRAIN Price: $6.34 |
| 92173C |
92173-1229 |
CLAMP,RUBBER PLATE Price: $3.94 |
| 92173D |
92173-1586 |
CLAMP,A/C CASE,FR Price: $5.61 |
| 92173E |
92173-1587 |
CLAMP,A/C CASE,RR Price: $5.61 |
