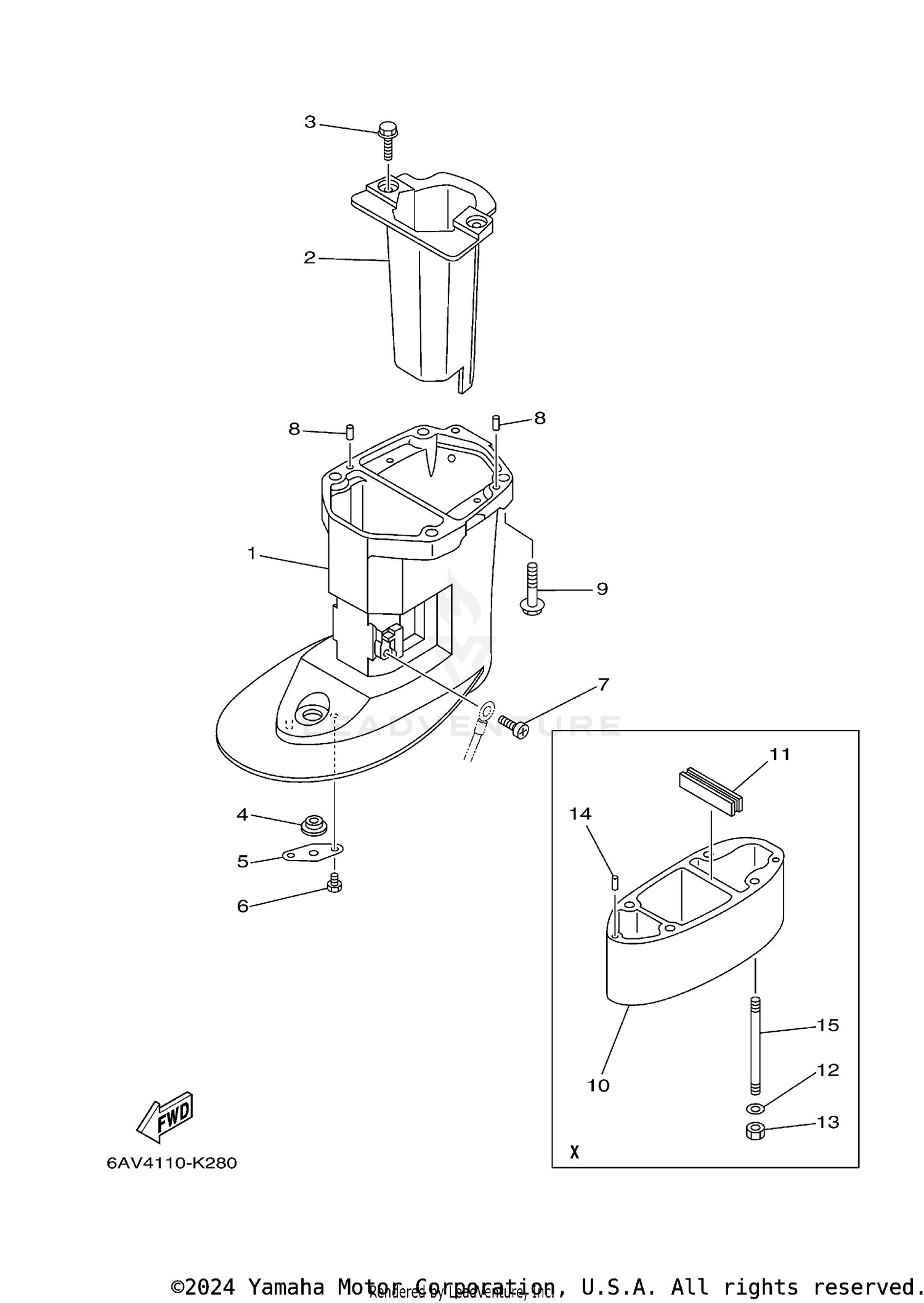

UPPER CASING
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 6AU-14711-00-CA | MUFFLER 1 Price: $136.55 |
| 3 | 97E75-06514-00 | BOLT, HEXAGON W/W Price: $1.00 |
| 4 | 90480-14M54-00 | GROMMET Price: $3.55 |
| 5 | 68T-45321-00-00 | PLATE Price: $6.25 |
| 6 | 97D95-06008-00 | BOLT, HEXAGON DEEP Price: $0.70 |
| 7 | 97885-05008-00 | SCREW, PAN HEAD Price: $2.85 |
| 8 | 93604-10M03-00 | PIN, DOWEL This part replaces 93604-12M07-00. Price: $5.20 |
| 9 | 97E95-08535-00 | BOLT, HEXAGON W/W Price: $1.85 |
