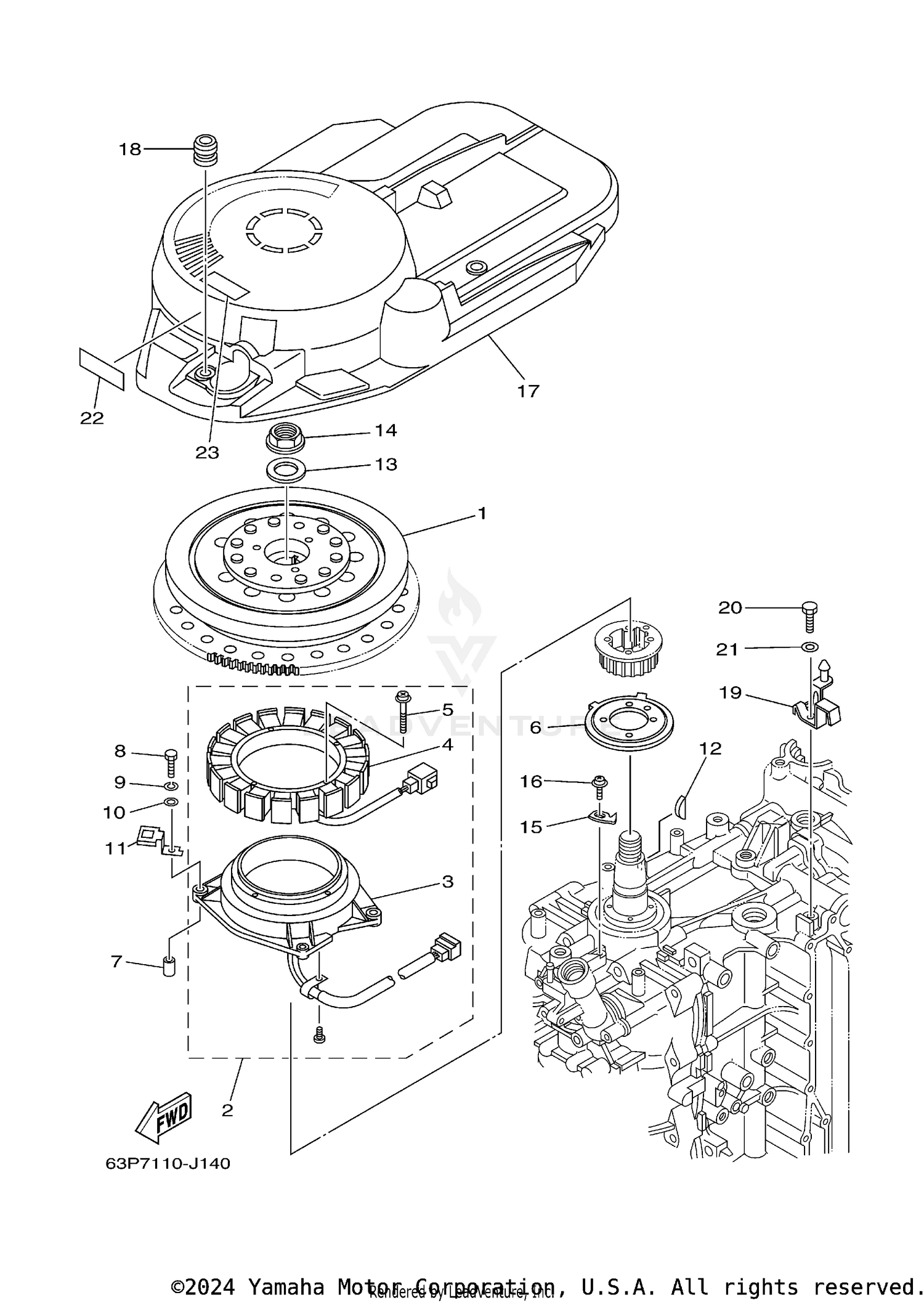

| Ref | Part Number | Description |
|---|
| 1 |
63P-81450-00-00 |
ROTOR ASSY Price: $1,345.60 |
| 2 |
63P-81460-01-00 |
BASE ASSY This part replaces 63P-81460-00-00. Price: $1,018.90 |
| 3 |
63P-85580-00-00 |
COIL, PULSER Price: $432.20 |
| 4 |
63P-81410-00-00 |
STATOR ASSY Price: $892.40 |
| 5 |
98517-06030-00 |
SCREW,PAN HEAD This part replaces 63D-81345-20-00. Price: $3.35 |
| 6 |
63P-81673-01-00 |
ROTOR Price: $49.35 |
| 7 |
99530-08012-00 |
PIN, DOWEL Price: $6.60 |
| 8 |
97080-06035-00 |
BOLT This part replaces 97095-06035-00. Price: $5.49 |
| 9 |
92995-06100-00 |
WASHER, SPRING Price: $3.45 |
| 10 |
92990-06600-00 |
WASHER, PLATE This part replaces 92995-06600-00. Price: $2.85 |
| 11 |
63P-81845-00-00 |
PLATE Price: $4.90 |
| 12 |
90280-05015-00 |
KEY, WOODRUFF Price: $8.95 |
| 13 |
90201-24014-00 |
WASHER, PLATE Price: $12.70 |
| 14 |
90179-24002-00 |
NUT Price: $42.00 |
| 15 |
6P2-81332-00-00 |
PLATE, TIMING Price: $3.15 |
| 16 |
97985-06210-00 |
SCREW, WITH WASHER Price: $3.20 |
| 17 |
63P-81337-01-00 |
COVER, FLYWHEEL This part replaces 63P-81337-00-00. Price: $102.65 |
| 18 |
663-82317-02-00 |
DAMPER, IGNITION COIL This part replaces 663-82317-01-00. Price: $7.15 |
| 19 |
63P-8132G-00-00 |
PLATE Price: $46.55 |
| 20 |
97D95-06016-00 |
BOLT, HEXAGON DEEP R This part replaces 97095-06016-00. Price: $2.76 |
| 21 |
92990-06600-00 |
WASHER, PLATE This part replaces 92995-06600-00. Price: $2.85 |
| 22 |
63P-13437-42-00 |
MARK, CAUTION Price: $5.35 |
