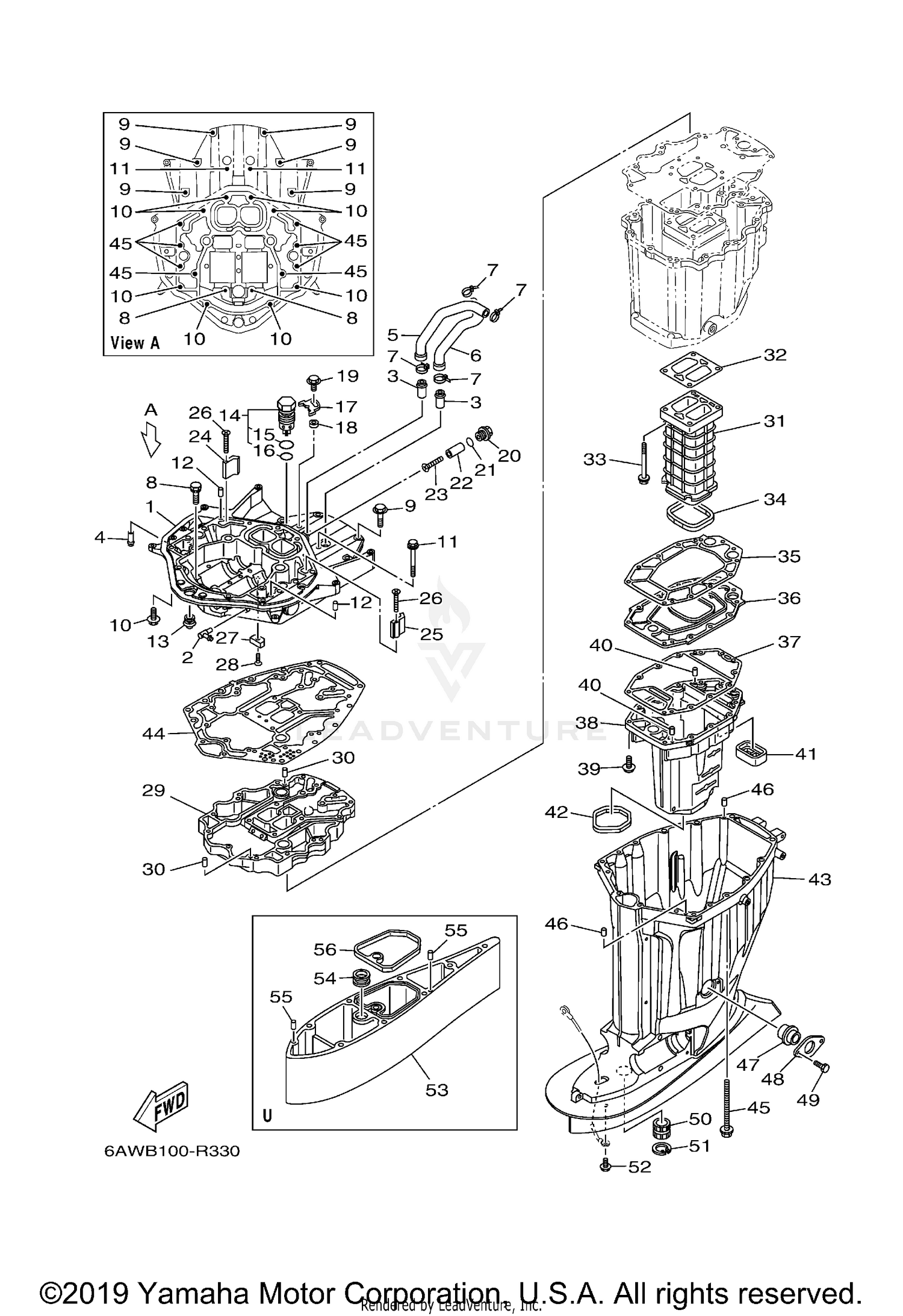

| Ref | Part Number | Description |
|---|
| 1 |
6AW-41137-11-CA |
GUIDE, EXHAUST Price: $1,671.15 |
| 2 |
6H1-11372-00-00 |
NIPPLE, HOSE Price: $52.05 |
| 3 |
6AW-1475G-00-00 |
PIPE 4 Price: $20.65 |
| 4 |
6AW-1475J-00-00 |
PIPE 6 Price: $38.95 |
| 5 |
6AW-1244H-00-00 |
HOSE 5 Price: $32.50 |
| 6 |
6AW-1243F-00-00 |
HOSE,3 Price: $31.20 |
| 7 |
90465-11M59-00 |
CLAMP Price: $7.10 |
| 8 |
90119-08182-00 |
BOLT, WITH WASHER This part replaces 90119-08102-00. Price: $5.00 |
| 9 |
97E75-10545-00 |
BOLT, HEXAGON W/W Price: $3.75 |
| 10 |
90119-10040-00 |
BOLT, WITH WASHER Price: $7.90 |
| 11 |
97E75-10585-00 |
BOLT, HEXAGON W/W DE Price: $11.40 |
| 12 |
93608-16M16-00 |
PIN, DOWEL Price: $2.85 |
| 13 |
6AW-42724-01-00 |
GROMMET This part replaces 6AW-42724-00-00. Price: $3.20 |
| 14 |
6AW-11371-10-00 |
PRESSURE CONTROL VALVE ASSY Price: $62.75 |
| 15 |
93210-347A1-00 |
O-RING Price: $8.49 |
| 16 |
93210-28543-00 |
O-RING Price: $3.20 |
| 17 |
69J-12233-00-00 |
PLATE, GUIDE STOPPER 1 Price: $5.55 |
| 18 |
90387-06023-00 |
COLLAR This part replaces 90387-06037-00. Price: $10.49 |
| 19 |
97E95-06520-00 |
BOLT, HEXAGON W/W Price: $3.05 |
| 20 |
6AW-11197-00-00 |
PLUG, BLIND Price: $81.55 |
| 21 |
93210-19758-00 |
O-RING Price: $8.49 |
| 22 |
6AW-1132S-00-00 |
ANODE 7 Price: $31.80 |
| 23 |
98780-05550-00 |
SCREW, FLAT HEAD Price: $3.55 |
| 24 |
6AW-1132T-00-00 |
ANODE 8 Price: $31.80 |
| 25 |
6AW-1132U-00-00 |
ANODE 9 Price: $31.80 |
| 26 |
98780-05550-00 |
SCREW, FLAT HEAD Price: $3.55 |
| 27 |
63P-11325-11-00 |
ANODE Price: $10.55 |
| 28 |
90151-06M02-00 |
SCREW, COUNTERSUNK Price: $3.55 |
| 29 |
6AW-41131-01-CA |
MANIFOLD, EXT. 1 Price: $864.25 |
| 30 |
93608-16M16-00 |
PIN, DOWEL Price: $2.85 |
| 31 |
6AW-41132-00-9S |
MANIFOLD, EXHAUST Price: $239.25 |
| 32 |
6AW-41134-02-00 |
GASKET, EXHAUST MANIFOLD Price: $37.85 |
| 33 |
90119-08117-00 |
BOLT, WITH WASHER Price: $7.70 |
| 34 |
6AW-41138-00-00 |
SEAL, EXT. 1 Price: $14.15 |
| 35 |
6AW-41135-00-00 |
GASKET, EXHAUST MANIFOLD Price: $42.45 |
| 36 |
6AW-45181-01-9S |
PLATE Price: $252.70 |
| 37 |
6AW-41136-00-00 |
GASKET, EXHAUST MANIFOLD 4 Price: $34.60 |
| 38 |
6AW-14711-00-9S |
MUFFLER 1 Price: $560.15 |
| 39 |
97E75-08535-00 |
BOLT, HEXAGON W/W Price: $3.75 |
| 40 |
93606-19M23-00 |
PIN, DOWEL Price: $2.55 |
| 41 |
6AW-45127-01-00 |
SEAL This part replaces 6AW-45127-00-00. Price: $12.45 |
| 42 |
69J-45123-00-00 |
GASKET, MUFFLER Price: $4.40 |
| 43 |
6AW-45111-10-8D |
CASING, UPPER Price: $1,711.85 |
| 44 |
6AW-45113-00-00 |
GASKET, UPPER CASING Price: $62.55 |
| 45 |
90119-10007-00 |
BOLT, WITH WASHER Price: $29.25 |
| 46 |
93608-16M16-00 |
PIN, DOWEL Price: $2.85 |
| 47 |
69J-15316-01-00 |
DAMPER 1 This part replaces 69J-15316-00-00. Price: $10.10 |
| 48 |
69J-45152-10-00 |
COVER, UPPER CASING 2 Price: $33.90 |
| 49 |
97D95-06012-00 |
BOLT, HEXAGON DEEP Price: $0.70 |
| 50 |
6AW-45318-00-00 |
BUSHING, DRIVE SHAFT Price: $101.50 |
| 51 |
93420-38091-00 |
CIRCLIP Price: $10.10 |
| 52 |
95D95-06010-00 |
BOLT, FLANGE DEEP Price: $0.80 |
