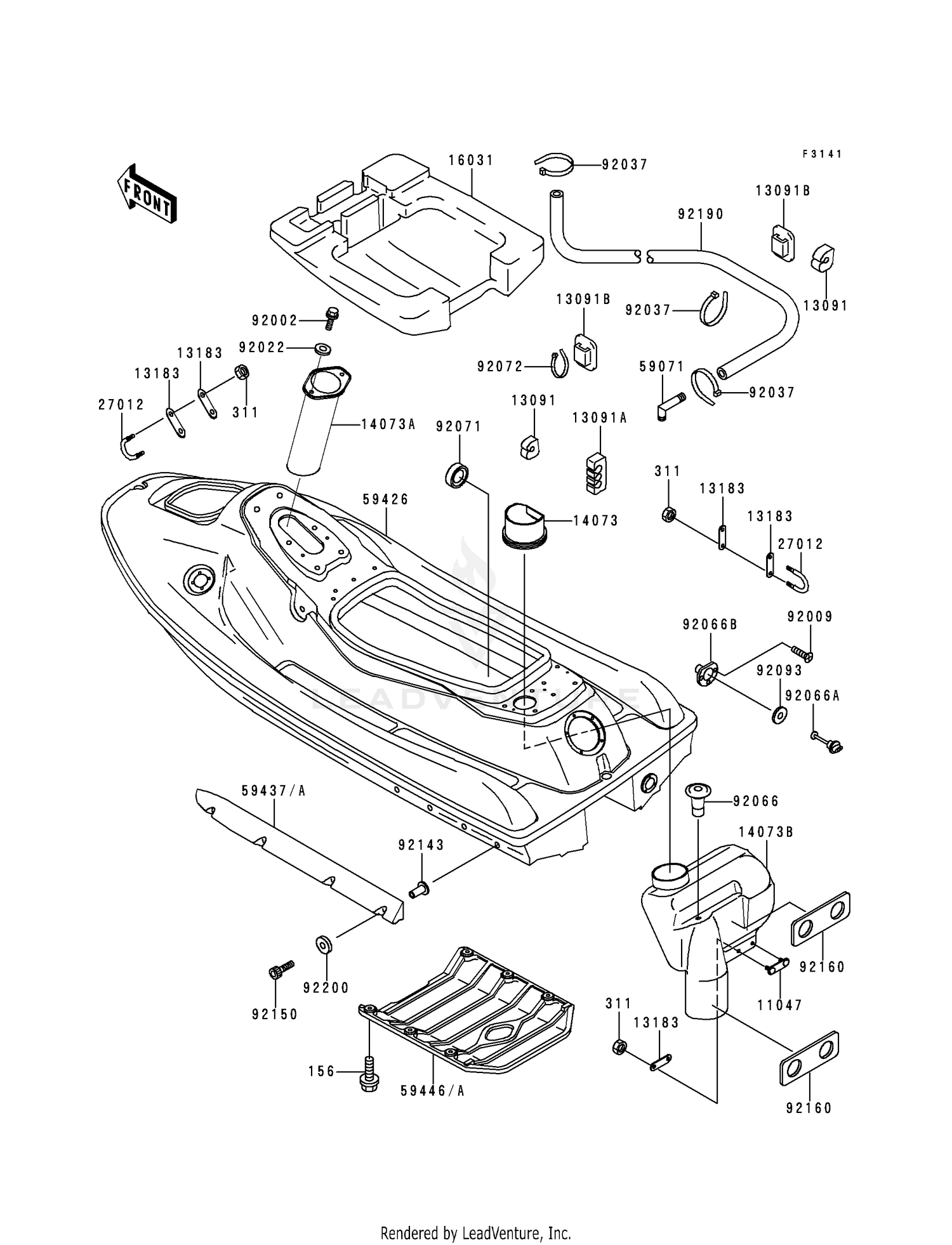

| Ref | Part Number | Description |
|---|
| 156 |
156R0620 |
BOLT-WP,6X20 Price: $3.65 |
| 311 |
311R0600 |
NUT-HEX,6MM Price: $0.70 |
| 11047 |
11052-3712 |
BRACKET,RR DUCT This part replaces 11047-3774. Price: $9.05 |
| 13091 |
13091-3712 |
HOLDER Price: $4.65 |
| 13091A |
13091-3758 |
HOLDER,TUBE Price: $11.19 |
| 13091B |
13091-3764 |
HOLDER Price: $5.17 |
| 13183 |
13183-3809 |
PLATE Price: $7.34 |
| 14073 |
14073-3739 |
DUCT,INTAKE Price: $37.23 |
| 14073A |
14073-3746 |
DUCT,FR Price: $66.45 |
| 14073B |
14073-3747 |
DUCT,RR,MAIN Price: $98.07 |
| 16031 |
16031-3819 |
FLOAT Price: $23.30 |
| 27012 |
27012-3761 |
HOOK Price: $36.68 |
| 59071 |
59071-3733 |
JOINT Price: $7.95 |
| 59437 |
59437-3706-RE |
STABILIZER,LH,J.S.VIO Price: $169.42 |
| 59437A |
59437-3707-RE |
STABILIZER,RH,J.S.VIO Price: $178.07 |
| 59446A |
59446-3747 |
COVER-JET PUMP Price: $124.48 |
| 92002 |
92002-3728 |
BOLT,6X16 Price: $4.69 |
| 92009 |
92009-3755 |
SCREW Price: $2.55 |
| 92022 |
92022-3710 |
WASHER,6.5X20X1.5 Price: $3.65 |
| 92037 |
92037-1173 |
CLAMP Price: $3.49 |
| 92066 |
92066-3706 |
PLUG Price: $5.14 |
| 92066A |
92066-3783-8U |
PLUG,RR,DRAIN,J.WHITE This part replaces 92066-3744. Price: $20.70 |
| 92066B |
92066-3747 |
PLUG,RR,DRAIN Price: $21.09 |
| 92071 |
92071-3783 |
GROMMET Price: $4.94 |
| 92072 |
92072-3867 |
BAND,L=203.2 This part replaces 92072-3778. Price: $1.91 |
| 92093 |
92093-3720 |
SEAL Price: $3.62 |
| 92143 |
92143-3739 |
COLLAR Price: $8.01 |
| 92150 |
92150-3847 |
BOLT,SOCKET,6X40 Price: $5.59 |
| 92160 |
92160-3722 |
DAMPER Price: $25.66 |
| 92190 |
92190-3896 |
TUBE,5X10X1000 Price: $24.71 |
