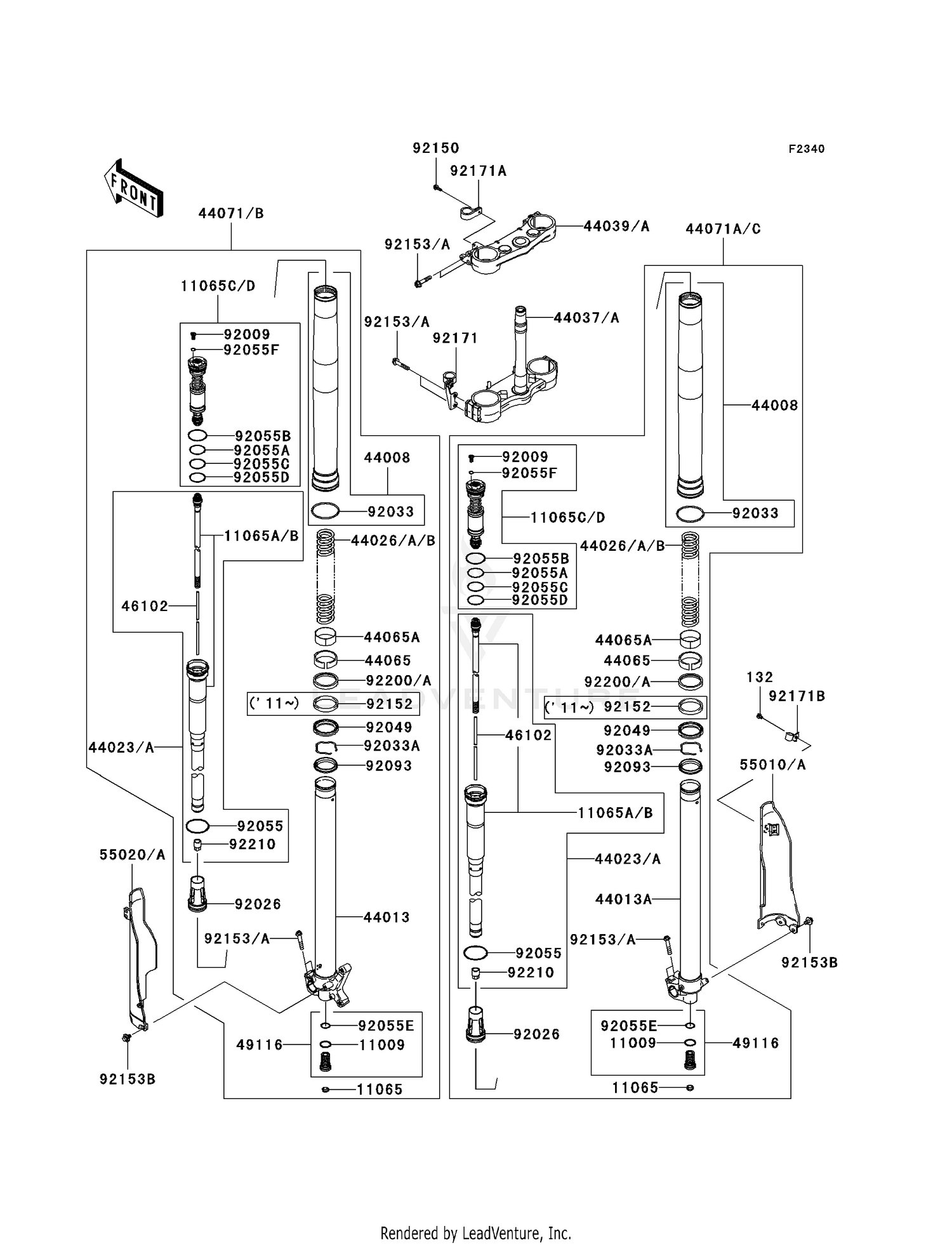

| Ref | Part Number | Description |
|---|
| 132 |
132BB0608 |
BOLT-FLANGED-SMALL,6X8 Price: $3.67 |
| 11009 |
11009-1592 |
GASKET,FORK CYLINDER BOLT Price: $6.16 |
| 11065 |
11065-0097 |
CAP Price: $5.60 |
| 11065A |
11065-0163-KX |
CAP,FORK,TOP,SILVER Price: $237.72 |
| 11065C |
11065-0235 |
CAP,BASE VALVE Price: $266.52 |
| 44008 |
44008-0031-828 |
PIPE-FORK OUTER,GOLD Price: $621.76 |
| 44013 |
44013-0075 |
PIPE-FORK INNER,LH Price: $593.73 |
| 44013A |
44013-0076 |
PIPE-FORK INNER,RH Price: $593.73 |
| 44023 |
44023-0055-KX |
CYLINDER-SET-FORK,SIL Price: $562.43 |
| 44026 |
44026-0104 |
SPRING-FRONT FORK Price: $88.39 |
| 44037A |
44037-0080-458 |
HOLDER-FORK UNDER,P.S Price: $563.11 |
| 44039A |
44039-0054-458 |
HOLDER-FORK UPPER,P.S Price: $246.87 |
| 44065 |
44065-0006 |
BUSHING-FRONT FORK Price: $19.09 |
| 44065A |
44065-1140 |
BUSHING-FRONT FORK Price: $21.13 |
| 44071B |
44071-0722-48R |
DAMPER-ASSY,F.OU(828) This part replaces 44071-5080. Price: $1,569.97 |
| 44071C |
44071-0723-48R |
DAMPER-ASSY,F.OU(828) This part replaces 44071-5081. Price: $1,569.97 |
| 46102 |
46102-0096 |
ROD,PISTON Price: $401.92 |
| 49116 |
49116-0015 |
VALVE-ASSY Price: $197.51 |
| 55010A |
55010-0001-6C |
GUARD-ASSY,FORK,RH,EB Price: $56.16 |
| 55020A |
55020-0172-6C |
GUARD,FORK,LH,EBONY Price: $56.16 |
| 92009 |
92009-1884 |
SCREW Price: $7.71 |
| 92026 |
92026-0097 |
SPACER Price: $29.10 |
| 92033 |
92033-0049 |
RING-SNAP Price: $4.61 |
| 92033A |
92033-1329 |
RING-SNAP Price: $6.89 |
| 92049 |
92049-0056 |
SEAL-OIL Price: $22.01 |
| 92055 |
92055-0104 |
RING-O Price: $5.65 |
| 92055A |
92055-0105 |
RING-O Price: $5.65 |
| 92055B |
92055-0106 |
RING-O Price: $5.65 |
| 92055C |
92055-0116 |
RING-O Price: $5.65 |
| 92055D |
92055-0117 |
RING-O Price: $5.65 |
| 92055E |
670B2018 |
O RING,18MM This part replaces 92055-1156. Price: $1.42 |
| 92055F |
92055-1441 |
RING-O,2.8X6.6X1.9 Price: $2.93 |
| 92093 |
92093-1566 |
SEAL,FORK OUTER TUBE Price: $20.74 |
| 92150 |
92150-1802 |
BOLT,5X16 Price: $5.00 |
| 92153 |
92153-0020 |
BOLT,8X40 Price: $5.59 |
| 92153B |
92153-0936 |
BOLT,FLANGED,6X14 Price: $2.97 |
| 92171 |
92171-0819 |
CLAMP Price: $16.97 |
| 92171A |
92171-0820 |
CLAMP Price: $7.75 |
| 92171B |
92171-1615 |
CLAMP Price: $11.93 |
| 92200 |
92200-0067 |
WASHER Price: $12.83 |
