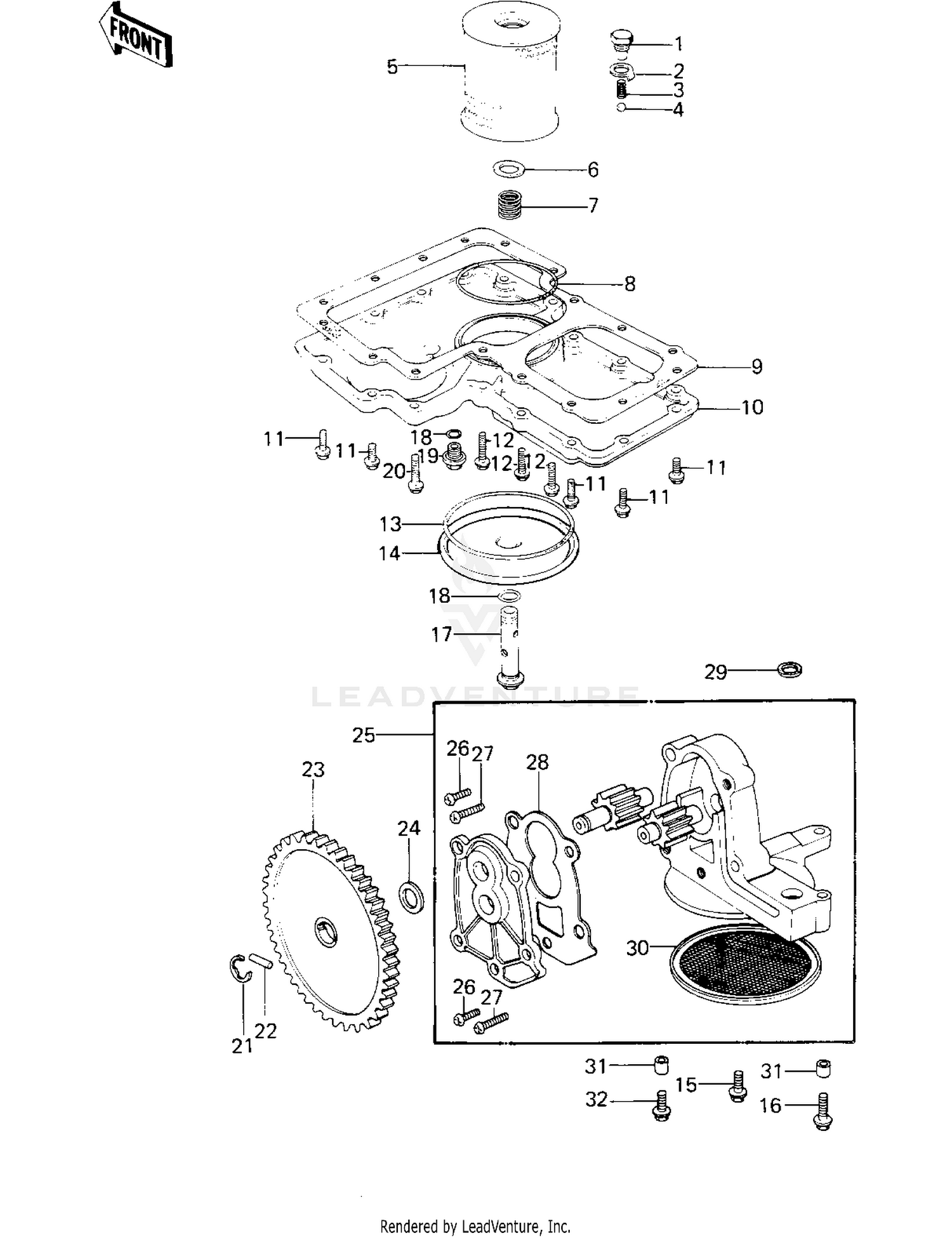

| Ref | Part Number | Description |
|---|
| 1 |
92003-095 |
BOLT Price: $15.89 |
| 2 |
92024-048 |
WASHER,LOCK Price: $3.42 |
| 3 |
92081-109 |
SPRING Price: $11.29 |
| 5 |
16099-002 |
ELEMENT,OIL FILTER Price: $16.20 |
| 6 |
92022-1012 |
WASHER,20.5X30X1 Price: $4.34 |
| 7 |
92081-1018 |
SPRING,OIL FILTER Price: $4.65 |
| 8 |
92055-052 |
O RING,91MM Price: $9.89 |
| 9 |
11061-1515 |
GASKET,OIL PAN This part replaces 11060-1074. Price: $49.19 |
| 10 |
49034-5020 |
PAN-OIL Price: $265.23 |
| 11 |
130BA0625 |
BOLT-FLANGED,6X25 This part replaces 130G0625. Price: $1.20 |
| 12 |
130BA0625 |
BOLT-FLANGED,6X25 This part replaces 130G0625. Price: $1.20 |
| 14 |
14025-1112 |
COVER,OIL FILTER Price: $31.05 |
| 15 |
92001-1352 |
BOLT,FLANGED,6X22 Price: $4.31 |
| 16 |
92001-165 |
BOLT,HEX HEAD,6X45 Price: $5.24 |
| 17 |
92001-1074 |
BOLT,OIL FILTER Price: $83.10 |
| 18 |
670B2022 |
O RING,22MM Price: $4.69 |
| 19 |
92001-1183 |
PLUG,OIL DRAIN Price: $54.58 |
| 20 |
130BA0650 |
BOLT-FLANGED,6X50 This part replaces 130G0650. Price: $1.03 |
| 21 |
482K7000 |
CIRCLIP,7MM Price: $5.86 |
| 22 |
551A0314 |
PIN-DOWEL,3X14 Price: $0.73 |
| 23 |
16085-019 |
GEAR,OIL PUMP 49T Price: $102.31 |
| 24 |
92022-1415 |
WASHER,10.2X18X1.0,SK5 This part replaces 92026-080. Price: $4.69 |
| 25 |
16082-5001 |
PUMP-ASSY-OIL Price: $637.41 |
| 26 |
220B0618 |
SCREW-PAN-CROS,6X18 Price: $3.35 |
| 27 |
220AA0628 |
SCREW-PAN HEAD,6X28 This part replaces 220B0628. Price: $3.67 |
| 28 |
11009-1029 |
GASKET,OIL PUMP Price: $7.51 |
| 29 |
92055-048 |
O RING,0.D=18MM Price: $4.80 |
| 30 |
16111-004 |
STRAINER,OIL PUMP Price: $44.36 |
| 31 |
92043-1302 |
PIN,DOWEL,8X10 Price: $1.03 |
