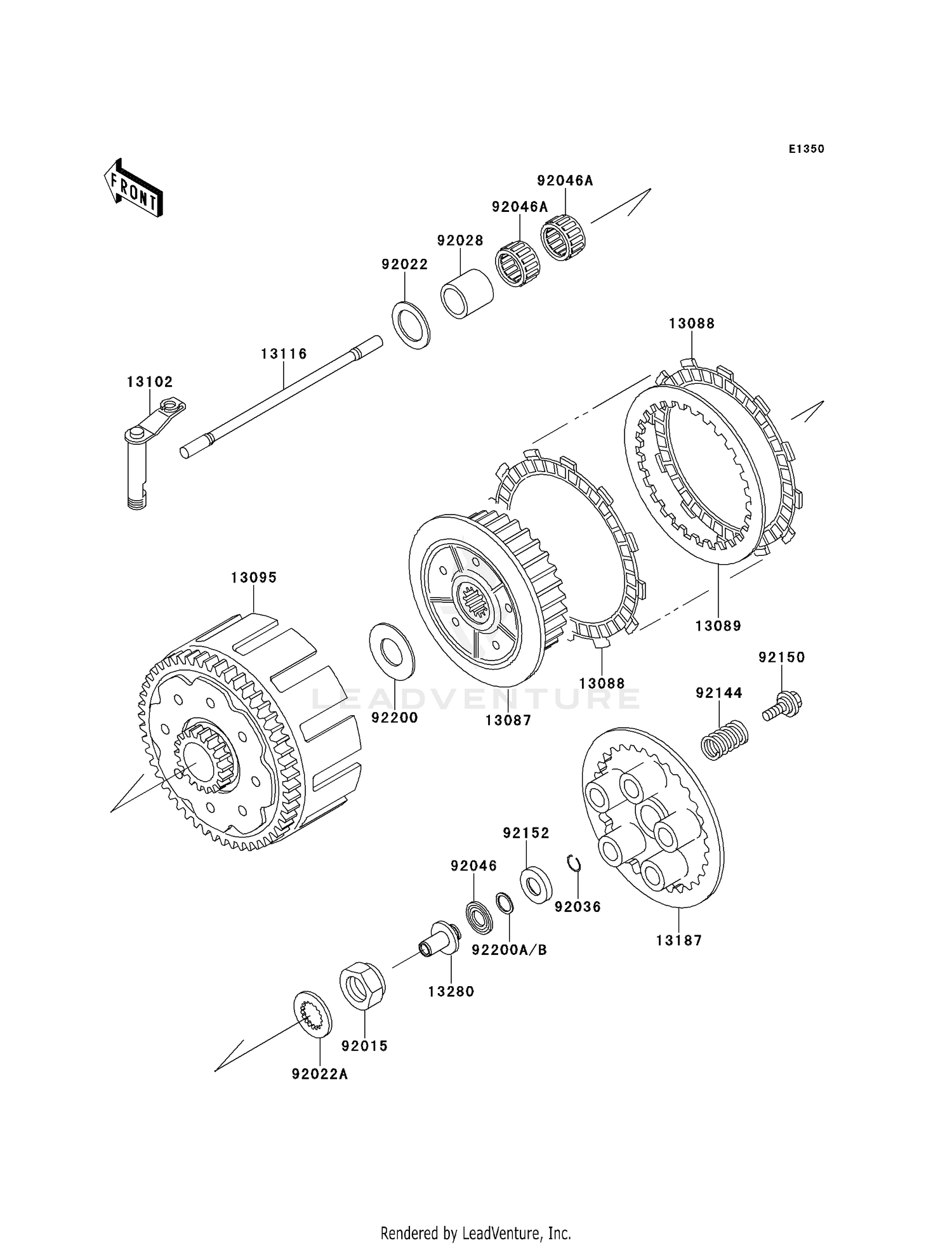

CLUTCH
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 13087 | 13087-1168 | HUB-CLUTCH Price: $132.19 |
| 13088 | 13088-1105 | PLATE-FRICTION Price: $15.50 |
| 13089 | 13089-1066 | PLATE-CLUTCH Price: $12.80 |
| 13095 | 13095-1368 | HOUSING-COMP-CLUTCH Price: $444.04 |
| 13102 | 13102-1154 | RELEASE-COMP-CLUTCH Price: $59.70 |
| 13116 | 13116-1162 | ROD-PUSH Price: $35.65 |
| 13187 | 13187-1087 | PLATE-CLUTCH OPERATIN Price: $77.96 |
| 13280 | 13280-1218 | HOLDER,CLUTCH RELEASE Price: $70.81 |
| 92015 | 92015-1725 | NUT,20MM Price: $18.89 |
| 92022 | 92022-1075 | WASHER PLAIN Price: $15.45 |
| 92022A | 92022-1942 | WASHER Price: $8.76 |
| 92028 | 92028-1702 | BUSHING Price: $56.40 |
| 92036 | 92036-007 | RING-SNAP,PISTON PIN Price: $3.89 |
| 92046 | 92046-1190 | BEARING-NEEDLE,FNTA-1326 Price: $11.33 |
| 92046A | 92046-1222 | BEARING-NEEDLE,K30X34 Price: $21.57 |
| 92144 | 92144-1351 | SPRING,CLUTCH Price: $8.93 |
| 92150 | 92150-1489 | BOLT,CLUTCH Price: $7.22 |
| 92152 | 92152-1282 | COLLAR Price: $5.68 |
| 92200 | 92200-1143 | WASHER,22.5X47X2 Price: $13.45 |
| 92200A | 92200-0045 | WASHER,13.4X25X1.0 This part replaces 92200-1547. Price: $3.73 |
