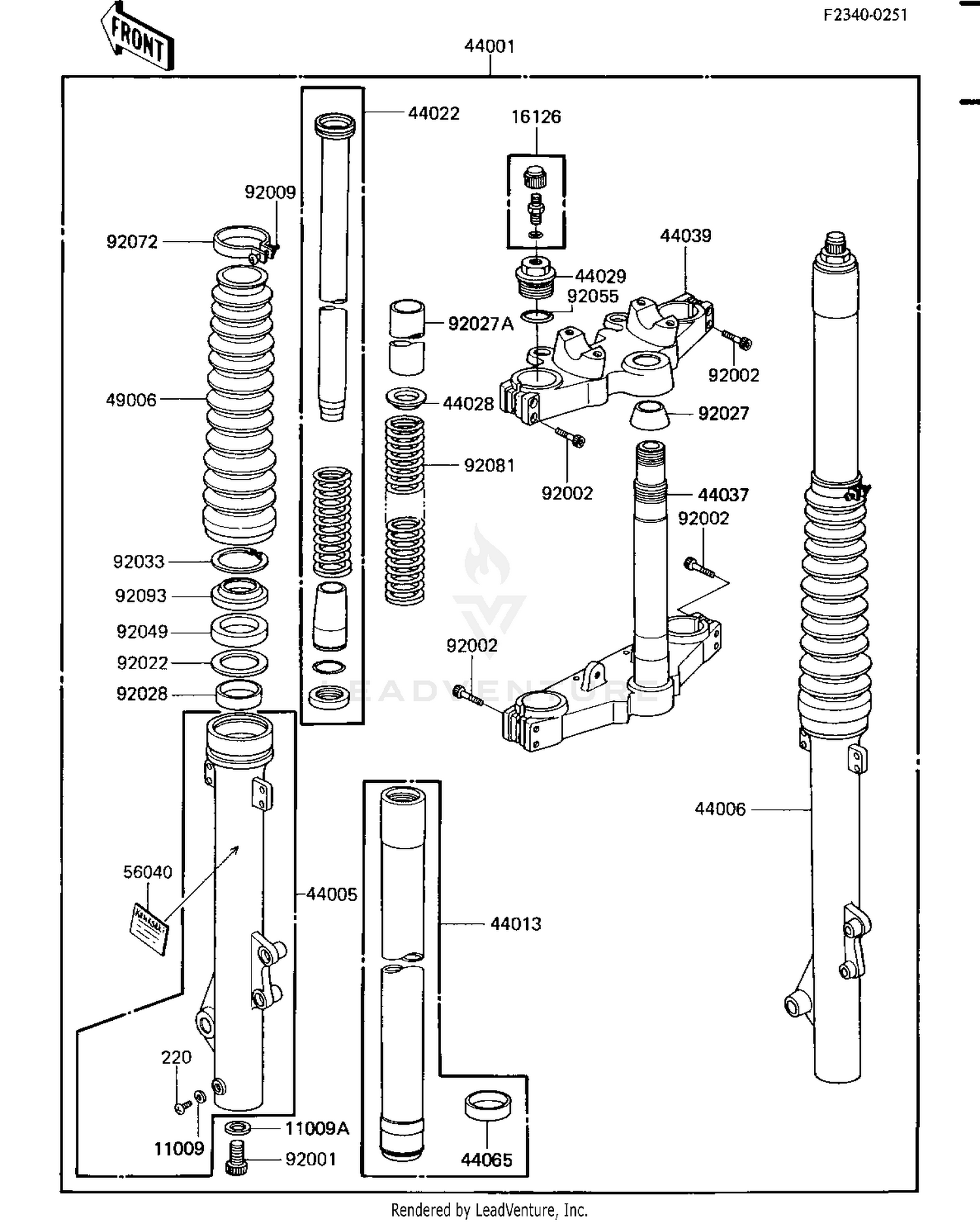

| Ref | Part Number | Description |
|---|
| 11009 |
44045-002 |
GASKET,FORK DRAIN PLUG Price: $5.18 |
| 11009A |
44045-057 |
GASKET,FORK CYLINDER Price: $4.86 |
| 16126 |
16126-1052 |
VALVE AIR Price: $35.06 |
| 44001 |
44001-1572-BD |
FORK-FRONT,BLACK Price: $1,031.79 |
| 44005 |
44005-1229 |
PIPE-LEFT FORK OUTER Price: $402.08 |
| 44006 |
44006-1229 |
PIPE-RIGHT FORK OUTER Price: $402.08 |
| 44013 |
44013-1227 |
PIPE-FORK INNER Price: $372.72 |
| 44022 |
44022-1177 |
CYLINDER-FORK Price: $155.62 |
| 44028 |
44028-1004 |
GUIDE,FORK SPRING Price: $11.28 |
| 44029 |
44029-1042 |
SEAT-FORK SPRING Price: $72.14 |
| 44037 |
44037-1171 |
HOLDER-FORK-UNDER Price: $227.83 |
| 44039 |
44039-1101 |
HOLDER-FORK UPPER Price: $151.59 |
| 44065 |
92028-1126 |
BUSHING,FORK PIPE Price: $49.26 |
| 49006 |
49006-1166-BD |
BOOT,FORK,BLACK Price: $80.58 |
| 56040 |
56040-1120 |
LABEL,FRONT FORK Price: $6.10 |
| 92001 |
44041-040 |
BOLT,SOCKET,FORK CYLINDER Price: $6.57 |
| 92002 |
92002-1277 |
BOLT,SOCKET,8X32 Price: $9.49 |
| 92009 |
92009-1348 |
SCREW Price: $5.18 |
| 92022 |
92022-1262 |
WASHER,FORK OUTER PIPE Price: $8.60 |
| 92027 |
92027-1791 |
COLLAR,UPPER BRACKET Price: $65.90 |
| 92027A |
92027-1872 |
COLLAR,L=165 Price: $43.78 |
| 92028 |
44065-1091 |
BUSHING-FRONT FORK,OU Price: $25.96 |
| 92033 |
92033-1047 |
RING-SNAP,FORK Price: $6.46 |
| 92049 |
92049-1180 |
SEAL-OIL,FRONT FORK Price: $22.14 |
| 92072 |
92037-1321 |
CLAMP, BOOT, BLACK This part replaces 92072-1171. Price: $9.52 |
| 92081 |
92081-1871 |
SPRING Price: $79.82 |
| 92093 |
92093-1166 |
SEAL,FRONT FORK Price: $18.22 |
