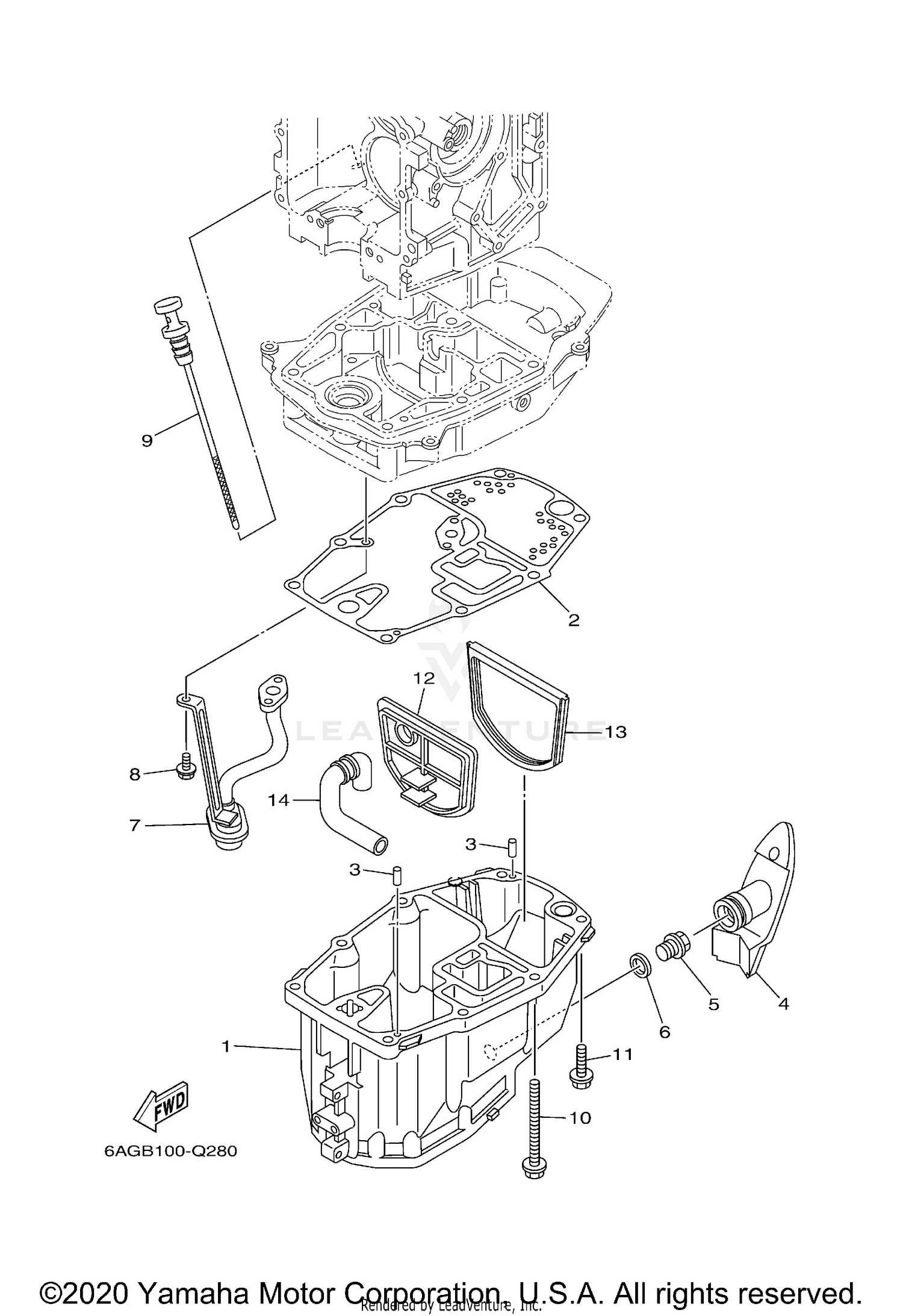

OIL PAN
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6AH-15311-00-CA | OIL PAN Price: $472.90 |
| 3 | 93604-10M03-00 | PIN, DOWEL This part replaces 93604-12M07-00. Price: $5.20 |
| 4 | 6AH-15316-00-00 | DAMPER 1 Price: $15.65 |
| 5 | 90340-14M06-00 | PLUG, STRAIGHT SCREW Price: $14.20 |
| 6 | 90430-14M09-00 | GASKET Price: $2.55 |
| 7 | 6AH-13411-00-00 | STRAINER, OIL Price: $63.55 |
| 8 | 97513-06516-00 | BOLT, WITH WASHER Price: $1.95 |
| 9 | 6AH-15362-10-00 | PLUG, OIL LEVEL Price: $17.70 |
| 10 | 90119-08103-00 | BOLT, WITH WASHER Price: $13.00 |
| 11 | 97E75-08530-00 | BOLT, HEXAGON W/W Price: $1.90 |
| 12 | 6AH-45126-00-00 | PLATE, SEAL DAMPER Price: $12.75 |
| 13 | 6AH-45115-00-00 | GASKET, UPPER CASING Price: $19.50 |
