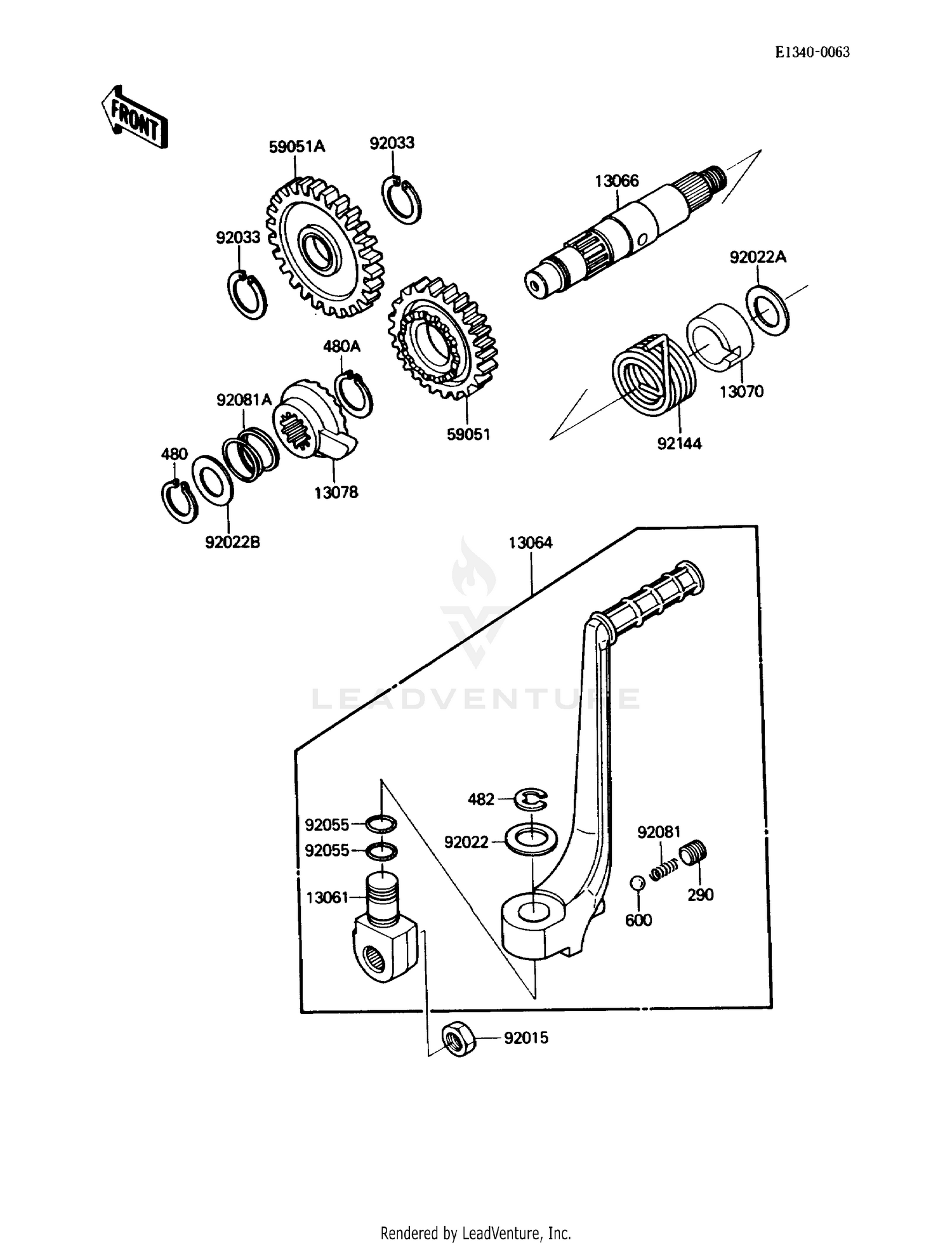

| Ref | Part Number | Description |
|---|
| 290 |
290Q0816 |
SCREW, 8X16 Price: $4.58 |
| 480 |
480J1600 |
CIRCLIP-TYPE-C,16MM Price: $4.31 |
| 480A |
480J1800 |
CIRCLIP-TYPE-C,18MM Price: $1.28 |
| 482 |
482L0100 |
CIRCLIP-TYPE-E,10MM Price: $0.73 |
| 13061 |
13061-1055 |
BOSS,KICK PEDAL Price: $101.72 |
| 13064 |
13064-1132 |
LEVER-ASSY-KICK,PEDAL Price: $159.95 |
| 13066 |
13066-1065 |
SHAFT-KICK Price: $63.12 |
| 13070 |
13070-1063 |
GUIDE,KICK SPRING Price: $21.09 |
| 13078 |
13078-1061 |
RATCHET This part replaces 13078-1007. Price: $82.60 |
| 59051 |
59051-1230 |
GEAR-SPUR This part replaces 59051-1177. Price: $113.16 |
| 59051A |
59051-1271 |
GEAR,KICKSTARTER IDLE This part replaces 59051-1178. Price: $126.85 |
| 92015 |
92015-1001 |
NUT,12MM Price: $6.34 |
| 92022 |
92022-1019 |
WASHER,PLAIN Price: $5.23 |
| 92022A |
92022-271 |
WASHER,18.3X22X0.5 Price: $5.52 |
| 92022B |
92022-315 |
WASHER,16.8X22X0.5 Price: $6.22 |
| 92033 |
92033-029 |
RING-SNAP,18MM Price: $9.82 |
| 92055 |
92055-072 |
O RING,11.5MM Price: $6.46 |
| 92081 |
92081-020 |
SPRING,KICK PEDAL Price: $4.26 |
| 92081A |
92081-122 |
SPRING,RATCHET Price: $8.79 |
| 92144 |
92145-1517 |
SPRING,KICKSTARTER This part replaces 92144-1076. Price: $26.59 |
