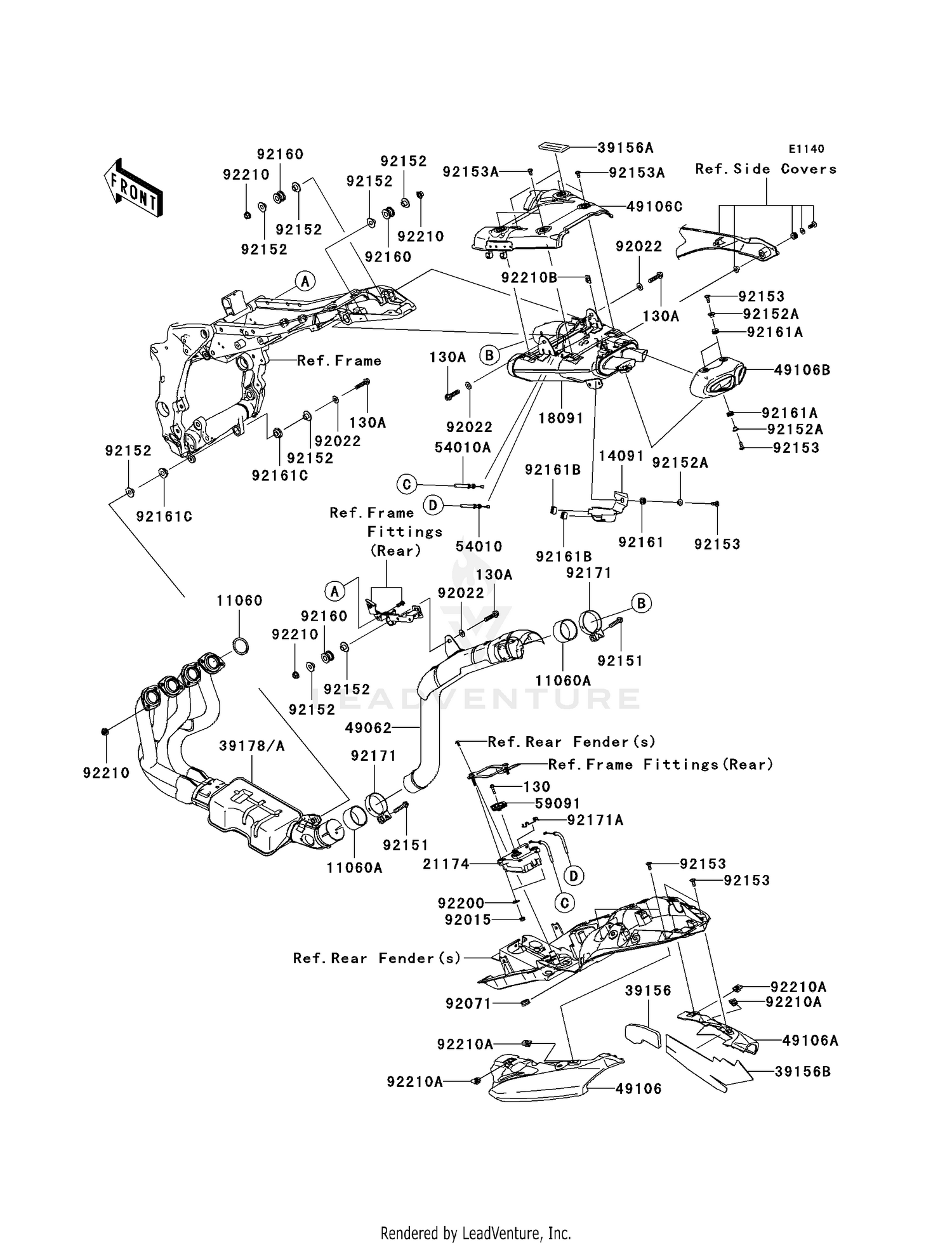

| Ref | Part Number | Description |
|---|
| 130 |
130BB0518 |
BOLT-FLANGED,5X18 Price: $2.03 |
| 11060 |
11061-1387 |
GASKET,EXHAUST PIPE This part replaces 11060-1203. Price: $10.80 |
| 11060A |
11060-1330 |
GASKET,EXHAUST PIPE H Price: $25.39 |
| 14091 |
14091-0792 |
COVER,PULLEY Price: $33.04 |
| 18091 |
18091-0329 |
BODY-COMP-MUFFLER Price: $1,032.48 |
| 21174 |
21174-0005 |
MOTOR-ELECTRIC This part replaces 21174-0003. Price: $337.67 |
| 39156 |
39156-0276 |
PAD,SIDE COVER,RH Price: $75.91 |
| 39156A |
39156-0278 |
PAD,SILENCER BRACKET Price: $15.11 |
| 39156B |
39156-0279 |
PAD,HEAT GUARD Price: $15.11 |
| 49062 |
49062-0033 |
PIPE-COMP-EXHAUST Price: $308.05 |
| 49106 |
49106-0055 |
COVER-MUFFLER,SIDE,LH Price: $71.09 |
| 49106A |
49106-0056 |
COVER-MUFFLER,SIDE,RH Price: $71.09 |
| 49106B |
49106-0058 |
COVER-MUFFLER,TAIL EN Price: $131.33 |
| 49106C |
49106-0073 |
COVER-MUFFLER,UPP Price: $147.61 |
| 54010 |
54010-0072 |
CABLE,WHITE Price: $71.23 |
| 54010A |
54010-0073 |
CABLE,BLACK Price: $75.92 |
| 59091 |
59091-0007 |
PULLEY Price: $22.29 |
| 92015 |
92015-1367 |
NUT,FLANGED,6MM Price: $3.69 |
| 92022 |
92022-3730 |
WASHER,8.5X19X1.2 Price: $4.31 |
| 92071 |
92071-0011 |
GROMMET Price: $3.95 |
| 92151 |
92151-1532 |
BOLT,FLANGED,8X40 Price: $2.67 |
| 92152 |
92152-0188 |
COLLAR Price: $3.73 |
| 92152A |
92152-0286 |
COLLAR,6.3X8.3X16 Price: $5.65 |
| 92153 |
92153-0817 |
BOLT,SOCKET,6X16 Price: $2.15 |
| 92153A |
92153-1275 |
BOLT,6X12 Price: $2.68 |
| 92160 |
92160-1116 |
DAMPER,MUFFLER MOUNT Price: $5.52 |
| 92161 |
92161-0308 |
DAMPER Price: $3.90 |
| 92161A |
92161-0664 |
DAMPER,8.3X16X6.4 This part replaces 92161-0419. Price: $10.05 |
| 92161B |
92161-0475 |
DAMPER Price: $10.30 |
| 92161C |
92161-0532 |
DAMPER,MANIFOLD MOUNT Price: $7.82 |
| 92171 |
92171-0133 |
CLAMP Price: $20.01 |
| 92171A |
92171-0292 |
CLAMP Price: $10.11 |
| 92200 |
92200-0078 |
WASHER Price: $2.12 |
| 92210 |
92210-0121 |
NUT,8MM Price: $2.26 |
| 92210A |
92210-0130 |
NUT Price: $5.57 |
| 92210B |
92210-1352 |
NUT,PLATE,6MM Price: $2.41 |
