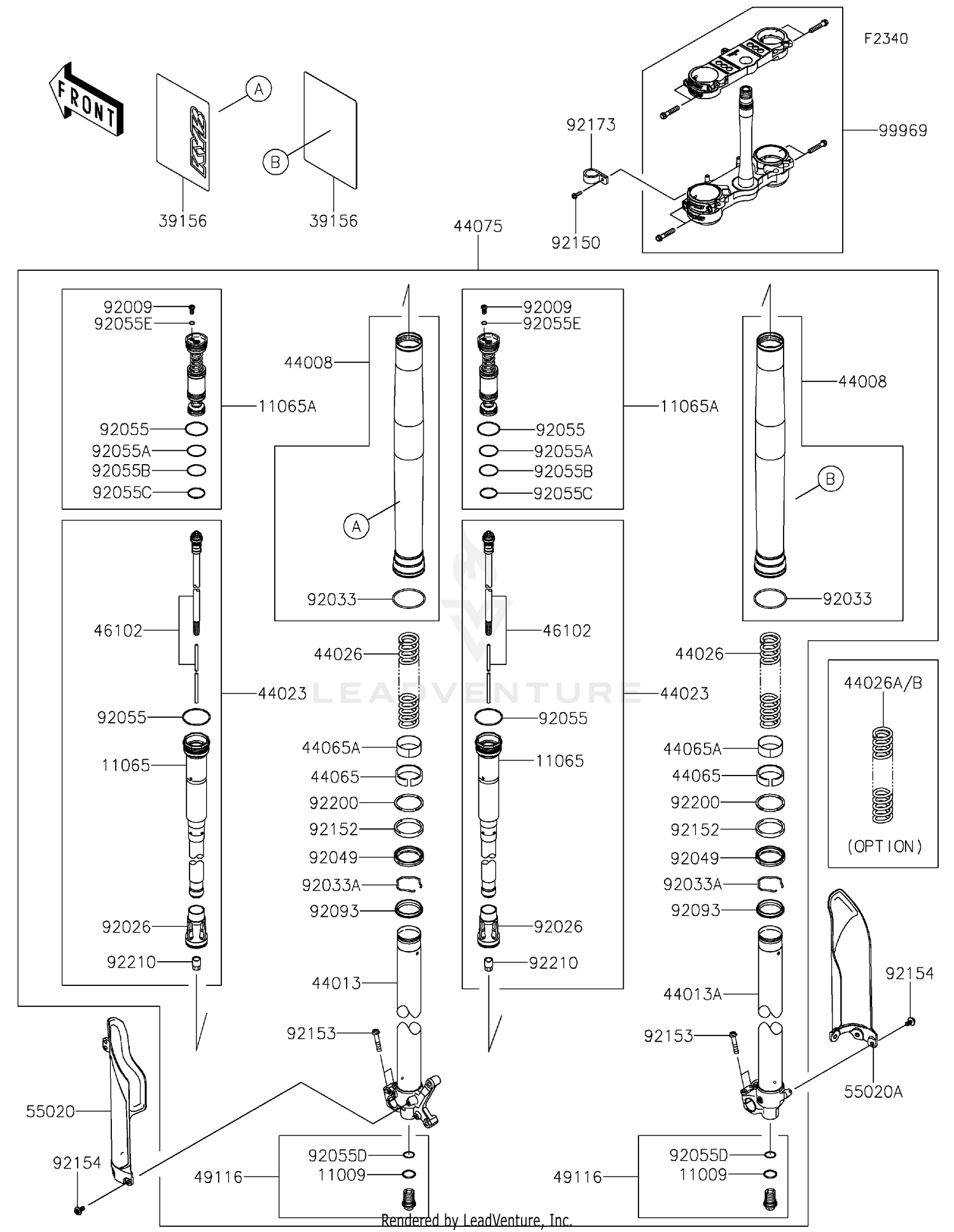

| Ref | Part Number | Description |
|---|
| 11009 |
11009-1592 |
GASKET,FORK CYLINDER BOLT Price: $6.16 |
| 11065 |
11065-1333 |
CAP,CYLINDER COMP Price: $363.62 |
| 11065A |
11065-1418 |
CAP,FORK Price: $402.23 |
| 39156 |
39156-2799 |
PAD,PROTECTION Price: $43.27 |
| 44008 |
44008-0112 |
PIPE-FORK OUTER Price: $746.53 |
| 44013 |
44013-0396 |
PIPE-FORK INNER,LH Price: $970.66 |
| 44013A |
44013-0397 |
PIPE-FORK INNER,RH Price: $970.66 |
| 44023 |
44023-0168 |
CYLINDER-SET-FORK Price: $928.70 |
| 44026 |
44026-0238 |
SPRING-FRONT FORK Price: $117.15 |
| 44026A |
44026-0242 |
SPRING-FRONT FORK,K=4.9N/MM Price: $100.25 |
| 44026B |
44026-0243 |
SPRING-FRONT FORK,K=5.1N/MM Price: $100.25 |
| 44065 |
44065-0021 |
BUSHING-FRONT FORK Price: $21.49 |
| 44065A |
44065-0022 |
BUSHING-FRONT FORK Price: $22.48 |
| 44075 |
44075-0504 |
DAMPER-SET-FORK Price: $4,924.59 |
| 46102 |
46102-0654 |
ROD,PISTON Price: $521.44 |
| 49116 |
49116-0721 |
VALVE-ASSY Price: $235.92 |
| 55020 |
55020-2231-6C |
GUARD,FORK,LH,EBONY Price: $55.96 |
| 55020A |
55020-2232-6C |
GUARD,FORK,RH,EBONY Price: $55.96 |
| 92009 |
92009-1884 |
SCREW Price: $7.71 |
| 92026 |
92026-0878 |
SPACER Price: $71.13 |
| 92033 |
92033-0075 |
RING-SNAP Price: $4.61 |
| 92033A |
92033-1329 |
RING-SNAP Price: $6.89 |
| 92049 |
92049-0117 |
SEAL-OIL Price: $25.10 |
| 92055 |
92055-0106 |
RING-O Price: $5.65 |
| 92055A |
92055-0116 |
RING-O Price: $5.65 |
| 92055B |
92055-0117 |
RING-O Price: $5.65 |
| 92055C |
92055-0730 |
RING-O Price: $5.42 |
| 92055D |
670B2018 |
O RING,18MM This part replaces 92055-1156. Price: $1.42 |
| 92055E |
92055-1441 |
RING-O,2.8X6.6X1.9 Price: $2.93 |
| 92093 |
92093-1566 |
SEAL,FORK OUTER TUBE Price: $20.74 |
| 92150 |
92150-1802 |
BOLT,5X16 Price: $5.00 |
| 92152 |
92152-0824 |
COLLAR Price: $7.24 |
| 92153 |
92153-0020 |
BOLT,8X40 Price: $5.59 |
| 92154 |
92154-3776 |
BOLT Price: $6.63 |
| 92173 |
92173-2196 |
CLAMP Price: $15.78 |
| 92200 |
92200-1615 |
WASHER Price: $12.25 |
| 92210 |
92210-0337 |
NUT Price: $23.02 |
