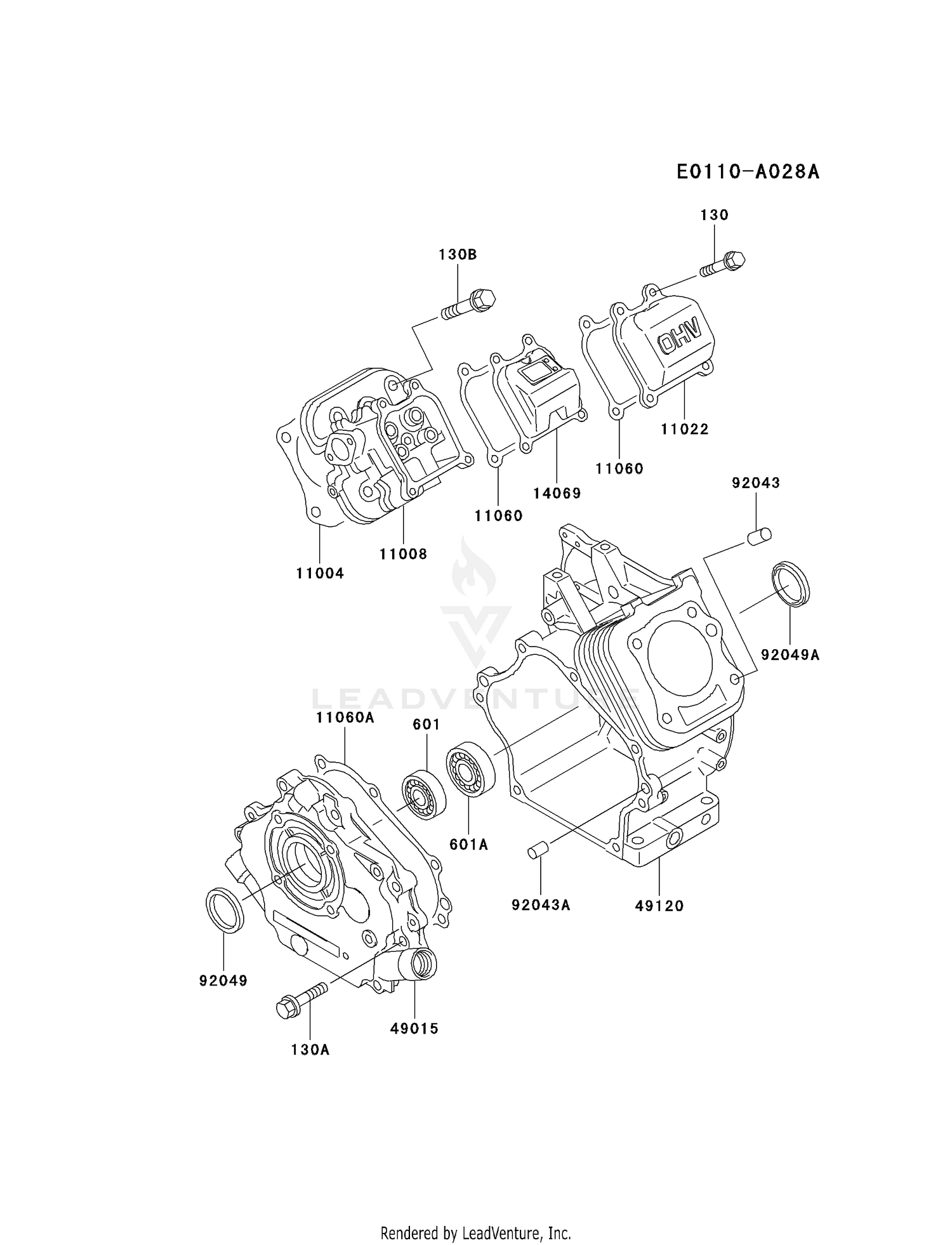

CYLINDER/CRANKCASE

CYLINDER/CRANKCASE

Parts (16)

RefPart NumberDescription
130 130AB0612 BOLT-FLANGED,6X12 This part replaces 130C0612. Price: $0.67
130A 130CA0835 BOLT-FLANGED,8X35 This part replaces 130G0835. Price: $1.78
130B 130CA0845 BOLT-FLANGED,8X45 This part replaces 130T0845. Price: $1.22
601 601B6205 BEARING BALL #6205 This part replaces 601A6205. Price: $19.57
11004 11004-2112 GASKET-HEAD Price: $8.18
11008 11008-2110 HEAD-COMP-CYLINDER This part replaces 11008-2077. Price: $168.22
11022 11022-2065-9H CASE-ROCKER Price: $16.17
11060 11060-2291 GASKET,ROCKER CASE This part replaces 11060-2048. Price: $2.73
11060A 11060-2060 GASKET,CRANKCASE COVR Price: $5.69
14069 14069-2080 BREATHER Price: $9.71
49015 49015-6106 COVER-CRANKCASE Price: $88.68
49120 49120-2245 CRANKCASE-COMP Price: $326.15
92043 92043-1037 PIN,DOWEL,10X14 Price: $0.74
92043A 92043-1263 PIN,6.2X8X14 Price: $0.43
92049 92049-2282 SEAL-OIL This part replaces 92049-2065. Price: $5.17
92049A 92049-2225 SEAL-OIL This part replaces 92049-2198. Price: $7.71
