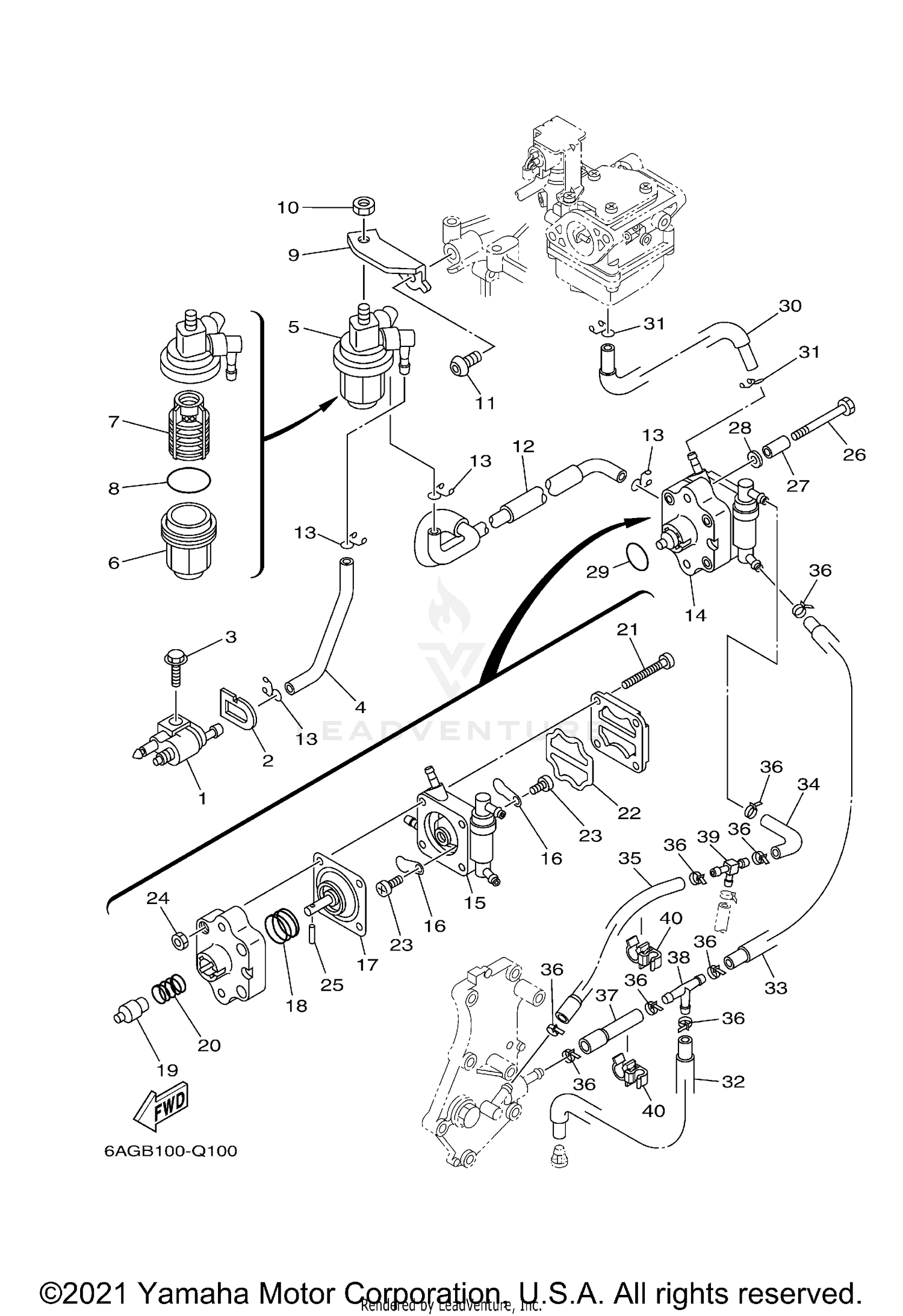

| Ref | Part Number | Description |
|---|
| 1 |
6G1-24304-11-00 |
FUEL PIPE JOINT COMP. 1 This part replaces 6G1-24304-10-00. Price: $35.20 |
| 2 |
61N-24329-01-00 |
SEAL This part replaces 61N-24329-00-00. Price: $7.30 |
| 3 |
95D95-06020-00 |
BOLT, FLANGE DEEP Price: $5.35 |
| 4 |
6AH-24311-10-00 |
PIPE, FUEL 1 Price: $13.45 |
| 5 |
61N-24560-10-00 |
FILTER ASSY Price: $41.15 |
| 6 |
61N-24521-00-00 |
CUP, FILTER Price: $20.65 |
| 7 |
61N-24563-10-00 |
ELEMENT, FILTER Price: $13.15 |
| 8 |
93210-32738-00 |
O-RING Price: $3.35 |
| 9 |
6AH-24566-00-00 |
BRACKET, FILTER Price: $12.00 |
| 10 |
99780-08600-00 |
NUT, HEX. This part replaces 95380-08600-00. Price: $2.75 |
| 11 |
90111-08055-00 |
BOLT,HEX. SOCKET BUTTON Price: $5.65 |
| 12 |
6AH-24312-10-00 |
PIPE 2 Price: $53.85 |
| 13 |
90467-09M09-00 |
CLIP This part replaces 90467-09M17-00. Price: $1.15 |
| 14 |
6AH-24410-01-00 |
FUEL PUMP ASSY This part replaces 6AH-24410-00-00. Price: $105.10 |
| 15 |
6AH-24413-00-00 |
BODY 2 Price: $97.15 |
| 16 |
62Y-24421-01-00 |
VALVE, CHECK This part replaces 6A0-24421-01-00. Price: $15.30 |
| 17 |
66M-24411-12-00 |
DIAPHRAGM This part replaces 66M-24411-11-00. Price: $66.80 |
| 18 |
66M-24423-00-00 |
SPRING, DIAPHRAGM Price: $7.85 |
| 19 |
66M-13131-10-00 |
PLUNGER Price: $35.90 |
| 20 |
66M-24454-00-00 |
SPRING Price: $7.15 |
| 21 |
66M-24444-00-00 |
SCREW Price: $5.35 |
| 23 |
6E7-14325-00-00 |
SCREW, PAN HEAD Price: $5.00 |
| 24 |
95303-04600-00 |
NUT This part replaces 95380-04600-00. Price: $4.75 |
| 25 |
66M-24374-00-00 |
PIN Price: $6.15 |
| 26 |
90101-06032-00 |
BOLT Price: $1.50 |
| 27 |
36Y-83913-01-00 |
COLLAR,LEVER 1 This part replaces 90387-06M17-00. Price: $10.99 |
| 28 |
90201-06106-00 |
WASHER, PLATE Price: $99,999.99 |
| 29 |
93210-20M65-00 |
O-RING Price: $5.50 |
| 30 |
6AH-24313-10-00 |
PIPE 3 Price: $29.85 |
| 31 |
90467-09M09-00 |
CLIP This part replaces 90467-09M17-00. Price: $1.15 |
| 32 |
6AH-24321-00-00 |
PIPE 10 Price: $11.80 |
| 33 |
6AH-24322-00-00 |
PIPE 11 Price: $4.40 |
| 34 |
90445-09068-00 |
HOSE (L110) This part replaces 90445-09026-00. Price: $6.30 |
| 35 |
6AH-24323-00-00 |
PIPE 12 Price: $4.30 |
| 36 |
90465-10098-00 |
CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 37 |
6AH-24324-00-00 |
PIPE 13 Price: $3.65 |
| 38 |
688-24378-00-00 |
PIPE, JOINT 3 Price: $16.50 |
| 39 |
6C5-24378-00-00 |
PIPE, JOINT 3 Price: $6.40 |
