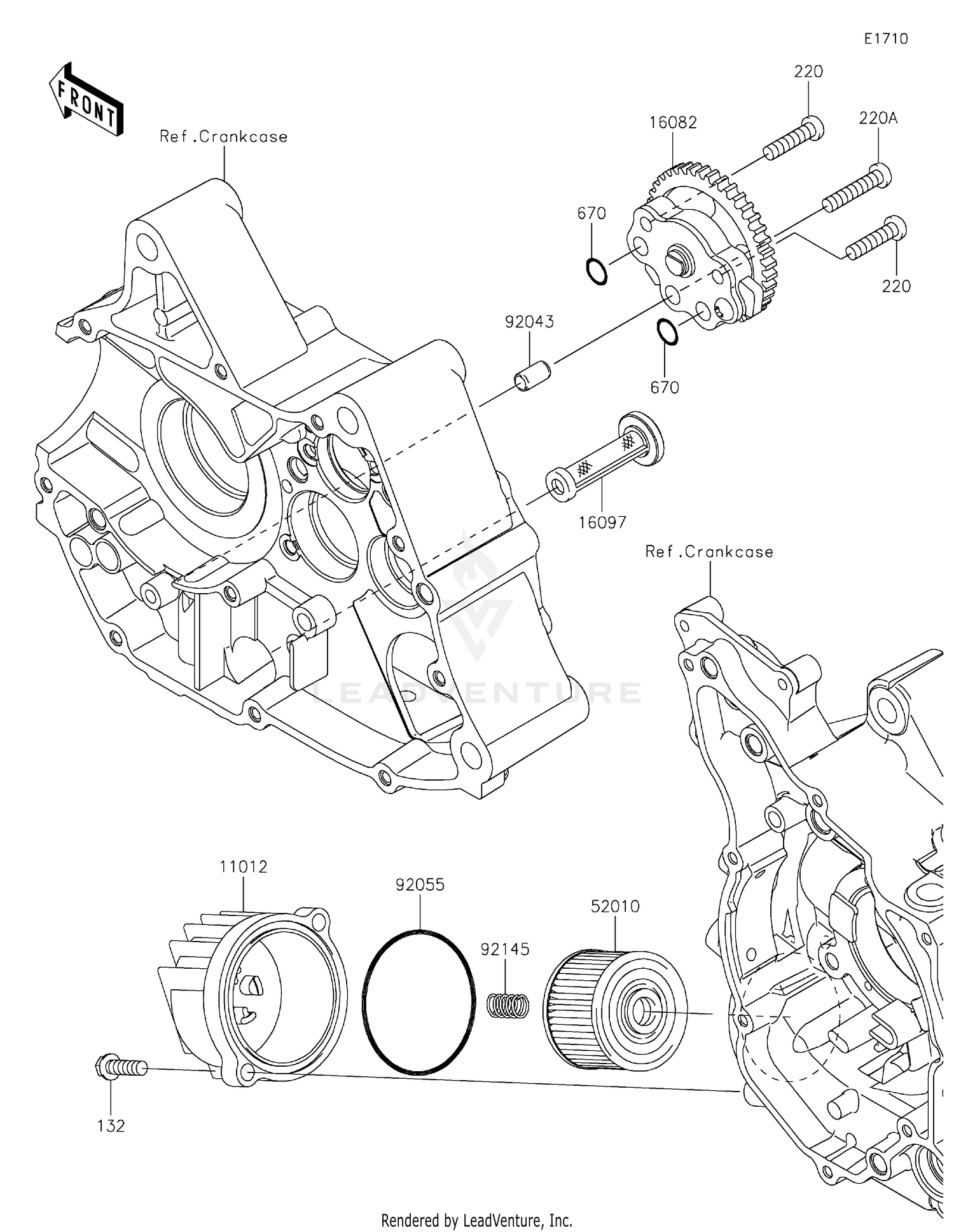

| Ref | Part Number | Description |
|---|
| 1 |
224061201 |
Flat Washer Price: $1.39 |
| 2 |
241151640 |
Hex. Flange Screw K50 X 2.24 X 16 Price: $1.49 |
| 3 |
293650099 |
Crimp Clamp Price: $4.39 |
| 4 |
293650100 |
Oetiker Clamp Price: $3.49 |
| 5 |
293750002 |
Tie Wrap 142 mm Price: $1.25 |
| 6 |
414420700 |
Spring Clamp Price: $0.74 |
| 7 |
414554800 |
Spring Clamp Price: $0.90 |
| 12 |
219704425 |
Tubing 6 Mm 3000Mm Long Price: $13.99 |
| 13 |
516004648 |
Protection Decal / Lexan Price: $11.99 |
| 15 |
519000179 |
Bracket Price: $10.49 |
| 18 |
219704429 |
HOSE 3.5 MM 1000MM LONG - Call your local BRP dealership Price: $11.49 |
| 19 |
219704430 |
HOSE 2.5 MM 1000MM LONG - Call your local BRP dealership Price: $16.49 |
| 23 |
519000245 |
Bracket Price: $15.99 |
| 24 |
519000273 |
Cap Price: $29.99 |
| 25 |
519000376 |
Pump_Hydraulic This part replaces 519000305. Price: $204.99 |
| 26 |
519000311 |
Oil Tank Price: $129.99 |
| 27 |
219704410 |
Polyurethane Hose 10000Mm Long Price: $57.99 |
| 28 |
516008439 |
Oil Warning Decal This part replaces 516007443. Price: $11.99 |
| 132 |
132BA0620 |
BOLT-FLANGED-SMALL,6X20 Price: $2.49 |
| 220 |
220AA0625 |
SCREW-PAN-CROS,6X25 Price: $2.78 |
| 220A |
220AA0630 |
SCREW-PAN-CROS,6X30 Price: $3.67 |
| 670 |
670B1510 |
O RING,9.8X1.9 Price: $4.31 |
| 11012 |
11012-1980 |
CAP Price: $14.58 |
| 16082 |
16082-1052 |
PUMP-ASSY-OIL Price: $85.53 |
| 16097 |
16097-1071 |
FILTER-ASSY-OIL Price: $15.95 |
| 52010 |
52010-1053 |
ELEMENT-OIL FILTER Price: $9.10 |
| 92043 |
92043-1263 |
PIN,6.2X8X14 Price: $0.43 |
| 92055 |
92055-3018 |
RING-O,59.6X2.4 Price: $6.22 |
