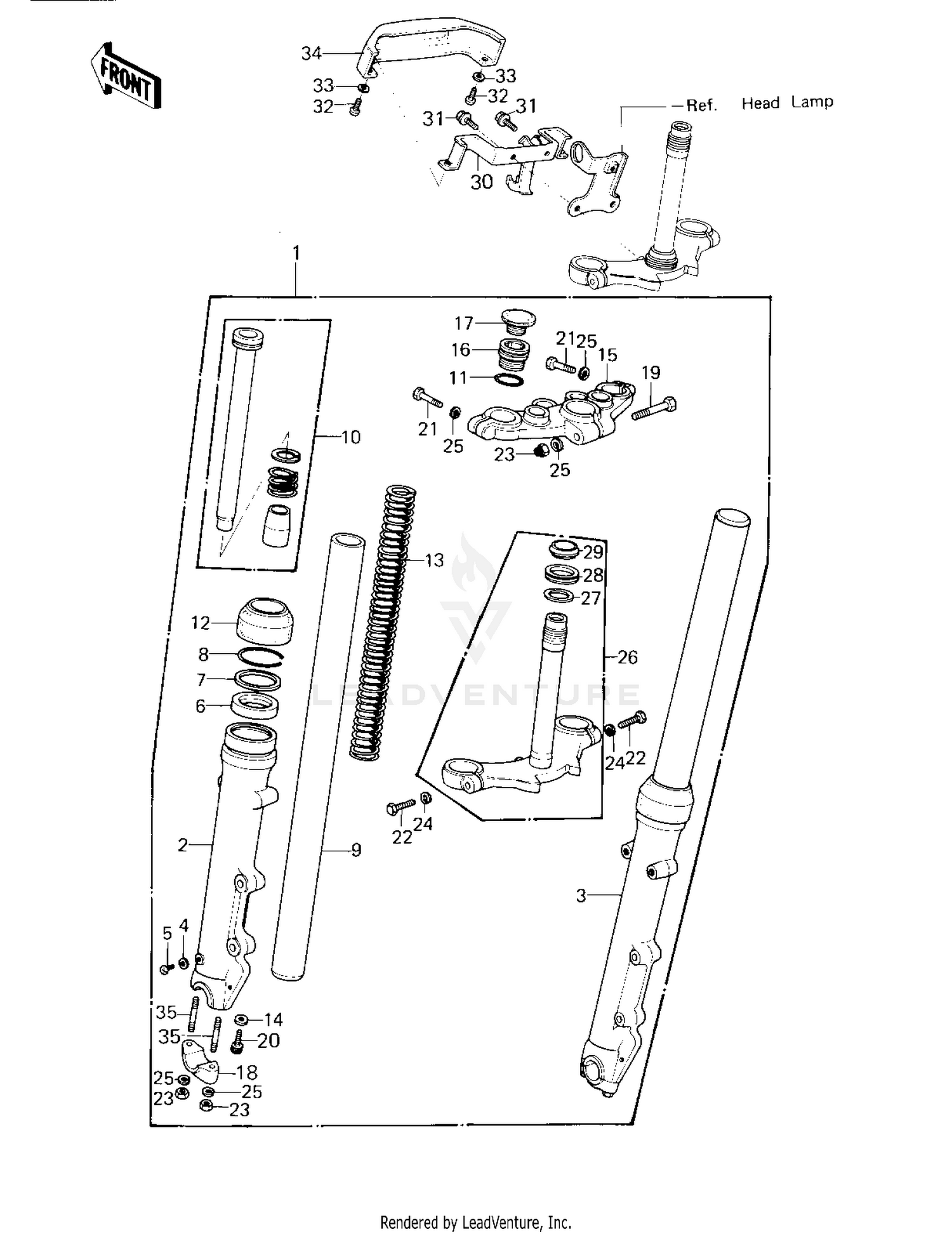

| Ref | Part Number | Description |
|---|
| 1 |
44001-1215 |
FORK-FRONT Price: $1,256.61 |
| 2 |
44005-1031 |
TUBE,LH,FORK OUTER Price: $362.15 |
| 3 |
44006-1031 |
TUBE,RH,FORK OUTER Price: $257.41 |
| 4 |
44045-002 |
GASKET,FORK DRAIN PLUG Price: $5.18 |
| 5 |
220AA0408 |
SCREW-PAN-CROS,4X8 This part replaces 220B0408. Price: $0.68 |
| 6 |
92049-1216 |
SEAL-OIL,FORK OUTER P This part replaces 44009-024. Price: $23.21 |
| 7 |
44043-044 |
WASHER-OIL SEAL FIT Price: $13.51 |
| 8 |
44044-012 |
CIRCLIP-OIL SEAL FIT Price: $29.65 |
| 9 |
44013-1003 |
TUBE,FORK INNER Price: $557.67 |
| 10 |
44022-1011 |
CYLINDER-FORK Price: $83.76 |
| 11 |
92055-1009 |
O RING,FORK TOP Price: $7.55 |
| 12 |
44010-032 |
DUST SHEILD,FORK Price: $39.46 |
| 13 |
44026-1026 |
SPRING,FORK Price: $78.07 |
| 14 |
44045-057 |
GASKET,FORK CYLINDER Price: $4.86 |
| 15 |
44039-071 |
HEAD STEERING STEM Price: $139.68 |
| 16 |
44029-1003 |
CAP,FORK SPRING Price: $60.72 |
| 17 |
11012-1017 |
CAP,RUBBER Price: $11.49 |
| 18 |
44063-014 |
HOLDER,FRONT AXLE Price: $33.28 |
| 19 |
44041-038 |
BOLT-HEX HEAD,8X55 Price: $9.41 |
| 20 |
44041-040 |
BOLT,SOCKET,FORK CYLINDER Price: $6.57 |
| 21 |
44041-045 |
BOLT-HEX HEAD.8M/M Price: $25.59 |
| 22 |
92003-064 |
BOLT-HEX HEAD,12X36 Price: $25.59 |
| 23 |
92015-1124 |
NUT,LOCK,8MM Price: $5.42 |
| 24 |
461DA1200 |
WASHER-SPRING,12MM This part replaces 461F1200. Price: $1.03 |
| 25 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 26 |
44037-093 |
STEM,STEERING Price: $436.93 |
| 27 |
92022-231 |
WASHER,30.5X50X0.6 Price: $4.69 |
| 28 |
92056-003 |
SEAL-OIL,STEERING STEM Price: $8.86 |
| 29 |
92048-0033 |
RACE,STEERING STEM BEARING This part replaces 92047-012. Price: $14.60 |
| 30 |
11034-1602 |
BRACKET,FORK COVER Price: $22.55 |
| 31 |
130BA0612 |
BOLT-FLANGED,6X12 This part replaces 131B0612. Price: $1.72 |
| 32 |
220AA0410 |
SCREW-PAN-CROS,4X10 This part replaces 220B0410. Price: $2.46 |
| 33 |
410AA0400 |
WASHER-PLAIN-SMALL,4MM This part replaces 410B0400. Price: $0.49 |
| 34 |
44033-1042 |
COVER,FORK Price: $38.98 |
