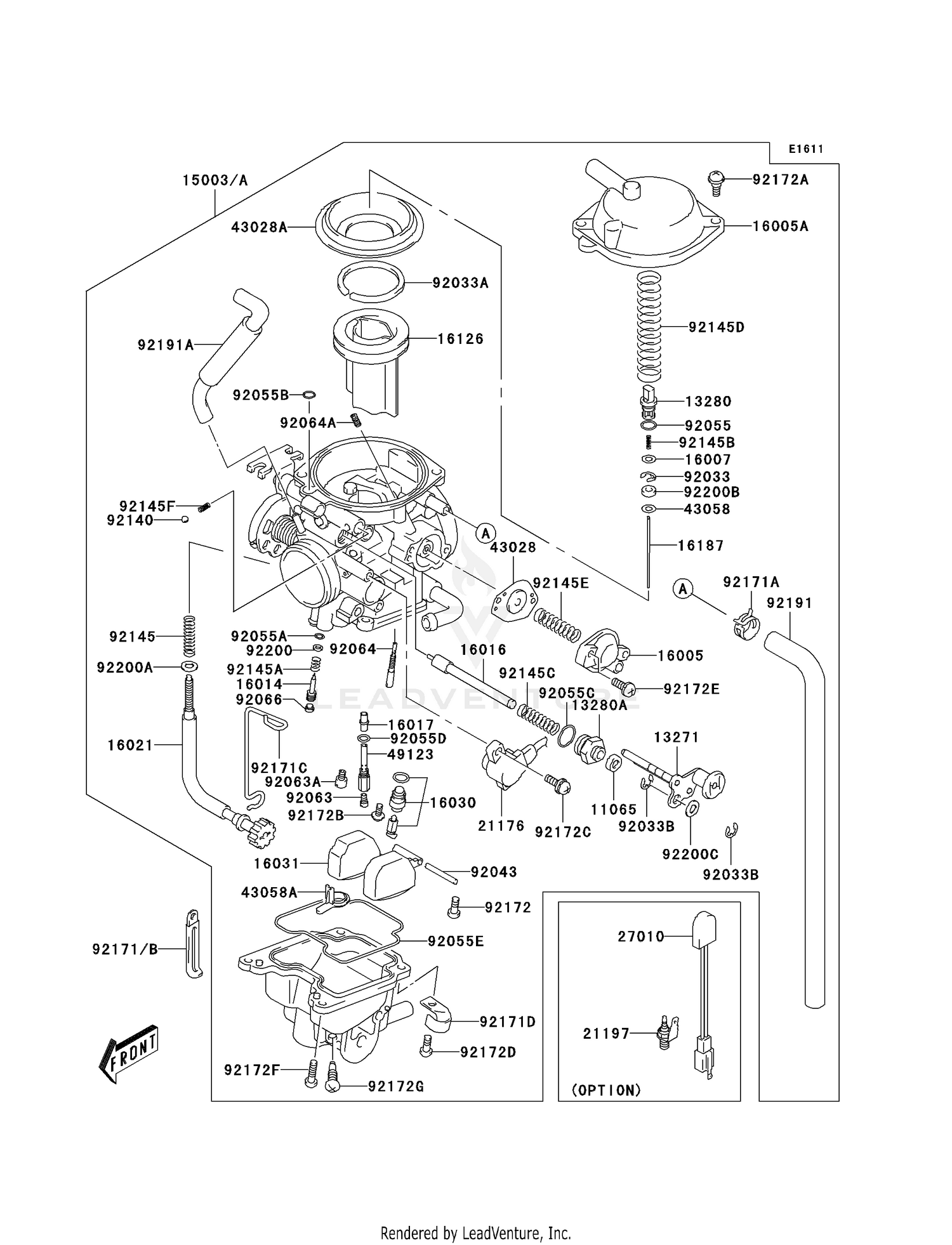

| Ref | Part Number | Description |
|---|
| 11065 |
11065-S031 |
CAP Price: $5.47 |
| 13271 |
13271-S056 |
PLATE Price: $61.00 |
| 13280 |
13280-S002 |
HOLDER Price: $7.23 |
| 13280A |
13280-S021 |
HOLDER Price: $11.41 |
| 16005 |
16005-S004 |
TOP-CHAMBER Price: $32.44 |
| 16005A |
16005-S007 |
TOP-CHAMBER,DIAPHRAGM Price: $39.46 |
| 16007 |
16007-S005 |
SEAT-SPRING Price: $4.60 |
| 16014 |
16014-S006 |
SCREW-PILOT AIR Price: $12.01 |
| 16016 |
16016-S008 |
PLUNGER Price: $28.70 |
| 16017 |
16017-S007 |
JET-NEEDLE Price: $45.19 |
| 16021 |
16021-S006 |
SCREW-THROTTLE STOP Price: $54.71 |
| 16030 |
16030-S012 |
VALVE-FLOAT This part replaces 16030-S008. Price: $68.82 |
| 16031 |
16031-S006 |
FLOAT Price: $34.57 |
| 16126 |
16126-S010 |
VALVE Price: $68.73 |
| 16187 |
16187-S009 |
NEEDLE-JET Price: $18.77 |
| 21176 |
21176-S029 |
SENSOR This part replaces 21176-S001. Price: $121.95 |
| 43028 |
43028-S016 |
DIAPHRAGM This part replaces 43028-S008. Price: $26.60 |
| 43028A |
43028-S017 |
DIAPHRAGM This part replaces 43028-S011. Price: $33.24 |
| 43058 |
43058-S001 |
RING Price: $9.59 |
| 43058A |
43058-S008 |
RING This part replaces 43058-S007. Price: $12.29 |
| 49123 |
49123-S006 |
HOLDER-MAIN JET Price: $33.77 |
| 92033 |
92033-S008 |
RING-SNAP,MULTIPLE JE Price: $2.15 |
| 92033A |
92033-S041 |
RING-SNAP Price: $6.55 |
| 92033B |
92033-S046 |
RING-SNAP Price: $2.73 |
| 92043 |
92043-S034 |
PIN Price: $4.69 |
| 92055 |
92055-S003 |
RING-O,ID:4.8 Price: $2.53 |
| 92055A |
92055-S124 |
RING-O This part replaces 92055-S013. Price: $5.47 |
| 92055B |
92055-S044 |
RING-O Price: $5.66 |
| 92055C |
92055-S121 |
RING-O This part replaces 92055-S048. Price: $2.70 |
| 92055D |
92055-S125 |
RING-O This part replaces 92055-S049. Price: $5.47 |
| 92055E |
92055-S058 |
RING-O Price: $11.55 |
| 92063 |
92063-S010 |
JET-MAIN,142.5 Price: $14.54 |
| 92063A |
92063-S011 |
JET-MAIN,62.5 Price: $11.08 |
| 92064 |
92064-S008 |
JET-PILOT,#22.5 Price: $16.59 |
| 92064A |
92064-S009 |
JET-PILOT,165 Price: $15.12 |
| 92066 |
92066-S027 |
PLUG Price: $5.83 |
| 92140 |
92140-S005 |
BALL Price: $4.81 |
| 92145 |
92145-S009 |
SPRING,THROTTLE SCREW Price: $5.05 |
| 92145A |
92145-S010 |
SPRING,THROTTLE SCREW Price: $5.47 |
| 92145B |
92145-S097 |
SPRING Price: $4.60 |
| 92145C |
92145-S113 |
SPRING Price: $5.01 |
| 92145D |
92145-S125 |
SPRING Price: $13.09 |
| 92145E |
92145-S126 |
SPRING Price: $4.81 |
| 92145F |
92145-S127 |
SPRING Price: $6.72 |
| 92171 |
92171-S047 |
CLAMP,L=95 This part replaces 92171-S012. Price: $2.64 |
| 92171A |
92171-S019 |
CLAMP Price: $4.71 |
| 92171B |
92171-S081 |
CLAMP,WIRING HARNESS Price: $3.64 |
| 92171C |
92171-S110 |
CLAMP Price: $17.74 |
| 92171D |
92171-S111 |
CLAMP Price: $5.83 |
| 92172 |
92172-S297 |
SCREW This part replaces 92172-S002. Price: $1.92 |
| 92172A |
92172-S047 |
SCREW Price: $3.53 |
| 92172B |
92172-S048 |
SCREW Price: $4.22 |
| 92172C |
92172-S049 |
SCREW Price: $4.08 |
| 92172D |
92172-S057 |
SCREW Price: $1.97 |
| 92172E |
92172-S139 |
SCREW Price: $3.45 |
| 92172F |
92172-S374 |
SCREW This part replaces 92172-S145. Price: $1.90 |
| 92172G |
92172-S199 |
SCREW Price: $6.43 |
| 92191 |
92191-S069 |
TUBE,AIR VENT Price: $35.80 |
| 92191A |
92191-S076 |
TUBE,4.5X8X400 Price: $25.37 |
| 92200 |
92200-S019 |
WASHER Price: $2.15 |
| 92200A |
92200-S021 |
WASHER Price: $3.45 |
| 92200B |
92200-S083 |
WASHER Price: $4.10 |
