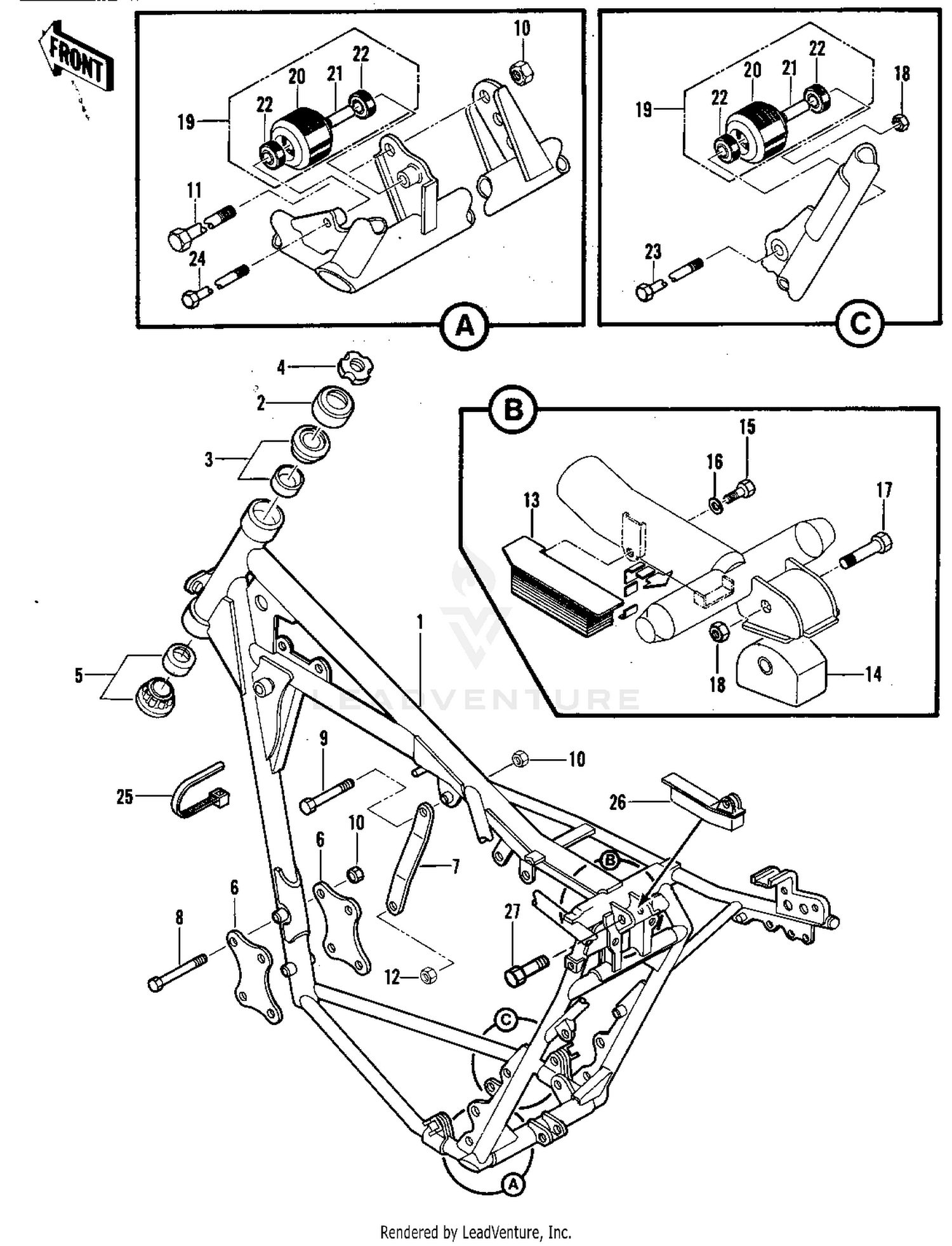

| Ref | Part Number | Description |
|---|
| 1 |
32002-1231 |
FRAME Price: $774.42 |
| 2 |
46098-015 |
CAP,STEERING STEM Price: $6.54 |
| 2 |
92045-1009 |
BEARING,BALL Price: $35.22 |
| 4 |
92015-1546 |
NUT,25MM,T=12 Price: $20.96 |
| 6 |
32029-1112 |
BRACKET,ENGINE Price: $26.89 |
| 7 |
32029-4016 |
BRACKET,ENGINE Price: $17.09 |
| 8 |
92001-1033 |
BOLT HEX HEAD,10X66.5 Price: $8.22 |
| 9 |
92001-1412 |
BOLT Price: $8.28 |
| 10 |
92210-1184 |
NUT,LOCK,10MM This part replaces 92019-021. Price: $6.11 |
| 11 |
92001-4001 |
BOLT,HEX HEAD,10X127 Price: $3.62 |
| 12 |
92015-1415 |
NUT,FLANGED,10MM Price: $4.69 |
| 18 |
92015-1124 |
NUT,LOCK,8MM Price: $5.42 |
| 19 |
92122-1013 |
ROLLER,ASSY Price: $108.77 |
| 20 |
92122-1014 |
ROLLER Price: $19.32 |
| 21 |
92027-1081 |
COLLAR Price: $9.59 |
| 23 |
115G0855 |
BOLT-SMALL-UPSET,8X55 Price: $6.13 |
| 24 |
114B0870 |
BOLT HEX HEAD 8X70 Price: $4.82 |
| 25 |
92072-3509 |
BAND,L=292.1 Price: $2.12 |
