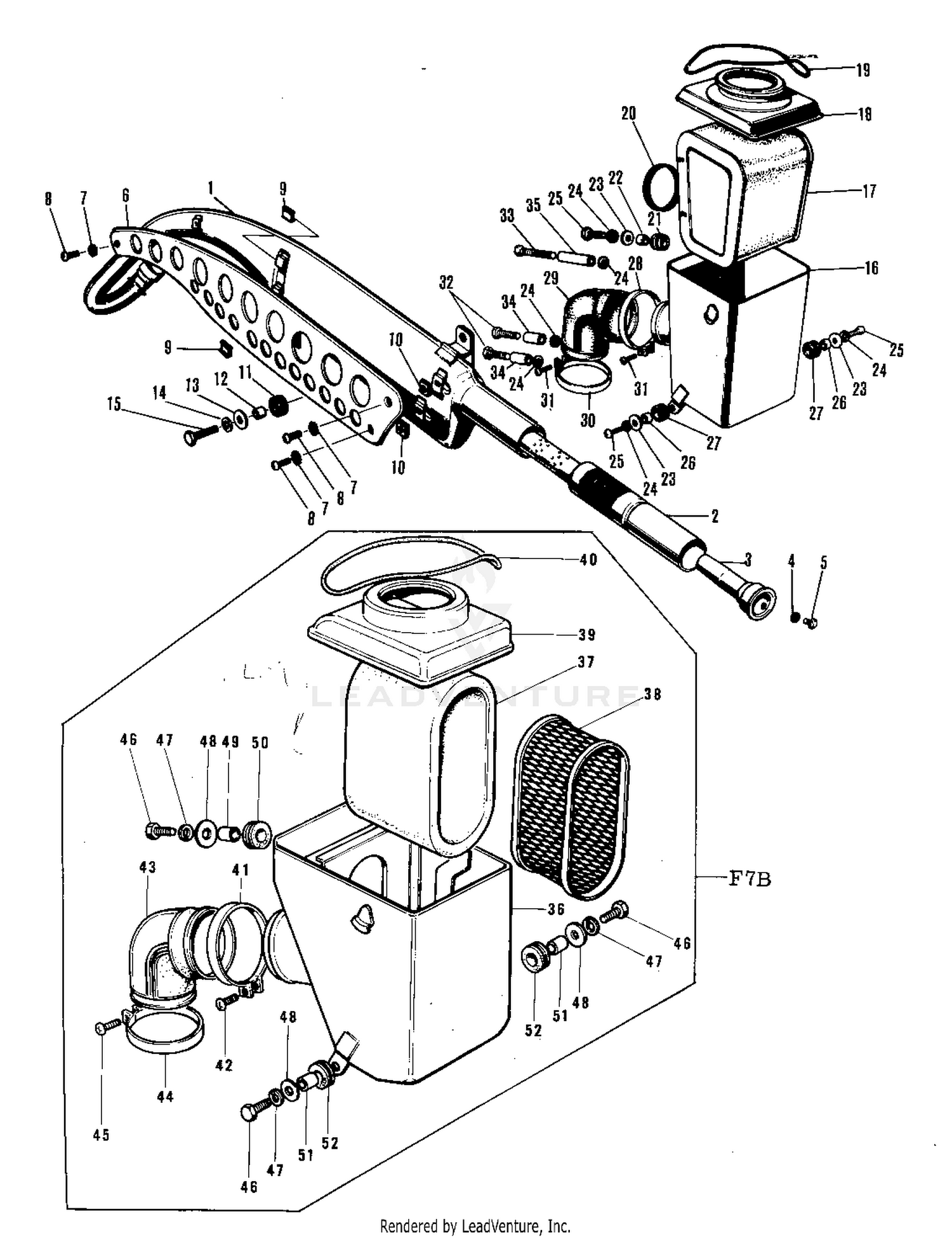

| Ref | Part Number | Description |
|---|
| 3 |
18048-015 |
TAIL PIECE Price: $25.88 |
| 4 |
463H0600 |
WASHER LOCK 6MM Price: $0.81 |
| 5 |
112BA0612 |
BOLT-UPSET This part replaces 112G0612. Price: $1.49 |
| 6 |
18064-005 |
COVER-MUFFLER Price: $37.33 |
| 7 |
463H0600 |
WASHER LOCK 6MM Price: $0.81 |
| 8 |
220E0612 |
SCREW PAN HEAD 6X12 Price: $4.60 |
| 9 |
18065-007 |
INSULATOR Price: $5.59 |
| 10 |
18065-009 |
INSULATOR-HEAT Price: $4.62 |
| 11 |
18063-005 |
DAMPER RUBBER-MUFFLER Price: $5.21 |
| 12 |
92027-102 |
COLLAR,8.8X12X10.7 Price: $1.08 |
| 13 |
92022-1564 |
WASHER,8X26X2.3 Price: $4.31 |
| 14 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 15 |
115BA0825 |
BOLT-SMALL-UPSET,8X25 This part replaces 115G0825. Price: $5.42 |
| 16 |
11011-012 |
BODY-AIR CLEANER Price: $63.02 |
| 17 |
11013-020 |
ELEMENT,AIR CLNR Price: $31.58 |
| 18 |
11012-015 |
CAP-AIR CLEANER Price: $9.14 |
| 20 |
11017-007 |
GASKET-AIR CLEANER Price: $4.36 |
| 23 |
92200-0283 |
WASHER,6.5X20X1.6 This part replaces 92022-125. Price: $1.40 |
| 24 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 25 |
112BA0620 |
BOLT-UPSET This part replaces 112G0620. Price: $2.28 |
| 29 |
11026-003 |
CONNECTOR Price: $10.89 |
| 31 |
220AA0635 |
SCREW-PAN-CROS,6X35 This part replaces 220B0635. Price: $1.63 |
| 32 |
92003-066 |
BOLT-AIR CLEANER FIT Price: $3.52 |
| 33 |
92003-067 |
BOLT-AIR CLNR. FITTNG Price: $3.73 |
| 34 |
92027-127 |
COLLAR Price: $6.02 |
| 35 |
92027-128 |
COLLAR Price: $2.24 |
