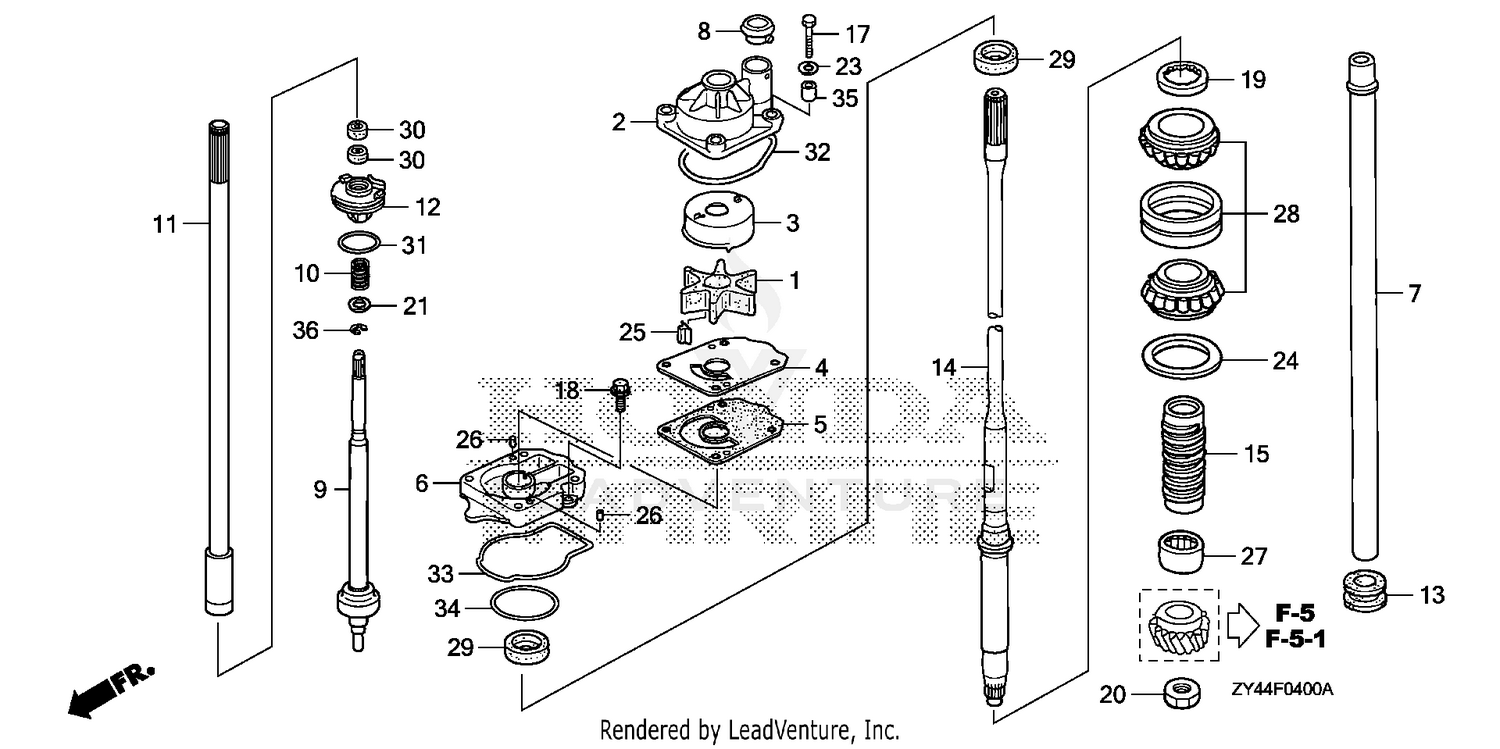

| Ref | Part Number | Description |
|---|
| 1 |
19210-ZY3-023 |
IMPELLER, PUMP This part replaces 19210-ZY3-003. Price: $55.10 |
| 1 |
516008739 |
BRP Logo 68mm This part replaces 219903609. Price: $16.99 |
| 2 |
19221-ZY3-010 |
SEE PART DETAILS - PRI; HOUSING, IMPELLER Price: $63.18 |
| 2a |
516003532 |
HOOD DECAL, ROTAX 600 HO E-TEC - Call your local BRP dealership Price: $12.99 |
| 2b |
XXX |
Not Available As Spare Parts Price: Call Us |
| 3 |
19223-ZY3-000 |
LINER, PUMP Price: $43.14 |
| 4 |
19231-ZY3-000 |
COVER, IMPELLER Price: $20.94 |
| 4 |
516004775 |
RH LOWER SIDE DECAL, TOP X - Call your local BRP dealership Price: $16.49 |
| 5 |
19234-ZY3-000 |
GASKET B, IMPELLER Price: $7.62 |
| 6 |
06400-ZY3-000 |
KIT,WATER PUMP HS This part replaces 19241-ZY3-000. Price: $104.40 |
| 7 |
19251-ZY3-621 |
TUBE, WATER (XXL) Price: $63.22 |
| 7 |
516004774 |
LH LOWER SIDE DECAL, TOP X - Call your local BRP dealership Price: $19.99 |
| 8 |
19253-ZY3-000 |
RING, WATER TUBE SEAL Price: $8.96 |
| 8 |
516004781 |
DECAL B PAN RH - Call your local BRP dealership Price: $9.39 |
| 9 |
24310-ZY3-C00 |
ROD, SHIFT Price: $223.12 |
| 9 |
516004780 |
LH BOTTOM PAN - Call your local BRP dealership Price: $9.39 |
| 10 |
24318-ZY3-000 |
SPRING, SHIFT ROD Price: $3.74 |
| 10 |
516004561 |
WARNING DECAL, SECURITY - Call your local BRP dealership Price: $0.01 |
| 11 |
24320-ZY3-A20 |
ROD A, SHIFT (XXL) Price: $194.10 |
| 11 |
516004888 |
WARNING DECAL, SECURITY - Call your local BRP dealership Price: $0.01 |
| 12 |
24343-ZW1-B02 |
SEE PART DETAILS - PRI; HOLDER, SHIFT ROD Price: $22.00 |
| 13 |
40204-ZY3-000 |
GROMMET, EXTENSION CASE Price: $8.68 |
| 14 |
41112-ZY3-621 |
SHAFT, VERTICAL (XXL) Price: $1,132.46 |
| 14 |
516004777 |
RH LOWER DECAL, BOTTOM X - Call your local BRP dealership Price: $19.99 |
| 15 |
41116-ZY3-000 |
SLINGER, OIL Price: $31.08 |
| 15 |
516004776 |
LH LOWER DECAL, BOTTOM X - Call your local BRP dealership Price: $19.99 |
| 16 |
516004566 |
Caution Decal, Hot Parts Price: $9.49 |
| 17 |
516004440 |
WARNING DECAL, TRACK - Call your local BRP dealership Price: $8.29 |
| 17 |
90116-ZY3-000 |
BOLT, HEX. (8X60) Price: $1.46 |
| 18 |
90215-HW1-671 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) (SUS) Price: $1.42 |
| 18a |
516005231 |
WARNING DECAL, INJECTORS - Call your local BRP dealership This part replaces 516003940. Price: $0.01 |
| 19 |
90242-ZW1-000 |
NUT, LOCK (64MM) Price: $35.94 |
| 20 |
90303-ZY3-000 |
NUT, HEX. (18MM) Price: $13.78 |
| 21 |
90472-723-000 |
WASHER, PLAIN (12MM) Price: $1.96 |
| 23 |
90514-921-000 |
WASHER (8MM) Price: $1.36 |
| 24 |
90518-ZW1-B00 |
SHIM A, GEAR (0.10) Price: $10.06 |
| 24 |
90519-ZW1-B00 |
SHIM B, GEAR (0.15) Price: $10.06 |
| 24 |
90520-ZW1-B00 |
SHIM C, GEAR (0.30) Price: $10.06 |
| 24 |
90521-ZW1-B00 |
SHIM D, GEAR (0.50) Price: $10.06 |
| 25 |
90752-ZY3-003 |
KEY, WOODRUFF Price: $24.44 |
| 26 |
90756-ZV5-000 |
PIN, DOWEL (6X10) Price: $3.62 |
| 27 |
91053-ZY3-003 |
BEARING, NEEDLE (32X46X37) Price: $62.30 |
| 28 |
91054-ZW1-B31 |
BEARING, TAPER ROLLER (30X62X40) Price: $103.56 |
| 29 |
91251-ZY3-C01 |
SEAL, WATER (26X42X7) Price: $7.70 |
| 30 |
91254-ZY3-003 |
SEAL, WATER (12X21X6) Price: $6.20 |
| 31 |
91308-MJ0-003 |
O-RING (49.4X3.1) Price: $4.94 |
| 32 |
91356-ZY3-003 |
O-RING, WATER PUMP Price: $10.10 |
| 33 |
91358-ZY3-003 |
O-RING, WATER PUMP HOUSING Price: $10.72 |
| 34 |
91359-ZY3-003 |
O-RING (69.1X2.4) Price: $10.72 |
| 35 |
91551-ZY3-000 |
COLLAR, DISTANCE Price: $2.90 |
