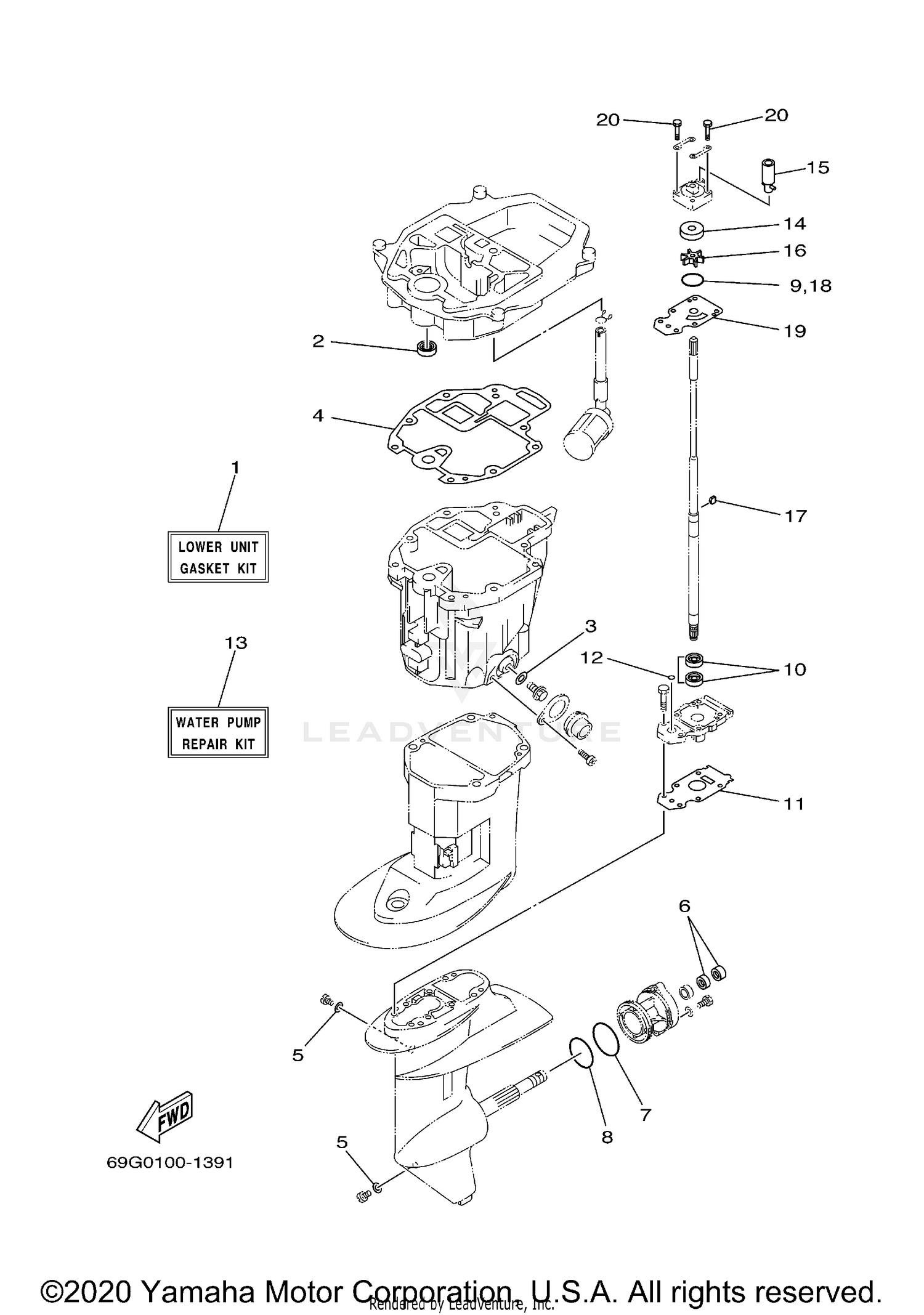

REPAIR KIT 3
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 69G-W0001-20-00 | LOWER UNIT GASKET KIT Price: $81.10 |
| 2 | 93101-12M70-00 | OIL SEAL Price: $12.45 |
| 3 | 90430-10M11-00 | GASKET Price: $2.70 |
| 4 | 68T-13475-00-00 | GASKET Price: $33.90 |
| 5 | 90430-08003-00 | GASKET Price: $1.55 |
| 6 | 93101-17054-00 | OIL SEAL Price: $11.10 |
| 7 | 93210-74316-00 | O-RING Price: $11.49 |
| 8 | 93210-74M68-00 | O-RING Price: $9.05 |
| 9 | 93210-44704-00 | O-RING This part replaces 93210-44398-00. Price: $8.49 |
| 10 | 93101-20048-00 | OIL SEAL Price: $9.49 |
| 11 | 69G-45315-A0-00 | PACKING, LOWER CASING Price: $15.65 |
| 12 | 93210-06ME6-00 | O-RING Price: $3.55 |
| 13 | 69G-W0078-02-00 | WATER PUMP REPAIR KIT This part replaces 69G-W0078-01-00. Price: $58.45 |
| 14 | 63V-44322-00-00 | INSERT, CARTRIDGE Price: $17.15 |
| 16 | 63V-44352-01-00 | IMPELLER Price: $27.75 |
| 17 | 664-44338-00-00 | KEY, WOODRUFF Price: $10.70 |
| 18 | 93210-44704-00 | O-RING This part replaces 93210-44398-00. Price: $8.49 |
| 19 | 68T-44323-00-00 | OUTER PLATE, CARTRIDGE Price: $7.00 |
