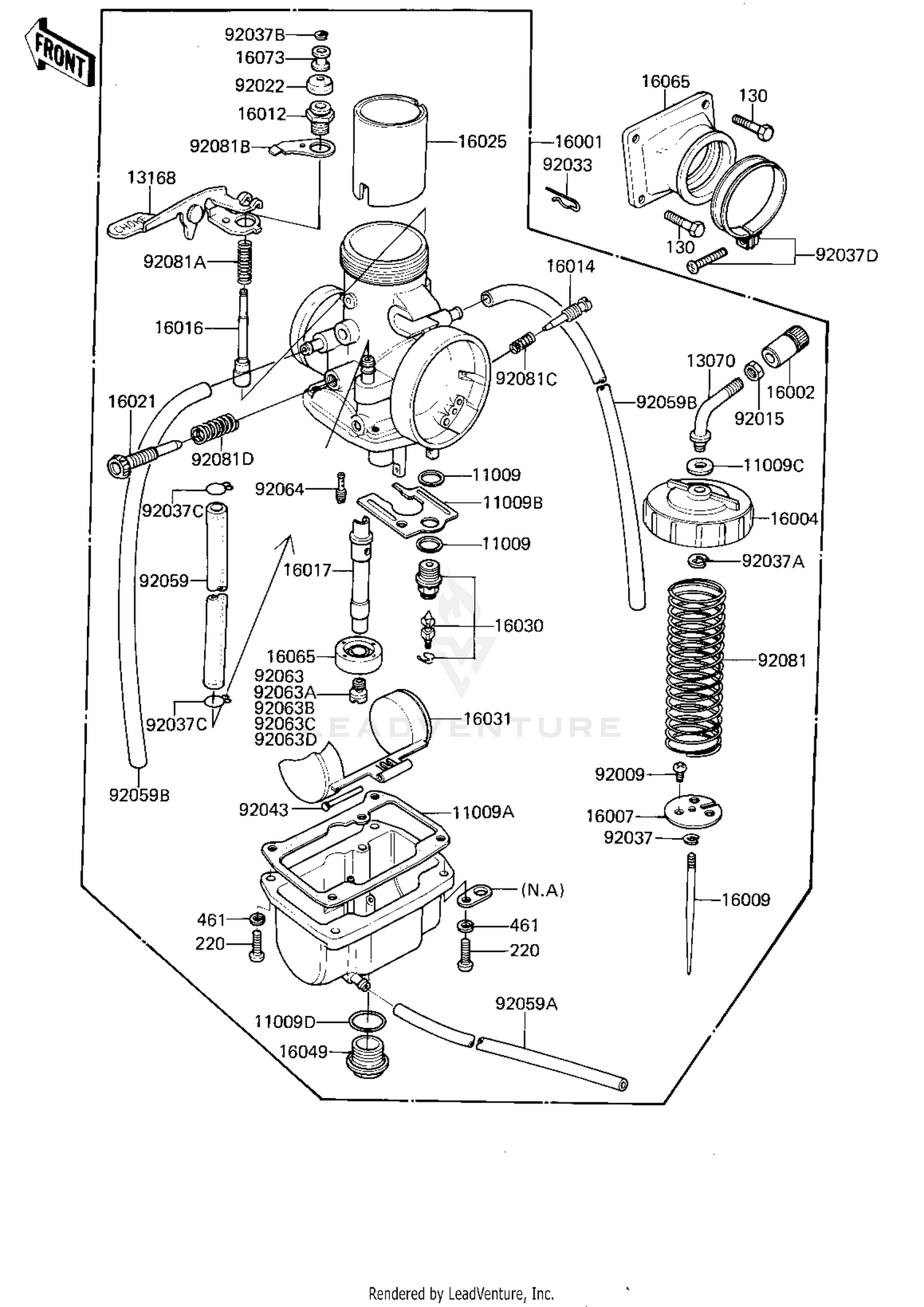

| Ref | Part Number | Description |
|---|
| 130 |
130CA0620 |
BOLT-FLANGED,6X20 This part replaces 130G0620. Price: $1.70 |
| 220 |
214AA0516 |
SCREW-PAN+- This part replaces 214B0516A. Price: $0.17 |
| 11009 |
11009-1076 |
GASKET,FLOAT VALVE Price: $4.94 |
| 11009A |
11009-1079 |
GASKET,FLOAT CHAMBER Price: $16.29 |
| 11009B |
11009-1080 |
PLATE,FLOAT CHAMBER Price: $16.29 |
| 11009C |
11009-1191 |
GASKET,CABLE GUIDE Price: $9.73 |
| 11009D |
16038-009 |
GASKET-COVER Price: $9.73 |
| 13070 |
13070-1010 |
GUIDE,CABLE Price: $27.59 |
| 13168 |
13168-1066 |
LEVER,STARTER Price: $28.54 |
| 16001 |
16001-1339 |
CARBURETOR,ASSY Price: $216.63 |
| 16002 |
16002-1006 |
ADJUSTER,CABLE Price: $10.89 |
| 16004 |
16004-1003 |
TOP,MIXING CHAMBER Price: $33.88 |
| 16007 |
16007-1007 |
SEAT,THROTTLE VALVE Price: $12.19 |
| 16009 |
16009-1067 |
JET NEEDLE,6F21 Price: $51.24 |
| 16012 |
16012-016 |
CAP,PLUNGER Price: $9.66 |
| 16014 |
16014-006 |
SCREW Price: $17.15 |
| 16016 |
16016-1014 |
PLUNGER ASSY,STARTER Price: $29.04 |
| 16017 |
16017-1077 |
JET NEEDLE Price: $33.63 |
| 16021 |
16021-1034 |
SCREW,THROTTLE STOP Price: $20.68 |
| 16025 |
16025-1051 |
VALVE-THROTTLE,CA2.5 Price: $91.78 |
| 16030 |
16030-022 |
FLOAT VALVE ASSY Price: $33.19 |
| 16031 |
16031-025 |
FLOAT ASSY Price: $82.44 |
| 16049 |
16049-006 |
COVER,MAIN JET Price: $20.47 |
| 16065 |
16065-1007 |
HOLDER,CARBURETOR Price: $120.10 |
| 16073 |
16073-014 |
COLLAR Price: $10.47 |
| 92009 |
92009-1037 |
SCREW,4X5 Price: $3.56 |
| 92015 |
16003-004 |
NUT CABLE ADJUST LOCK Price: $7.34 |
| 92022 |
16039-015 |
CAP,RUBBER,STARTER PLUNGE Price: $6.88 |
| 92033 |
92036-018 |
RING-SNAP Price: $3.89 |
| 92037 |
16008-010 |
CIRCLIP Price: $9.21 |
| 92037A |
16008-011 |
CIRCLIP,CABLE GUIDE Price: $6.85 |
| 92037B |
16076-003 |
CIRCLIP Price: $8.92 |
| 92037C |
92037-056 |
CLAMP,CARB CONECT HOS Price: $6.60 |
| 92037D |
92037-1172 |
CLAMP Price: $7.23 |
| 92043 |
16032-008 |
PIN,FLOAT Price: $6.57 |
| 92059 |
92059-1025 |
HOSE,OVERFLOW Price: $21.68 |
| 92059A |
92059-1084 |
HOSE,6.5X11.5X240 Price: $21.68 |
| 92059B |
92059-1178 |
TUBE,3.5X6.5X120 Price: $4.71 |
| 92063C |
92063-1026 |
MAIN JET,#157.5R Price: $16.36 |
| 92064 |
92064-024 |
JET-PILOT NO 40 Price: $22.86 |
| 92081 |
16006-016 |
SPRING-THROTTLE VALVE Price: $24.74 |
| 92081A |
16013-008 |
SPRING,STARTER PLUNGER Price: $6.46 |
| 92081B |
16013-009 |
SPRING,STATER LEVER Price: $6.00 |
| 92081C |
16022-007 |
SPRING,PILOT AIR SCREW Price: $8.13 |
| 92081D |
92081-1200 |
SPRING,THRTL STP SCRW Price: $9.28 |
