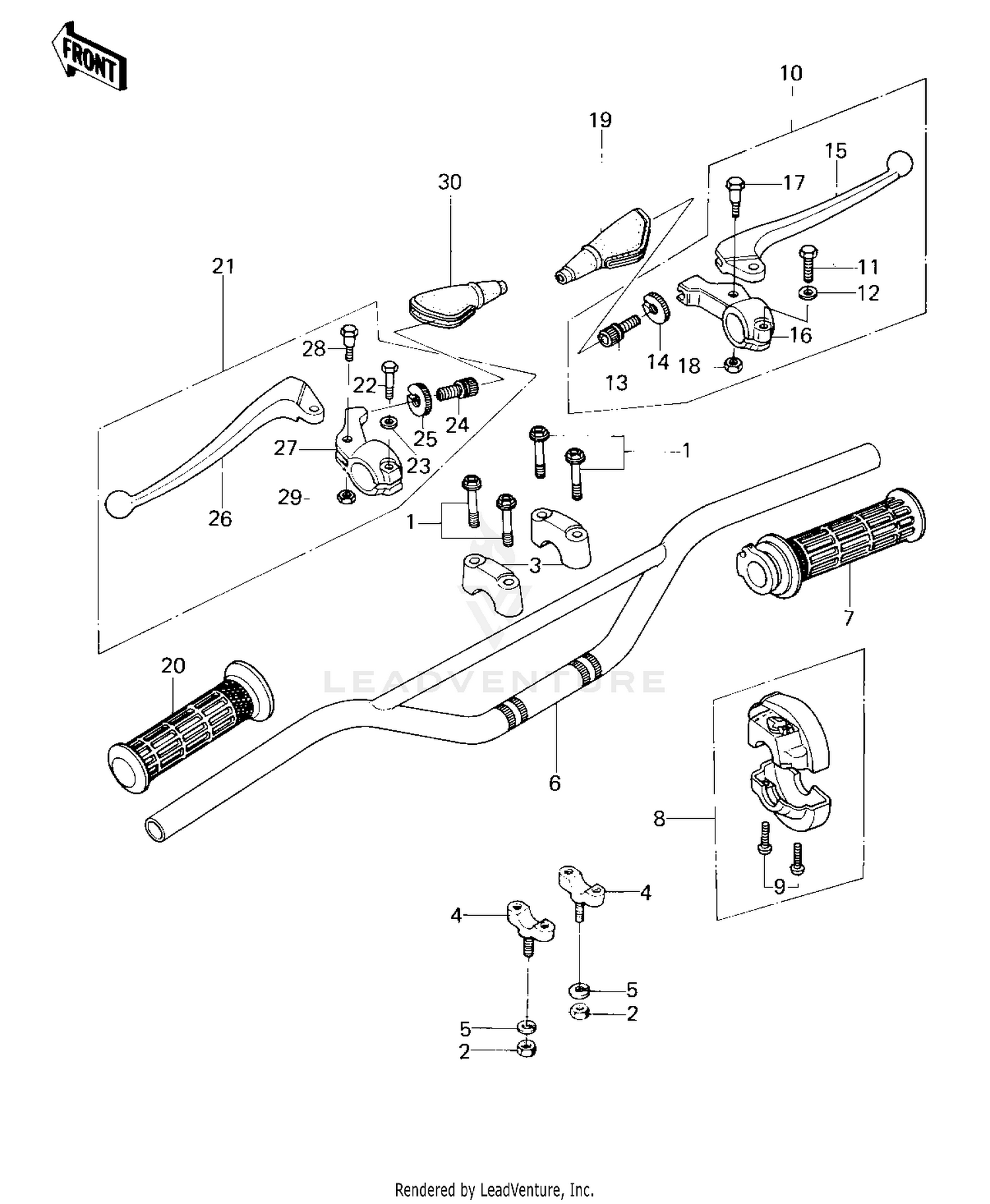

| Ref | Part Number | Description |
|---|
| 1 |
130CA0835 |
BOLT-FLANGED,8X35 This part replaces 130G0835. Price: $1.78 |
| 2 |
314AA1000 |
NUT-HEX-FINE This part replaces 314B1000. Price: $0.68 |
| 3 |
46012-008 |
HOLDER-HANDLEBAR Price: $37.74 |
| 4 |
46012-1002 |
HOLDER,HANDLEBAR Price: $17.85 |
| 5 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 6 |
46003-1053 |
HANDLEBAR,FLAT BLACK Price: $90.72 |
| 7 |
46019-1005 |
GRIP ASSY,THROTTLE Price: $37.37 |
| 8 |
46091-1041 |
HOUSING ASSY,CONT,R.H Price: $64.13 |
| 9 |
220AA0518 |
SCREW-PAN-CROS This part replaces 220B0518. Price: $4.96 |
| 10 |
46021-025 |
LEVER ASSY,FRNT BRAKE Price: $82.41 |
| 11 |
112N0625 |
BOLT-UPSET This part replaces 110N0625. Price: $5.86 |
| 12 |
410S0600 |
WASHER-PLAIN-SMALL,6MM This part replaces 410D0600. Price: $0.78 |
| 13 |
46055-003 |
SCREW,CABLE ADJUST,8MM Price: $16.33 |
| 14 |
46056-005 |
NUT,CABLE ADJUST LOCK,8MM Price: $8.86 |
| 15 |
46058-004 |
LEVER FRONT BRAKE Price: $24.84 |
| 16 |
46060-011-21 |
HOLDER,FR LEVER,F.BLK Price: $34.11 |
| 17 |
92007-046 |
BOLT,HEX HEAD,5X22 Price: $7.62 |
| 18 |
92019-014 |
NUT-LOCK,5MM Price: $4.50 |
| 19 |
49006-1017 |
BOOT,LEVER HOLDER Price: $18.72 |
| 20 |
46075-1004 |
GRIP,L.H. Price: $16.08 |
| 21 |
46076-044 |
LEVER ASSY,CLUTCH This part replaces 46076-045. Price: $41.66 |
| 22 |
112N0625 |
BOLT-UPSET This part replaces 110N0625. Price: $5.86 |
| 23 |
410S0600 |
WASHER-PLAIN-SMALL,6MM This part replaces 410D0600. Price: $0.78 |
| 24 |
46055-003 |
SCREW,CABLE ADJUST,8MM Price: $16.33 |
| 25 |
46056-005 |
NUT,CABLE ADJUST LOCK,8MM Price: $8.86 |
| 26 |
46092-015 |
LEVER-CLUTCH Price: $20.99 |
| 27 |
46094-015-21 |
HOLDER,CL LEVER,F.BLK Price: $37.74 |
| 28 |
92007-046 |
BOLT,HEX HEAD,5X22 Price: $7.62 |
| 29 |
92019-014 |
NUT-LOCK,5MM Price: $4.50 |
