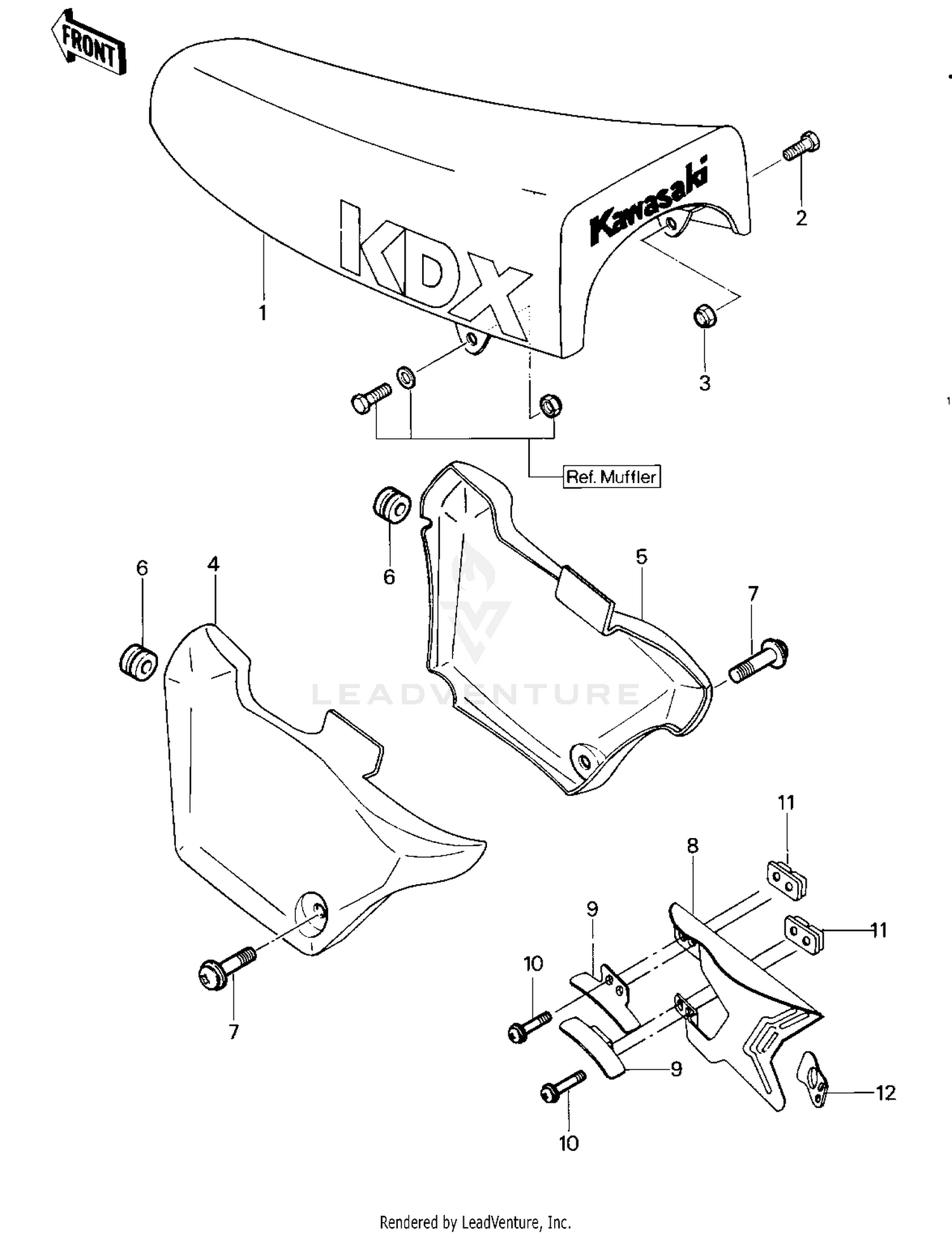

SEAT/SIDE COVERS/CHAIN COVER
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 53001-4002 | SEAT-ASSY Price: $183.91 |
| 2 | 130BA0814 | BOLT-FLANGED,8X14 This part replaces 130G0814. Price: $2.16 |
| 3 | 92015-1124 | NUT,LOCK,8MM Price: $5.42 |
| 4 | 36001-4001-7F | SIDE COVER,LH Price: $25.00 |
| 5 | 36001-4002-7F | SIDE COVER,RH Price: $25.00 |
| 6 | 92075-1028 | DAMPER Price: $4.69 |
| 7 | 92009-1286 | SCREW,6X10,WHITE Price: $4.31 |
| 8 | 36014-4001 | CHAIN GUARD Price: $11.03 |
| 9 | 55020-4002 | GUARD,WEAR STRIP Price: $3.60 |
| 10 | 92009-1289 | SCREW,6X20 Price: $4.31 |
| 11 | 13169-4004 | PLATE Price: $4.71 |
