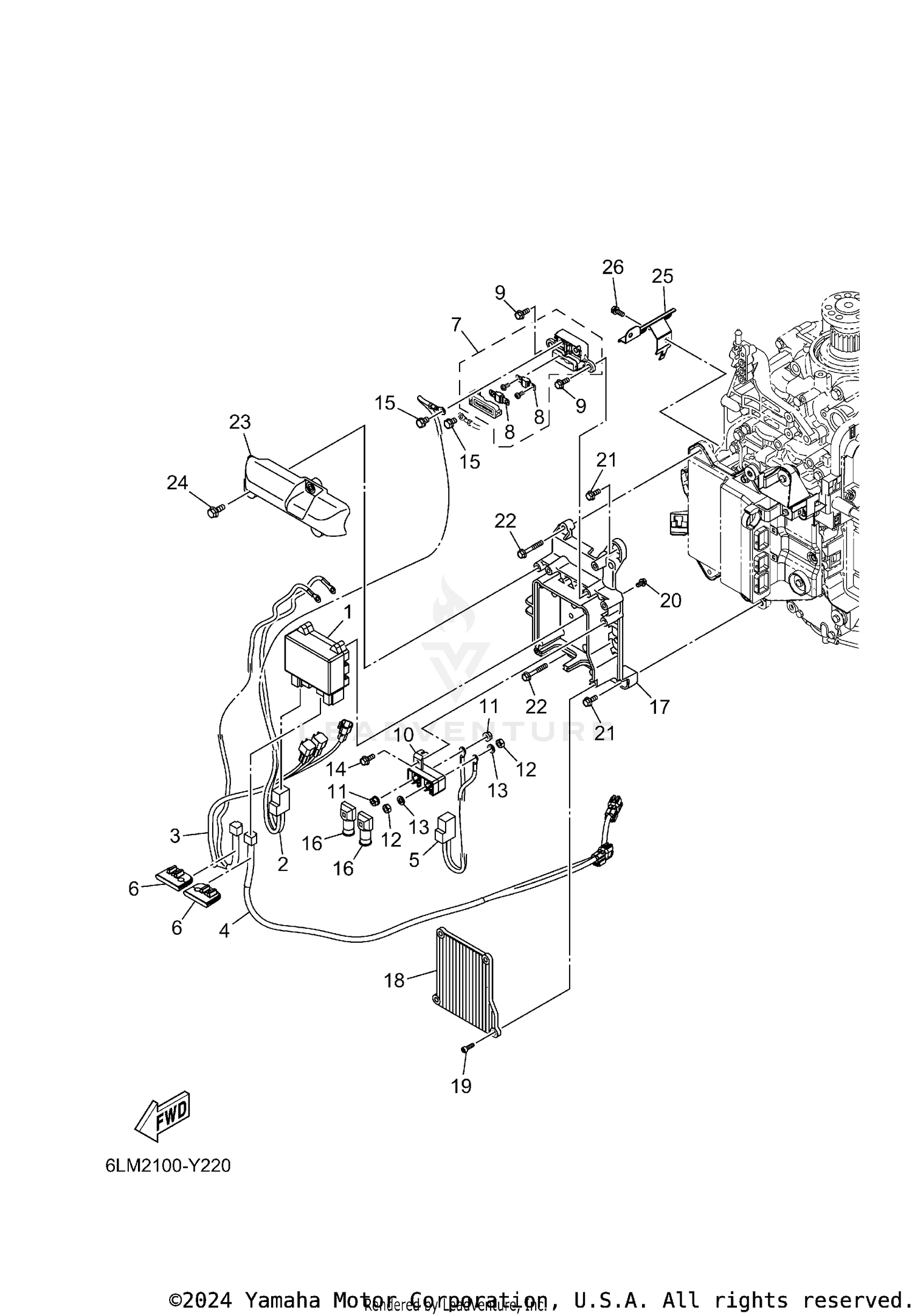

| Ref | Part Number | Description |
|---|
| 1 |
6LH-86500-02-00 |
MOTOR CONTROL UNIT ASSY Price: $1,203.25 |
| 2 |
6LH-8259N-00-00 |
WIRE HARNESS ASSY 3 Price: $43.10 |
| 3 |
6LH-8259N-10-00 |
WIRE HARNESS ASSY 3 Price: $74.05 |
| 4 |
6LH-8259N-20-00 |
WIRE HARNESS ASSY 3 Price: $62.90 |
| 5 |
6LH-8259N-30-00 |
WIRE HARNESS ASSY 3 Price: $35.35 |
| 6 |
6LH-86115-00-00 |
HOLDER, SOLENOID Price: $25.00 |
| 7 |
6LH-81920-00-00 |
TERMINAL ASSY Price: $176.80 |
| 8 |
6GR-82151-10-00 |
FUSE (70A) Price: $6.65 |
| 9 |
95D95-06016-00 |
BOLT, FLANGE DEEP Price: $0.95 |
| 10 |
6LH-81925-00-00 |
TERMINAL Price: $79.00 |
| 11 |
95780-06500-00 |
NUT, FLANGE Price: $2.95 |
| 12 |
95380-05600-00 |
NUT Price: $9.49 |
| 13 |
92990-05100-00 |
WASHER, SPRING This part replaces 92903-05100-00. Price: $0.35 |
| 14 |
95814-06016-00 |
BOLT, FLANGE Price: $1.99 |
| 15 |
97E95-06510-00 |
BOLT, HEXAGON W/W Price: $0.80 |
| 16 |
6LH-82119-00-00 |
COVER, LEAD WIRE Price: Call Us |
| 17 |
6LH-83635-00-00 |
BRACKET Price: $183.55 |
| 18 |
6LH-86128-00-00 |
COVER Price: $45.35 |
| 19 |
91380-05016-00 |
BOLT Price: $0.80 |
| 20 |
97595-05510-00 |
BOLT HEX. HEAD Price: $0.70 |
| 21 |
95D95-06016-00 |
BOLT, FLANGE DEEP Price: $0.95 |
| 22 |
95D95-06040-00 |
BOLT, FLANGE DEEP Price: $1.10 |
| 23 |
6LH-81842-00-00 |
COVER Price: $26.80 |
| 24 |
95D95-06016-00 |
BOLT, FLANGE DEEP Price: $0.95 |
| 25 |
6LH-818D2-00-00 |
PLATE, 2 Price: $25.70 |
