| Ref | Part Number | Description |
|---|
| 220 |
220AA0306 |
SCREW-PAN-CROS,3X6 This part replaces 220B0306. Price: $0.64 |
| 220A |
220AB0620 |
SCREW-PAN-CROSS This part replaces 220C0620. Price: $1.57 |
| 11009 |
11009-1409 |
GASKET,FLOAT CHAMBER Price: $11.02 |
| 11009B |
16038-022 |
O RING Price: $6.89 |
| 11012 |
11012-1389 |
CAP,CHAMBER CAP Price: $8.24 |
| 13091 |
13091-1348 |
HOLDER,NEEDLE JET Price: $30.73 |
| 13169 |
13169-1808 |
PLATE,FLOAT CHAMBER Price: $22.11 |
| 13169A |
13169-1809 |
PLATE,LOCK Price: $6.57 |
| 15001 |
15001-1192 |

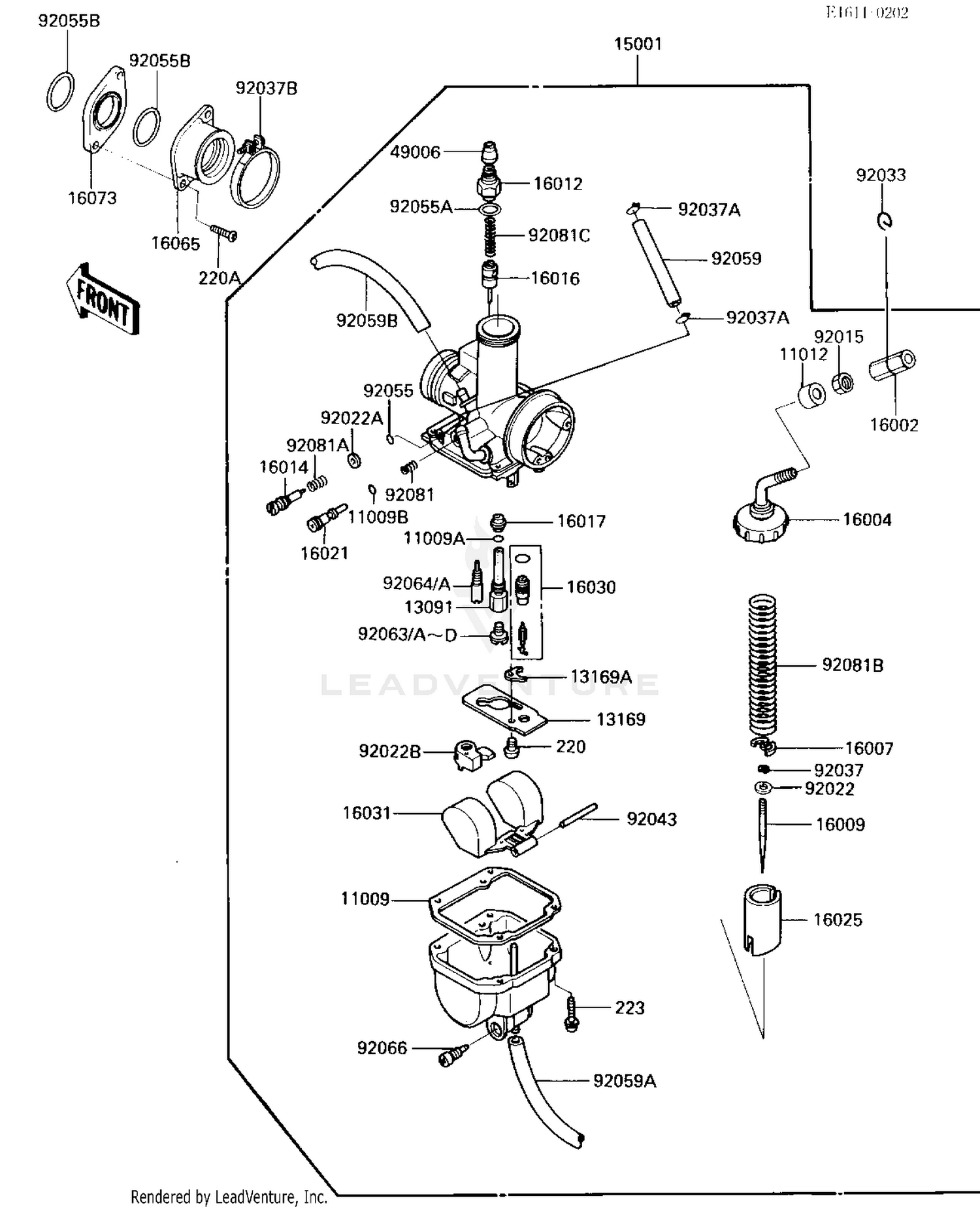

CARBURETOR-ASSY Price: $359.84 |
| 16002 |
16002-1006 |
ADJUSTER,CABLE Price: $10.89 |
| 16004 |
16004-1052 |
CAP-CHAMBER Price: $63.67 |
| 16007 |
16007-1111 |
SEAT-SPRING,THROTTLE Price: $5.83 |
| 16009 |
16009-1288 |
NEEDLE-JET,5J16-3 Price: $25.03 |
| 16012 |
16012-1056 |
CAP-STARTER PLUNGER Price: $15.45 |
| 16014 |
16014-1052 |
SCREW-PILOT AIR Price: $18.80 |
| 16016 |
16016-1056 |
PLUNGER,STARTER Price: $42.89 |
| 16017 |
16017-1244 |
JET-NEEDLE,0-2 Price: $45.79 |
| 16021 |
16021-1111 |
SCREW-THROTTLE STOP Price: $17.56 |
| 16025 |
16025-1117 |
VALVE-THROTTLE,CA3.5 Price: $142.37 |
| 16030 |
16030-1062 |
VALVE-FLOAT,#1.6 Price: $55.23 |
| 16031 |
16031-1055 |
FLOAT Price: $53.59 |
| 16065 |
16065-1109 |
HOLDER-CARBURETOR Price: $30.86 |
| 16073 |
16073-1053 |
INSULATOR Price: $10.56 |
| 49006 |
49006-1203 |
BOOT,STARTER PLUNGER This part replaces 49006-1164. Price: $14.10 |
| 92015 |
92015-1575 |
NUT,CABLE ADJUST LOCK Price: $6.54 |
| 92022 |
92022-1024 |
WASHER,THROTTLE VALVE Price: $6.61 |
| 92022A |
92022-1187 |
WASHER,ADJUST SCREW Price: $6.22 |
| 92022B |
92022-1530 |
WASHER,NEEDLE JET Price: $6.84 |
| 92033 |
92036-018 |
RING-SNAP Price: $3.89 |
| 92037 |
16008-010 |
CIRCLIP Price: $9.21 |
| 92037A |
92037-072 |
CLAMP-PIPE Price: $7.22 |
| 92037B |
92170-1438 |
CLAMP This part replaces 92037-1326. Price: $8.98 |
| 92043 |
16032-008 |
PIN,FLOAT This part replaces 16032-003. Price: $6.57 |
| 92055A |
92055-1252 |
RING-O,STARTER PLUNGER Price: $5.29 |
| 92055B |
92055-1256 |
RING-O,32MM Price: $13.08 |
| 92059 |
92059-1489 |
TUBE,5.3X10.5X120 Price: $17.72 |
| 92059A |
92059-1655 |
TUBE, 3X5X475 This part replaces 92059-1653. Price: $9.16 |
| 92059B |
92059-1491 |
TUBE,5X8X270 Price: $6.61 |
| 92063 |
92063-1110 |
JET-MAIN,#A112.5 This part replaces 92063-075. Price: $15.42 |
| 92063B |
92063-077 |
JET-MAIN NO 117.5R Price: $17.74 |
| 92064 |
92064-1114 |
JET-PILOT,#22.5 Price: $17.95 |
| 92064A |
92064-1121 |
JET-PILOT,#20 Price: $17.95 |
| 92066 |
92066-1171 |
PLUG,DRAIN Price: $15.74 |
| 92081 |
92081-1153 |
SPRING,STOP SCREW Price: $4.96 |
| 92081A |
92081-1690 |
SPRING,PILOT AIR SCREW Price: $6.16 |
| 92081B |
92081-1691 |
SPRING,THROTTLE VALVE Price: $14.10 |
| 92081C |
92081-1705 |
SPRING,STARTER PLUNGE Price: $7.22 |
