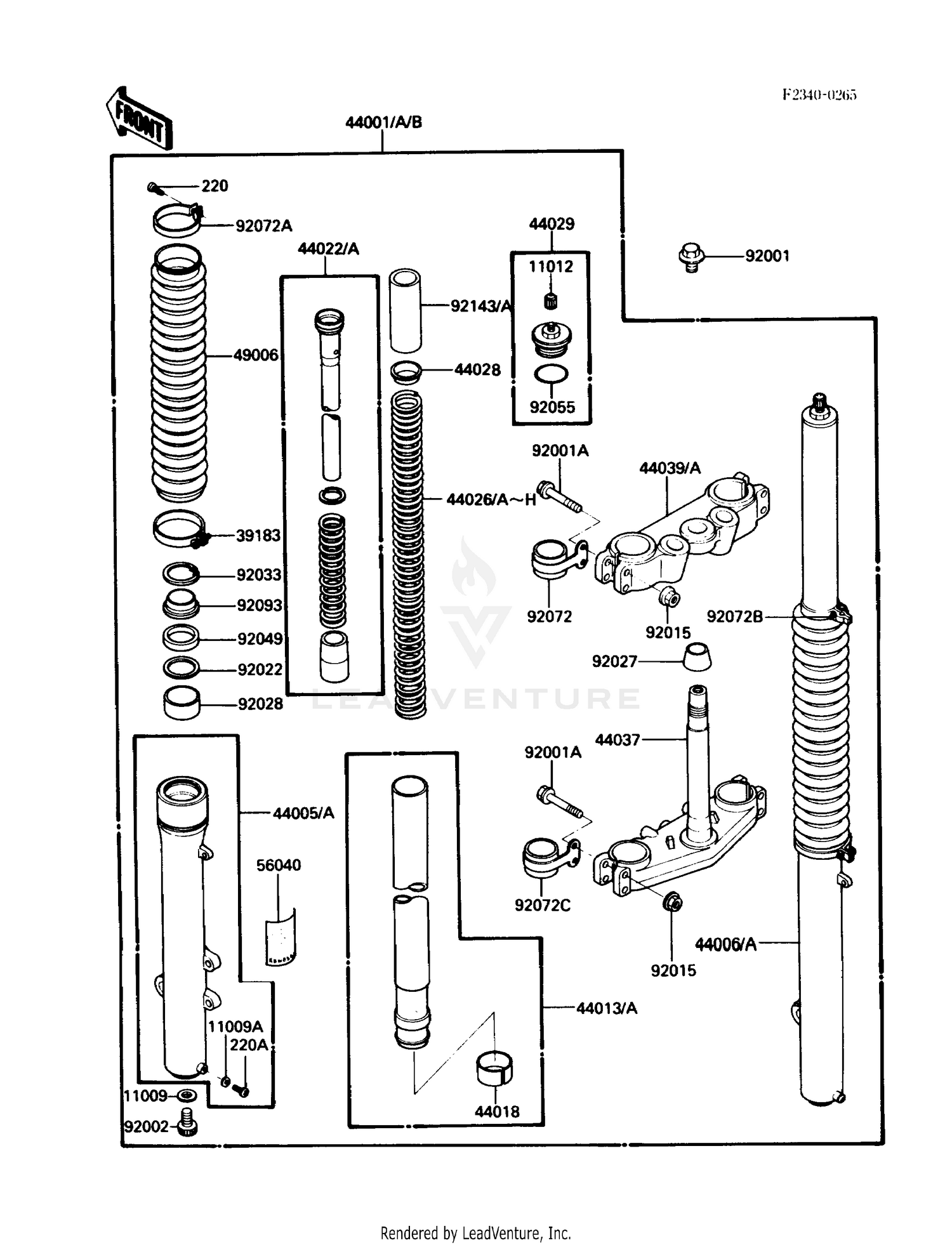

| Ref | Part Number | Description |
|---|
| 220 |
220B0316 |
SCREW-PAN-CROS Price: $0.79 |
| 11009 |
11009-1553 |
GASKET,FORK DRAIN PLUG Price: $5.17 |
| 11009A |
44045-002 |
GASKET,FORK DRAIN PLUG Price: $5.18 |
| 11012 |
11012-1391 |
CAP,VALVE AIR Price: $5.73 |
| 39183 |
39183-1051 |
BAND-ASSY,BOOT Price: $10.64 |
| 44001B |
44001-1682 |
FORK-FRONT Price: $1,279.65 |
| 44005A |
44005-1269 |
PIPE-LEFT FORK OUTER Price: $354.17 |
| 44006A |
44006-1266 |
PIPE-RIGHT FORK OUTER Price: $302.90 |
| 44013A |
44013-1252 |
PIPE-FORK INNER Price: $412.16 |
| 44018 |
44018-1005 |
PISTON-FORK Price: $41.55 |
| 44022A |
44022-1221 |
CYLINDER-FORK Price: $105.67 |
| 44026F |
44026-1382 |
SPRING-FRONT FORK Price: $77.18 |
| 44028 |
44028-1010 |
GUIDE-FORK SPRING Price: $11.30 |
| 44029 |
44029-1107 |
SEAT-FORK SPRING Price: $68.07 |
| 44037 |
44037-1193 |
HOLDER-FORK UNDER Price: $381.19 |
| 44039A |
44039-1145 |
HOLDER-FORK UPPER This part replaces 44039-1148. Price: $201.62 |
| 49006 |
49006-1184-BC |
BOOT,FORK,BLUE This part replaces 49006-1184. Price: $81.31 |
| 56040 |
56040-1120 |
LABEL,FRONT FORK Price: $6.10 |
| 92001 |
92001-1520 |
BOLT Price: $19.67 |
| 92001A |
92001-1639 |
BOLT Price: $8.05 |
| 92002 |
92002-1650 |
BOLT,FORK DRAIN Price: $14.64 |
| 92015 |
92015-1485 |
NUT,FLANGED,8MM Price: $5.38 |
| 92022 |
92022-1299 |
WASHER Price: $8.58 |
| 92027 |
92027-1427 |
COLLAR,FRONT FORK This part replaces 92027-1421. Price: $78.19 |
| 92028 |
92028-1581 |
BUSHING This part replaces 92028-1145. Price: $21.80 |
| 92033 |
92033-1077 |
RING-SNAP Price: $4.96 |
| 92049 |
92049-1295 |
SEAL-OIL,FORK OUTER T This part replaces 92049-1104. Price: $22.14 |
| 92055 |
92055-1123 |
RING-O Price: $6.22 |
| 92072 |
92072-1040 |
CLAMP,CABLE Price: $22.79 |
| 92072A |
92072-1078 |
BAND Price: $11.16 |
| 92072B |
92072-1201 |
BAND,BOOT Price: $13.72 |
| 92072C |
92072-1205 |
BAND,CABLE Price: $18.75 |
| 92093 |
92093-1086 |
SEAL,FORK DUST Price: $19.48 |
| 92143A |
92143-1071 |
COLLAR Price: $7.13 |
