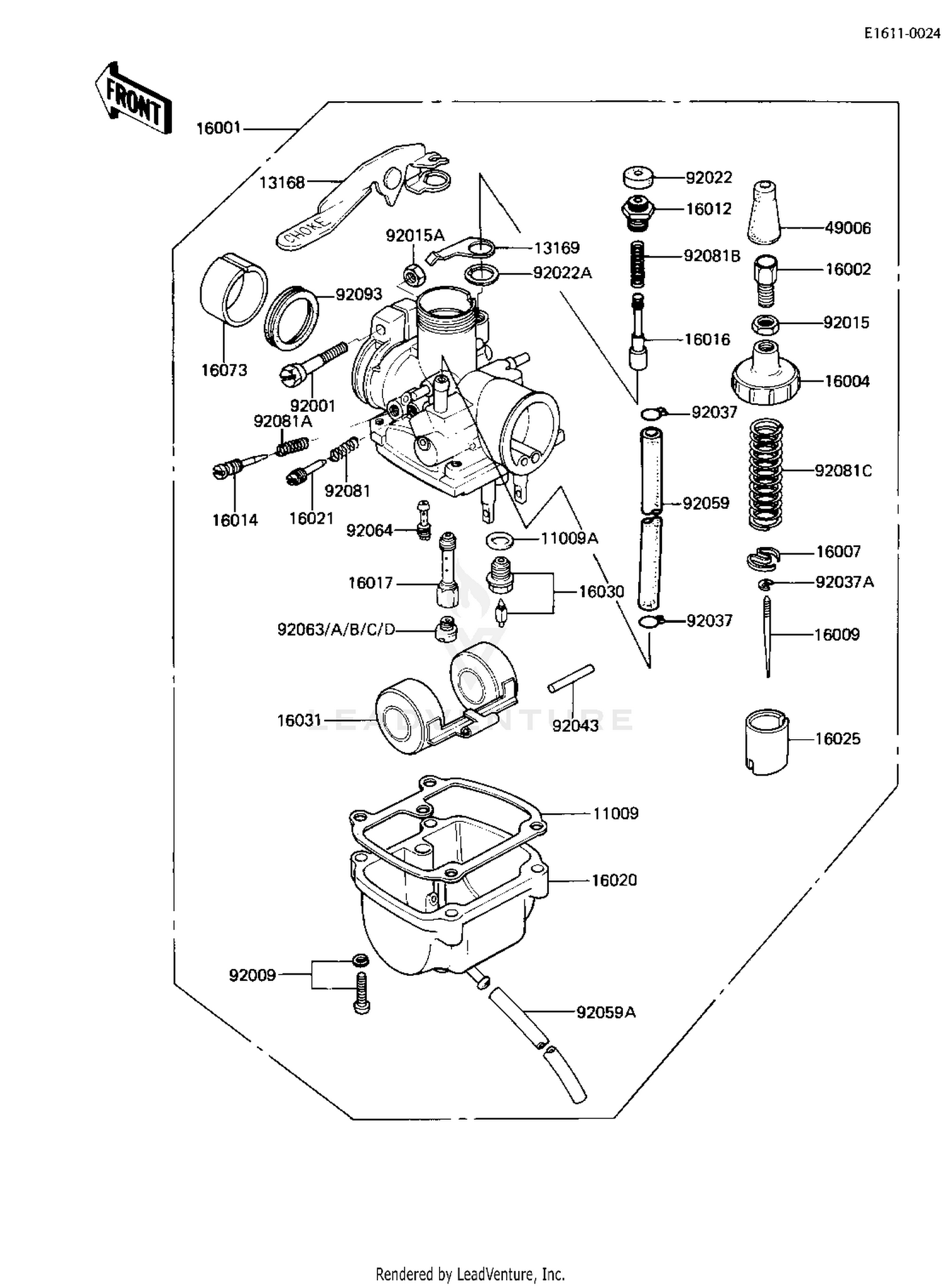

| Ref | Part Number | Description |
|---|
| 11009 |
16019-011 |
GASKET Price: $16.51 |
| 11009A |
16029-002 |
WASHER VALVE SEAT Price: $4.46 |
| 13168 |
13168-1347 |
LEVER,STARTER Price: $23.41 |
| 13169 |
13169-1437 |
PLATE,STARTER PLUNGER Price: $8.39 |
| 16001 |
16001-1340 |
CARBURETOR Price: $208.99 |
| 16002 |
16002-1008 |
ADJUSTER-CABLE Price: $9.59 |
| 16004 |
16004-1011 |
CAP-CHAMBER Price: $44.92 |
| 16007 |
16007-1043 |
SEAT-SPRING Price: $4.36 |
| 16009 |
16009-1092 |
NEEDLE-JET,3I7-3 Price: $29.16 |
| 16012 |
16012-016 |
CAP,PLUNGER Price: $9.66 |
| 16014 |
16014-1030 |
SCREW-PILOT AIR Price: $14.60 |
| 16016 |
16016-1002 |
PLUNGER,STARTER Price: $33.83 |
| 16017 |
16017-1089 |
JET-NEEDLE,D-8 Price: $34.03 |
| 16020 |
16020-1001 |
CHAMBER-FLOAT Price: $58.06 |
| 16021 |
16021-1036 |
SCREW-THROTTLE STOP Price: $14.63 |
| 16025 |
16025-1059 |
VALVE-THROTTLE,CA2.0 Price: $90.19 |
| 16030 |
16030-1075 |
VALVE-FLOAT,#1.8 This part replaces 16030-1017. Price: $41.94 |
| 16031 |
16031-1014 |
FLOAT Price: $48.35 |
| 16073 |
16073-1011 |
INSULATOR Price: $12.83 |
| 49006 |
16036-007 |
CAP,CARBURETOR Price: $17.80 |
| 92001 |
92001-1476 |
BOLT,CARBURETOR CLAMP Price: $5.33 |
| 92009 |
223AA0418 |
SCREW-PAN-WS-CROS This part replaces 16033-012. Price: $1.88 |
| 92015 |
16003-006 |
NUT,ADJUST LOCK Price: $7.34 |
| 92015A |
92015-1154 |
NUT Price: $4.22 |
| 92022 |
16039-015 |
CAP,RUBBER,STARTER PLUNGE Price: $6.88 |
| 92022A |
92022-1271 |
WASHER Price: $4.54 |
| 92037 |
92037-072 |
CLAMP-PIPE Price: $7.22 |
| 92037A |
92037-1272 |
CLAMP Price: $4.53 |
| 92043 |
16032-008 |
PIN,FLOAT This part replaces 16032-003. Price: $6.57 |
| 92059 |
92059-1023 |
HOSE,FUEL TAP DIAPHRA Price: $16.60 |
| 92059A |
92059-1655 |
TUBE, 3X5X475 This part replaces 92059-1308. Price: $9.16 |
| 92063 |
92063-1110 |
JET-MAIN,#A112.5 This part replaces 92063-075. Price: $15.42 |
| 92063A |
92063-1109 |
MAIN JET,A115 This part replaces 92063-076. Price: $15.42 |
| 92063B |
92063-077 |
JET-MAIN NO 117.5R Price: $17.74 |
| 92063C |
92063-1106 |
JET-MAIN,#A120 This part replaces 92063-078. Price: $18.50 |
| 92063D |
92063-1033 |
MAIN JET,#A100 Price: $26.79 |
| 92064 |
92064-020 |
PILOT JET #17.5 ISO Price: $19.96 |
| 92081 |
16022-007 |
SPRING,PILOT AIR SCREW Price: $8.13 |
| 92081A |
92081-1153 |
SPRING,STOP SCREW Price: $4.96 |
| 92081B |
92081-1398 |
SPRING Price: $5.70 |
| 92081C |
92081-1399 |
SPRING,THROTTLE VALVE Price: $9.03 |
