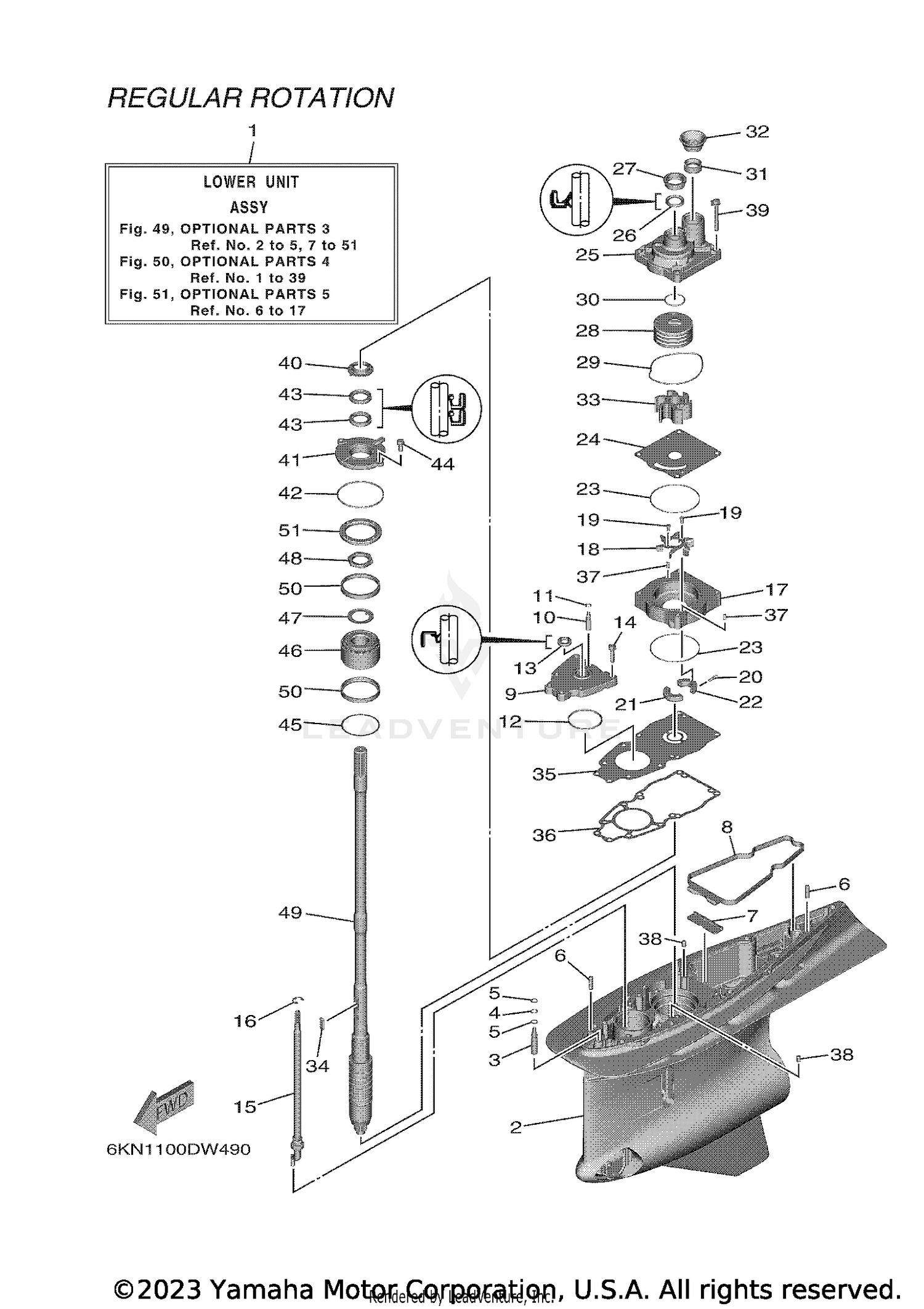

| Ref | Part Number | Description |
|---|
| 3 |
6GR-45308-00-00 |
VALVE ASSY 1 Price: $75.90 |
| 4 |
93210-10010-00 |
O-RING Price: $2.05 |
| 5 |
6GR-43873-00-00 |
RING, BACK UP Price: $2.25 |
| 6 |
99480-08030-00 |
PIN Price: $62.70 |
| 7 |
6GR-45376-00-00 |
GUIDE, SEAL DAMPER Price: $6.15 |
| 8 |
6GR-45375-01-00 |
DAMPER, SEAL Price: $15.55 |
| 9 |
6GR-45321-00-00 |
PLATE Price: $157.65 |
| 10 |
6GR-45309-00-00 |
VALVE ASSY 2 Price: $69.15 |
| 11 |
93210-07100-00 |
O-RING Price: $7.49 |
| 12 |
93210-65752-00 |
O-RING This part replaces 93210-64488-00. Price: $23.99 |
| 13 |
93106-14001-00 |
OIL SEAL Price: $12.85 |
| 14 |
97E95-08535-00 |
BOLT, HEXAGON W/W Price: $1.85 |
| 16 |
99001-12600-00 |
CIRCLIP, E-TYPE This part replaces 99002-12600-00. Price: $6.20 |
| 17 |
6GR-44341-00-00 |
HOUSING, WATER PUMP Price: $46.10 |
| 18 |
6GR-12451-00-00 |
IMPELLER, WATER PUMP Price: $59.90 |
| 19 |
97095-05010-00 |
BOLT Price: $1.95 |
| 20 |
91380-05016-00 |
BOLT Price: $0.80 |
| 21 |
6GR-44381-00-00 |
SPACER 1 Price: $55.80 |
| 22 |
6GR-44382-00-00 |
SPACER 2 Price: $39.55 |
| 23 |
93210-97690-00 |
O-RING Price: $14.49 |
| 24 |
6GR-44323-00-00 |
OUTER PLATE, CARTRID Price: $19.45 |
| 25 |
6GR-44311-00-00 |
HOUSING, WATER PUMP Price: $46.70 |
| 26 |
93109-26001-00 |
OIL SEAL Price: $19.50 |
| 27 |
6GR-44312-00-00 |
COVER, WATER PUMP HO Price: $5.35 |
| 28 |
6GR-44322-00-00 |
INSERT, CARTRIDGE Price: $110.85 |
| 29 |
93211-08001-00 |
O-RING Price: $4.40 |
| 30 |
93210-37M67-00 |
O-RING This part replaces 93210-37160-00. Price: $3.80 |
| 32 |
6GR-44379-00-00 |
GUIDE, WATER TUBE Price: $5.05 |
| 33 |
6GR-44352-00-00 |
IMPELLER Price: $51.20 |
| 34 |
6AW-44336-00-00 |
KEY Price: $31.55 |
| 35 |
6GR-44328-00-00 |
PLATE Price: $27.25 |
| 36 |
6GR-44315-00-00 |
GASKET, WATER PUMP Price: $16.70 |
| 37 |
93606-12019-00 |
PIN, DOWEL Price: $4.60 |
| 38 |
93608-12M05-00 |
PIN, DOWEL Price: $10.40 |
| 39 |
90119-08196-00 |
BOLT, WITH WASHER Price: $6.00 |
| 40 |
6GR-45344-00-00 |
COVER, OIL SEAL Price: $17.90 |
| 41 |
6GR-45335-00-00 |
HOUSING, OIL SEAL Price: $98.10 |
| 42 |
93210-89535-00 |
O-RING (70E) Price: $5.45 |
| 43 |
93101-30037-00 |
OIL SEAL Price: $25.50 |
| 44 |
97E95-08520-00 |
BOLT, HEXAGON W/W Price: $1.50 |
| 46 |
93399-99967-00 |
BEARING Price: $207.95 |
| 47 |
90214-35M07-00 |
WASHER, CLAW(6U4) Price: $4.20 |
| 48 |
90170-35M34-00 |
NUT(6U4) Price: $24.45 |
| 50 |
6GR-45539-00-00 |
SPACER 2 Price: $35.10 |
