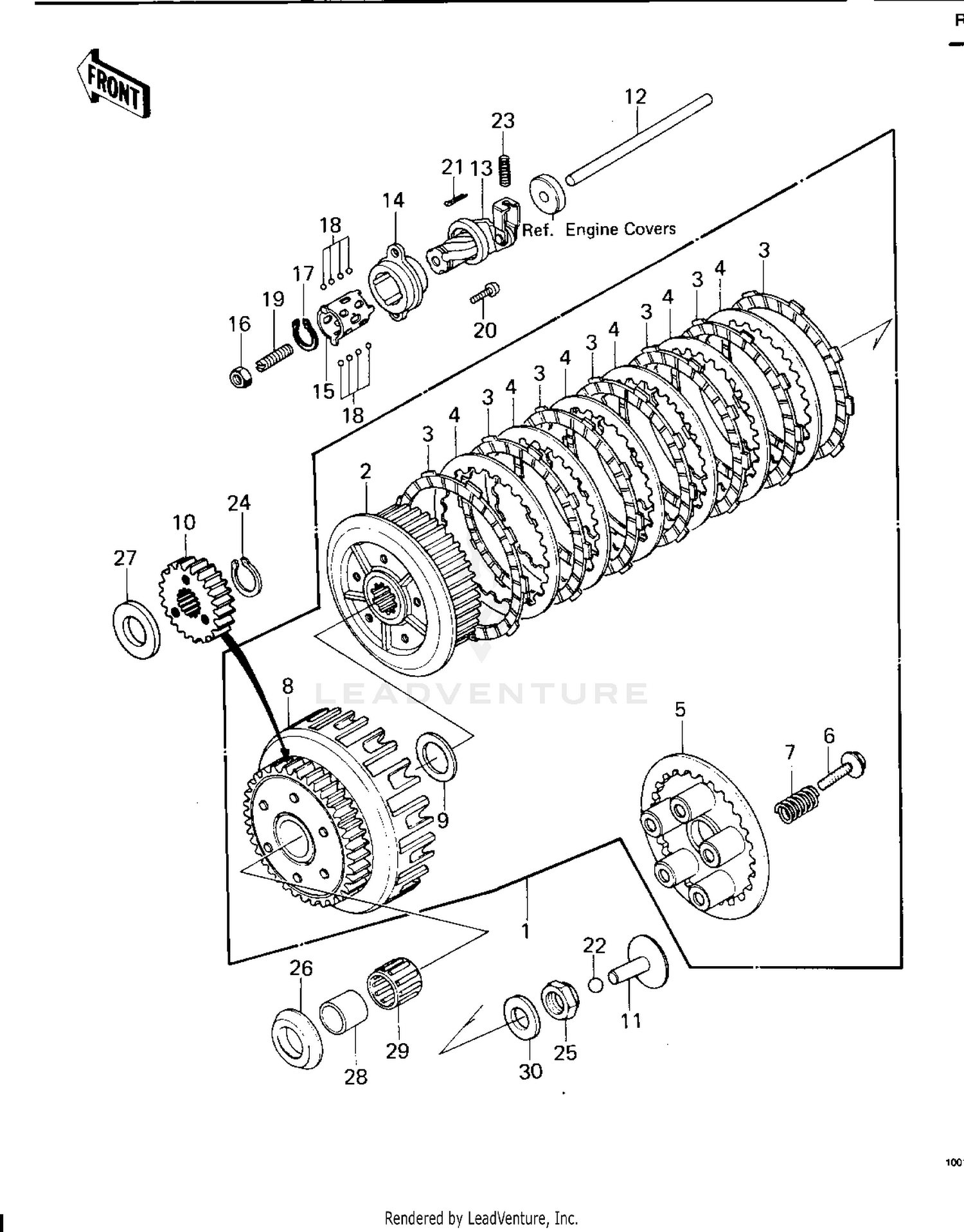

| Ref | Part Number | Description |
|---|
| 2 |
13087-043 |
HUB,CLUTCH Price: $154.96 |
| 3 |
13088-030 |
PLATE,CLUTCH FRICTION Price: $26.17 |
| 4 |
13089-022 |
PLATE,CLUTCH STEEL Price: $19.11 |
| 5 |
13187-006 |
PLATE,CLUTCH SPRING Price: $70.30 |
| 6 |
92001-1066 |
BOLT,FLANGED,6X18 Price: $6.22 |
| 7 |
92081-1033 |
SPRING,CLUTCH Price: $7.38 |
| 9 |
92026-022 |
SPACER,25.5X47X2.5 Price: $9.91 |
| 10 |
13097-1345 |
GEAR,SECONDARY SHAFT, This part replaces 13121-037. Price: $128.82 |
| 11 |
13116-022 |
PUSHER,CLUTCH SPRG PL Price: $26.40 |
| 13 |
13102-027 |
INNER,CLUTCH RELEASE Price: $50.19 |
| 14 |
13118-011 |
OUTER,CLUTCH RELEASE Price: $23.27 |
| 15 |
13197-004 |
RETAINER Price: $1.17 |
| 16 |
318AA0800 |
NUT-HEX-SMALL,8MM This part replaces 318B0800. Price: $0.59 |
| 17 |
480J1500 |
CIRCLIP-TYPE-C,15MM Price: $2.31 |
| 18 |
600A0400 |
BALL,STEEL,1/8" Price: $1.96 |
| 19 |
92014-014 |
SCREW,SLOTTED,8X25 Price: $6.35 |
| 20 |
220AA0616 |
SCREW-PAN-CROS,6X16 This part replaces 220B0616. Price: $3.04 |
| 21 |
550AA1615 |
PIN-COTTER,1.6X15 This part replaces 550D1615. Price: $2.51 |
| 23 |
92081-069 |
SPRING-CLUTCH RELEASE Price: $7.51 |
| 24 |
480J2200 |
CIRCLIP-TYPE-C,22MM Price: $5.00 |
| 25 |
92015-1555 |
NUT,20MM Price: $13.08 |
| 26 |
92026-116 |
SPACER,THRUST,T=5.5 Price: $17.60 |
| 27 |
92027-263 |
COLLAR,T=5MM Price: $6.15 |
| 28 |
92028-178 |
BUSHING,25X32X23.6 Price: $25.03 |
| 29 |
92046-028 |
BEARING-NEEDLE,KTV323723 Price: $21.24 |
