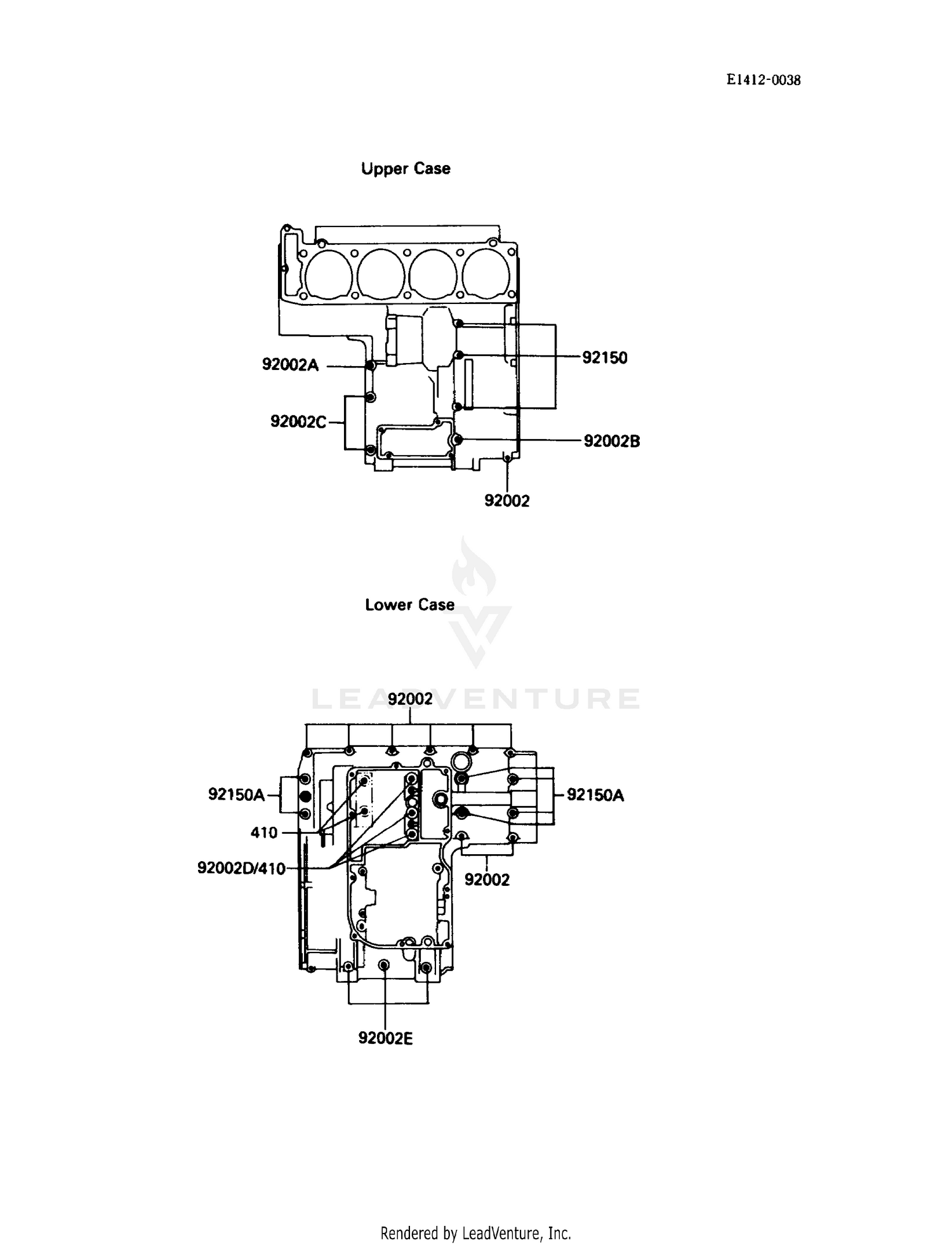

CRANKCASE BOLT PATTERN
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 410 | 410AA0800 | WASHER-PLAIN-SMALL,8MM This part replaces 410B0800. Price: $0.96 |
| 92002 | 92001-1899 | BOLT,6X38 Price: $4.39 |
| 92002A | 92002-1054 | BOLT,6X55 Price: $5.24 |
| 92002B | 92002-1306 | BOLT,6X85 Price: $5.59 |
| 92002C | 92002-1308 | BOLT,8X63 Price: $8.66 |
| 92002D | 92150-1164 | BOLT,8X140 This part replaces 92002-1402. Price: $11.39 |
| 92002E | 92002-1654 | BOLT,6X120 Price: $6.63 |
| 92150 | 92150-1140 | BOLT,6X115 Price: $7.22 |
